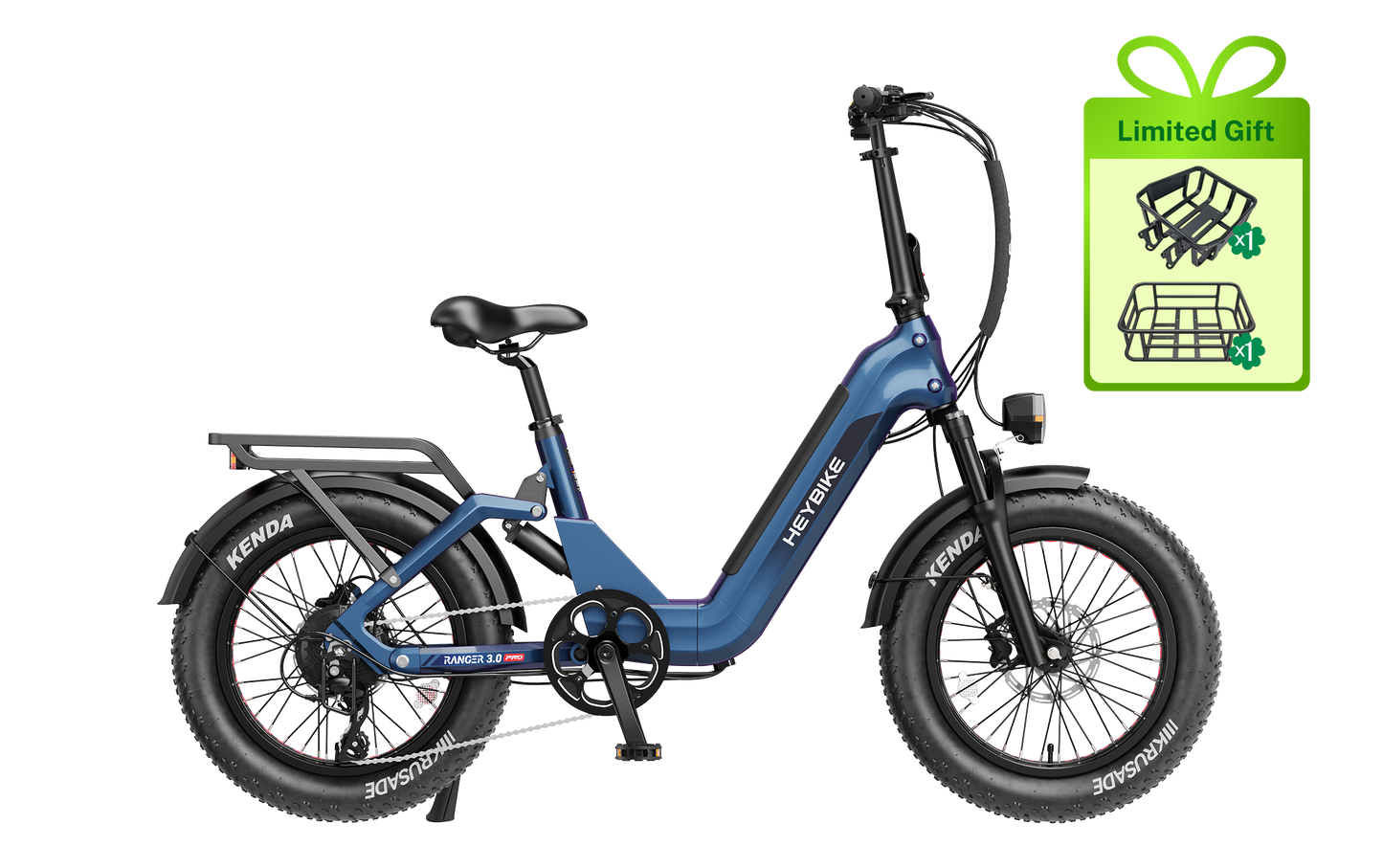

Product Overview

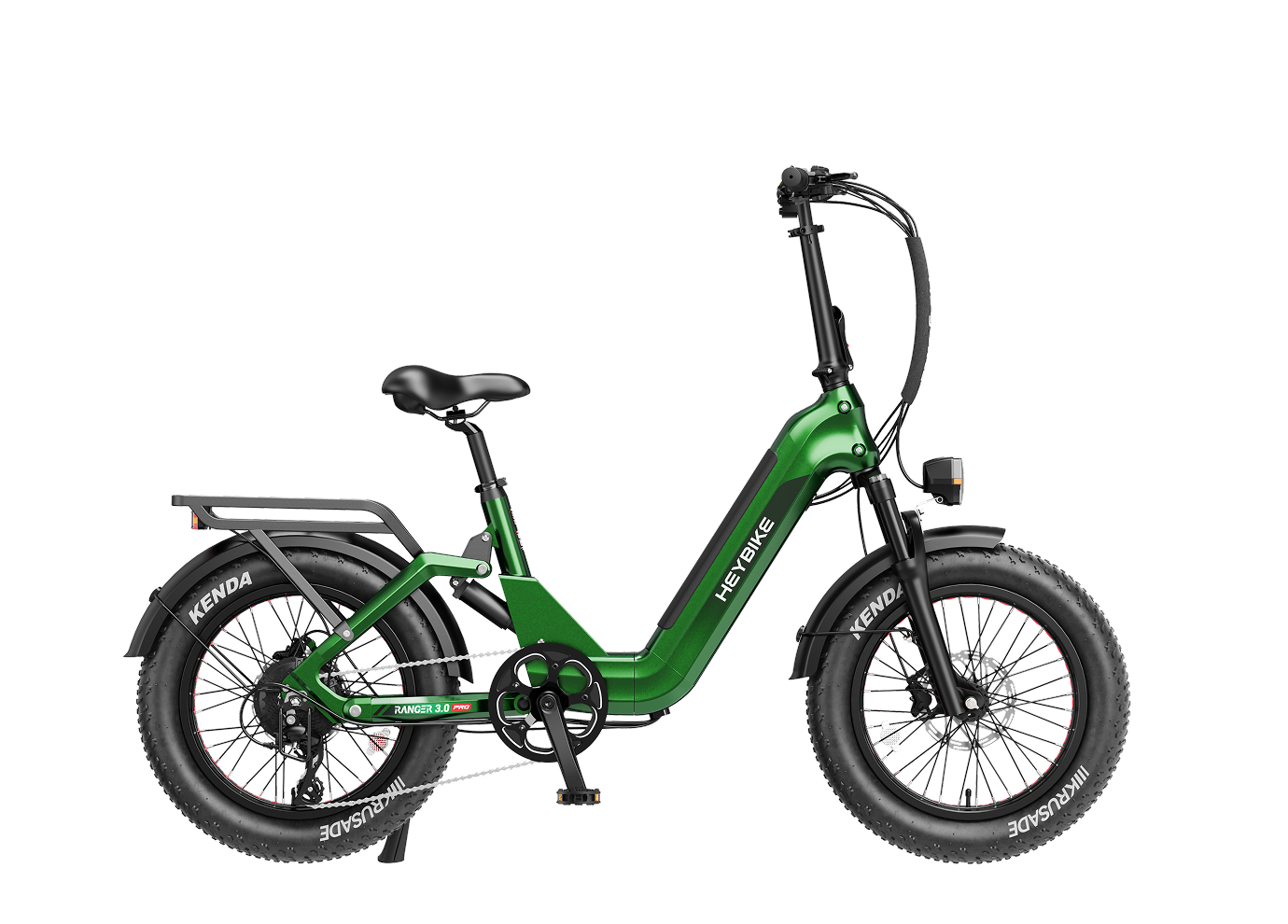

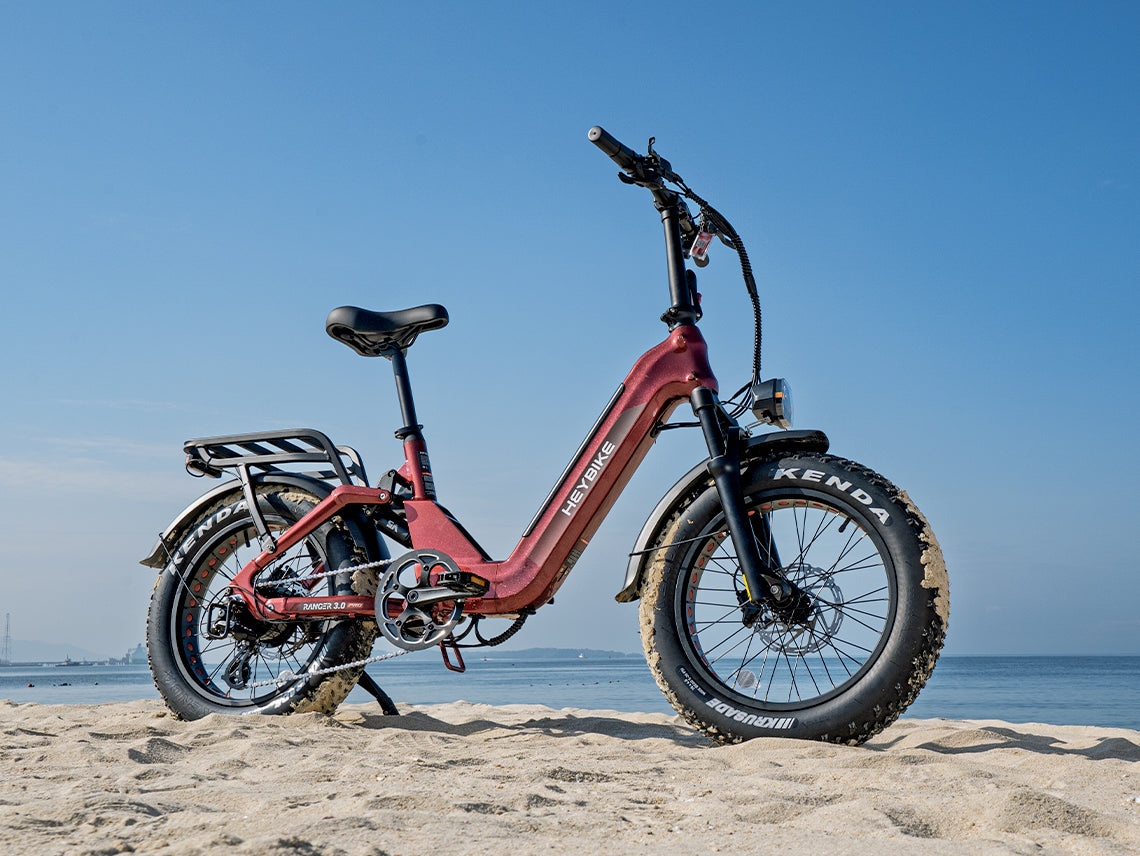

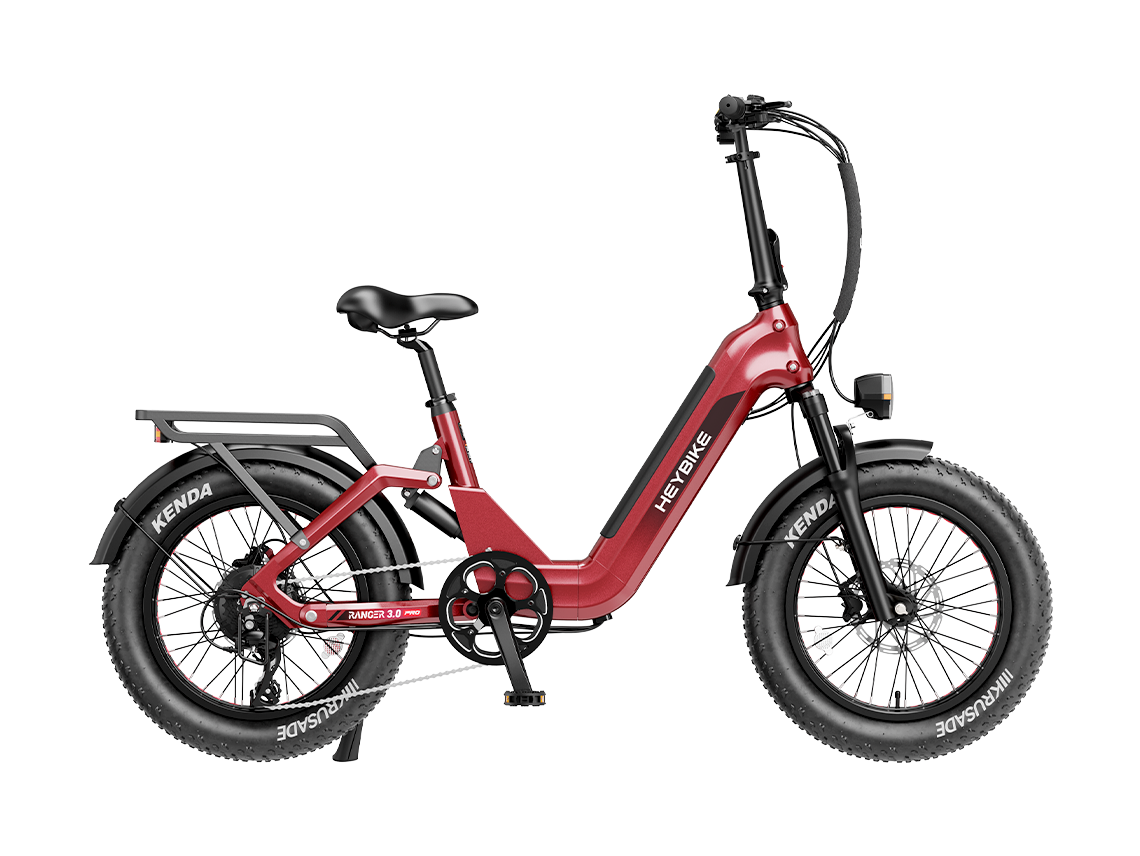

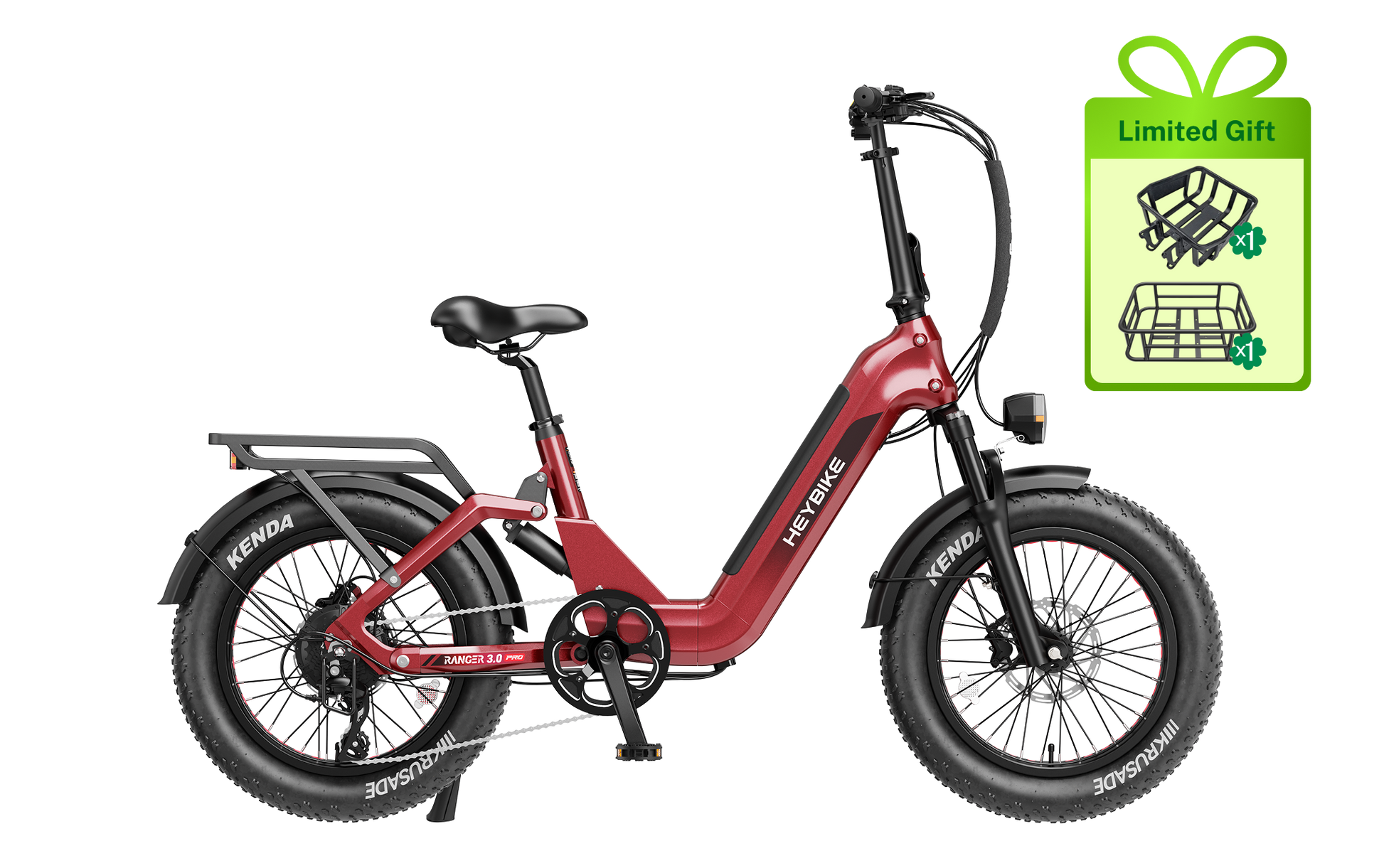

The Heybike Ranger 3.0 Pro is a folding step-thru fat tire electric bike built for comfort, range, and everyday utility. It combines a 750W rear hub motor, 1400W peak output, 80 N·m torque, a 720Wh battery, full suspension, and 20" × 4.0" Kenda fat tires.
Ranger 3.0 Pro is configured as a Class 2 e-bike by default and can be adjusted to Class 1 or Class 3 settings through the display or Heybike app. Heybike lists the top speed as 28 MPH.
Key Features

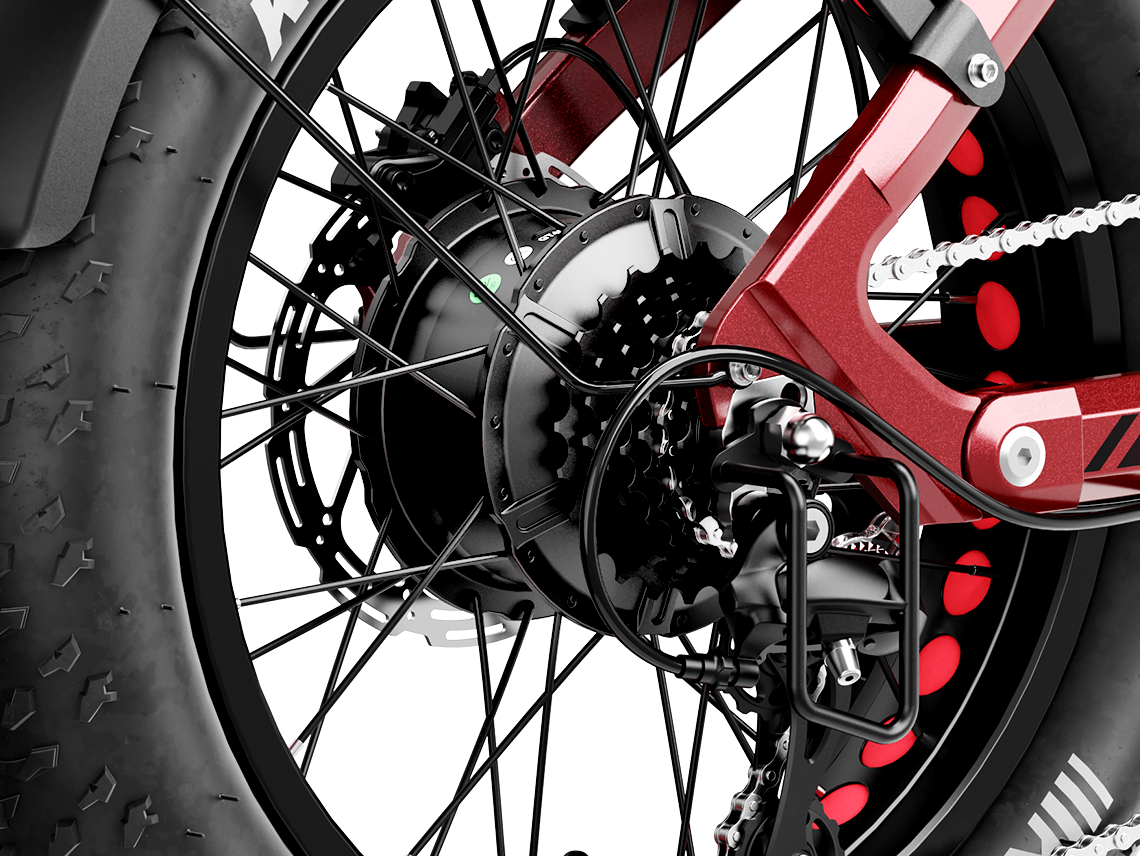

- 750W sustained rear hub motor with 1400W peak output
- 80 N·m torque
- Top Speed 28 MPH
- Torque sensor for smoother pedal assist
- 720Wh battery
- Up to 90 miles of range, depending on rider weight, terrain, speed, temperature, assist level, and riding conditions
- Full suspension system

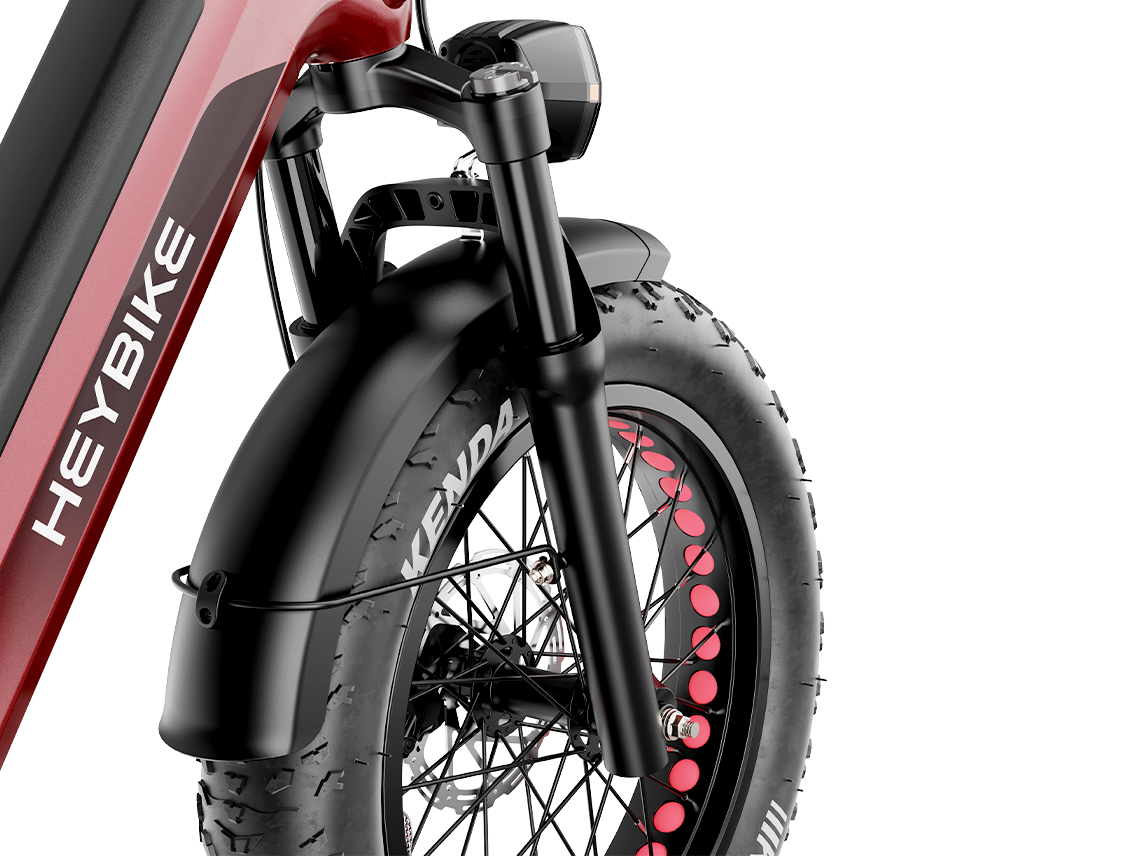

- Hydraulic front suspension fork with 65 mm travel
- Rear adjustable air shock, up to 174 PSI
- 20" × 4.0" Kenda puncture-protection fat tires

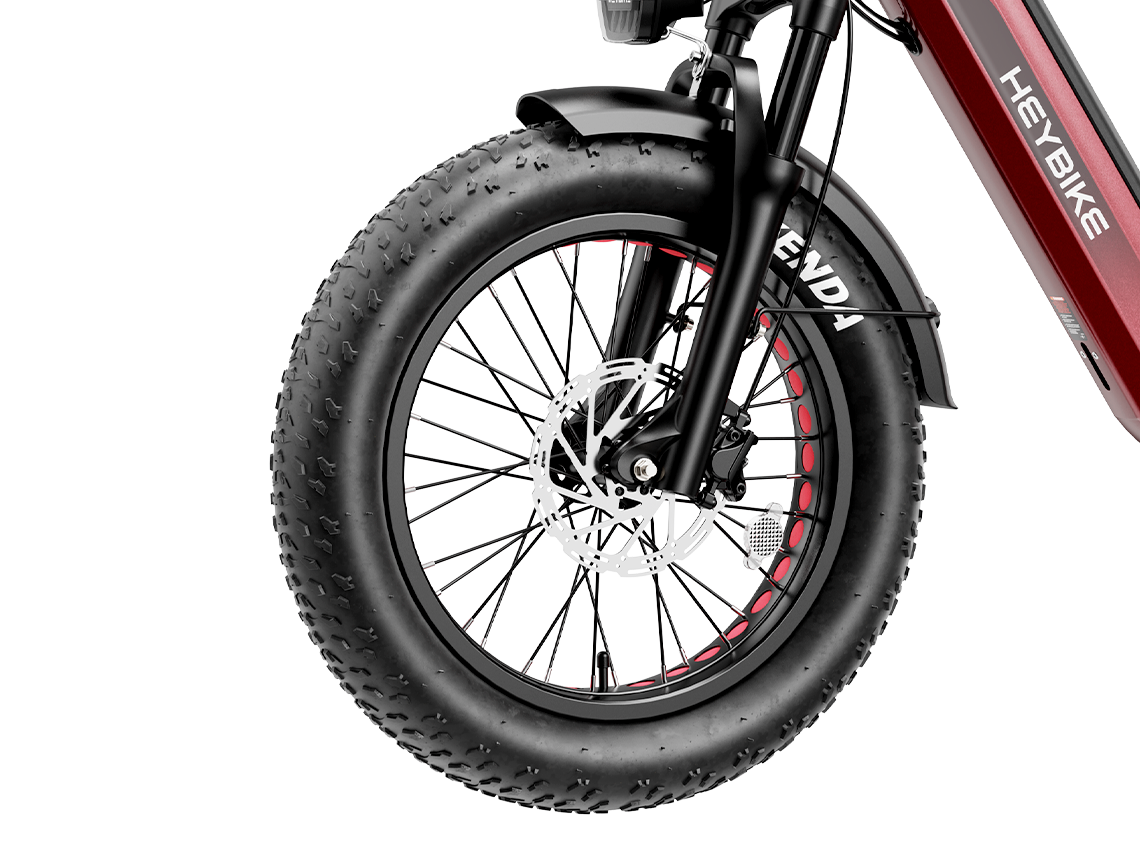

- 2.3 mm hydraulic disc brakes

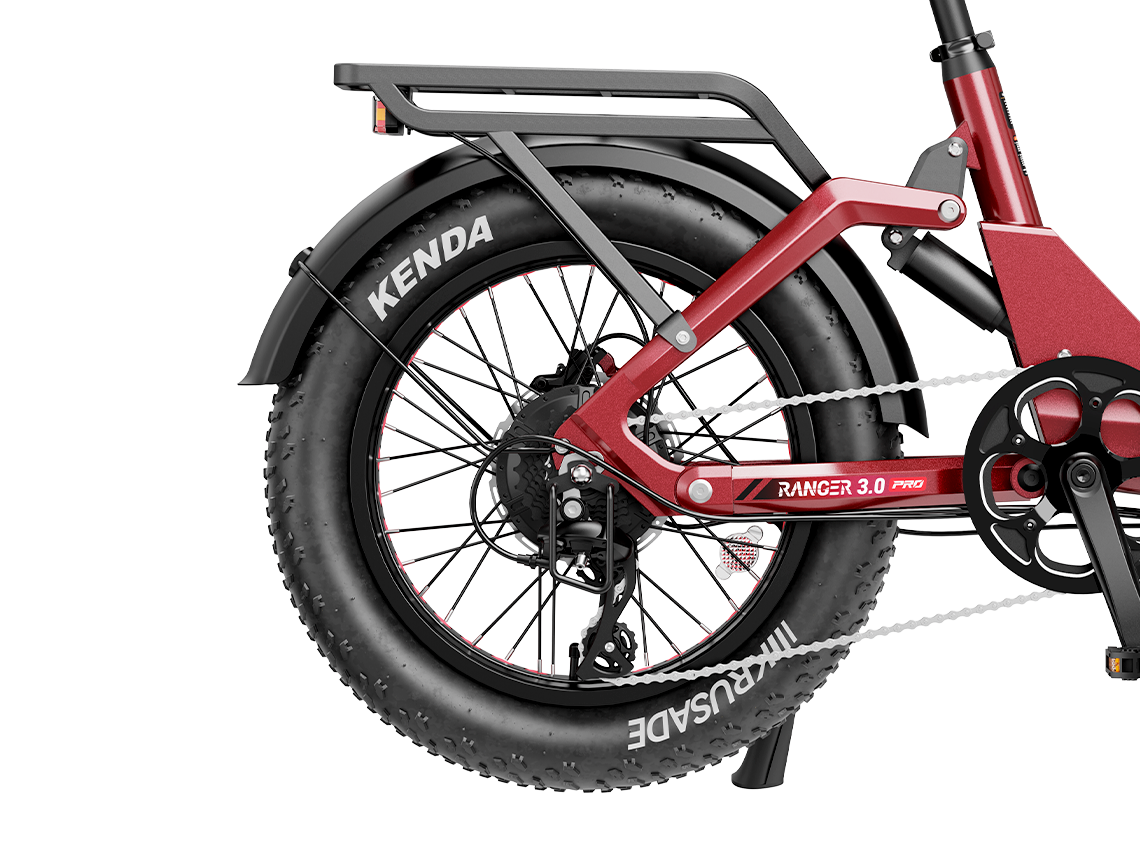

- Shimano Altus 8-speed rear derailleur

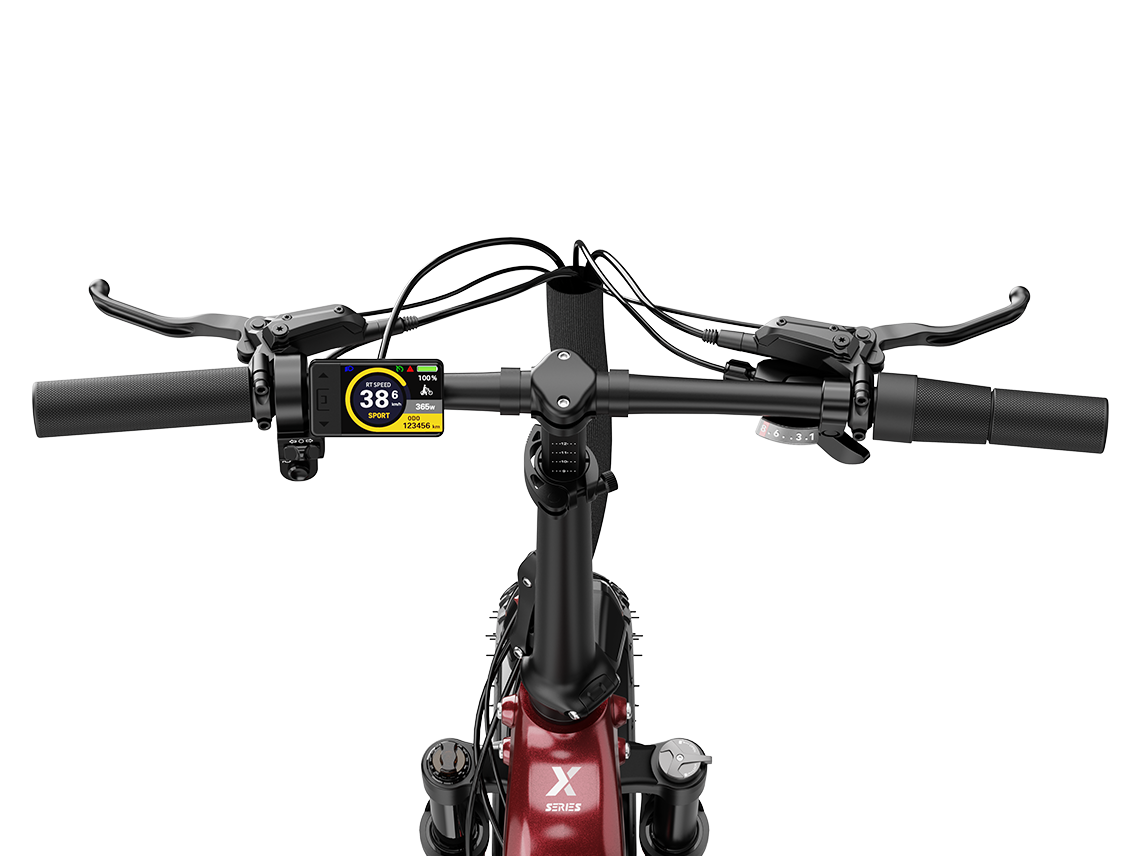

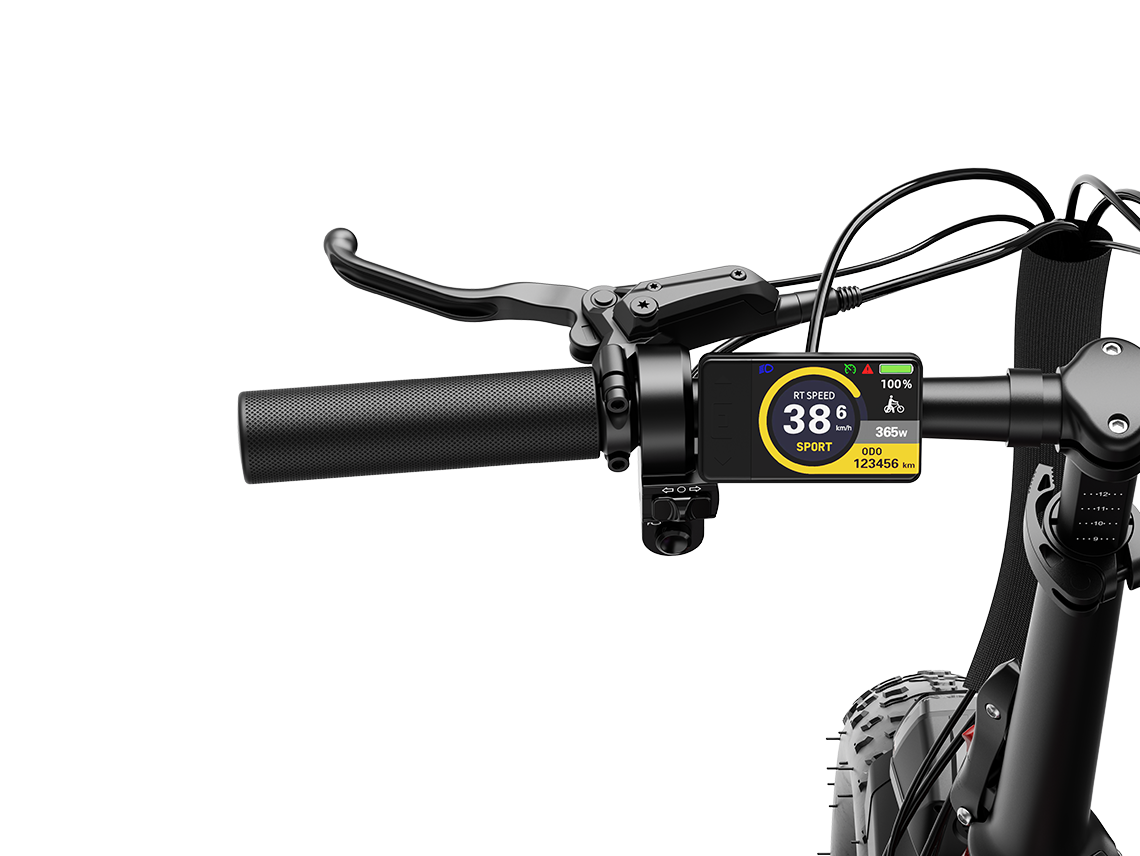

- TFT display with NFC start-up
- Half-twist throttle

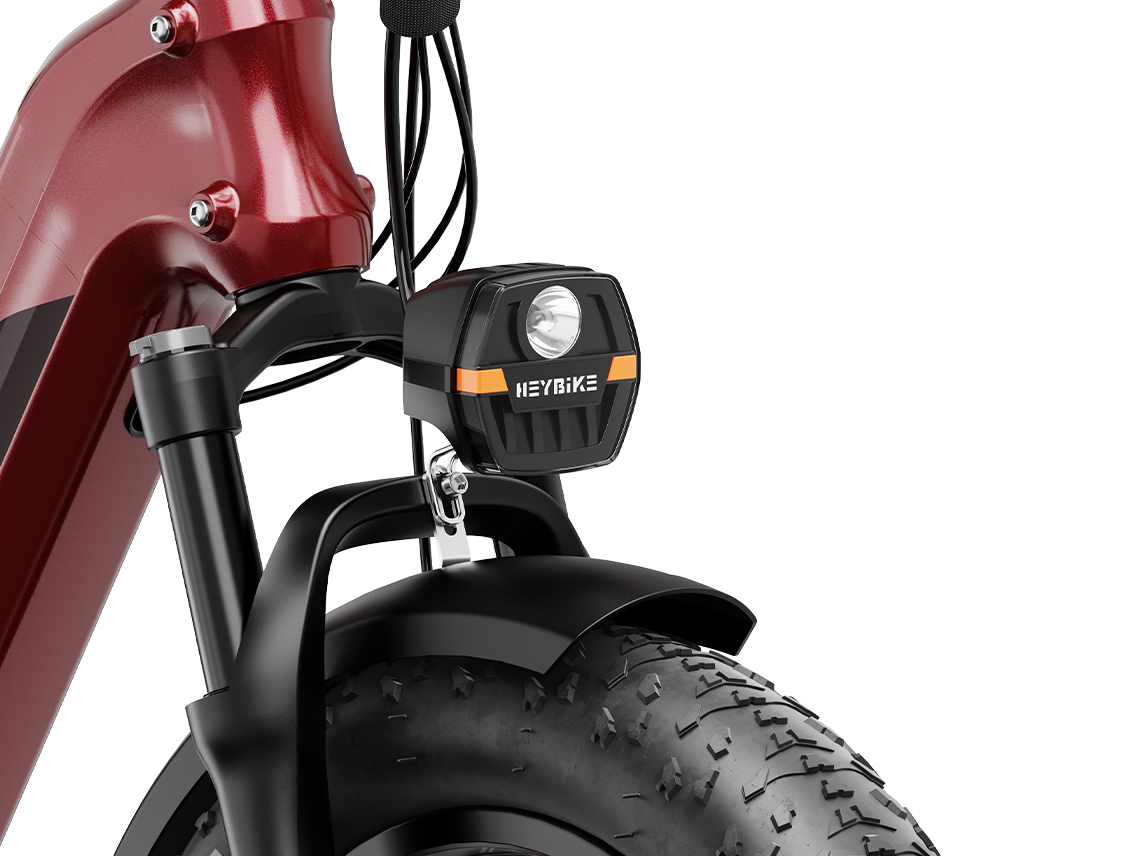

- Front light with horn
- Taillight with brake and turn signals

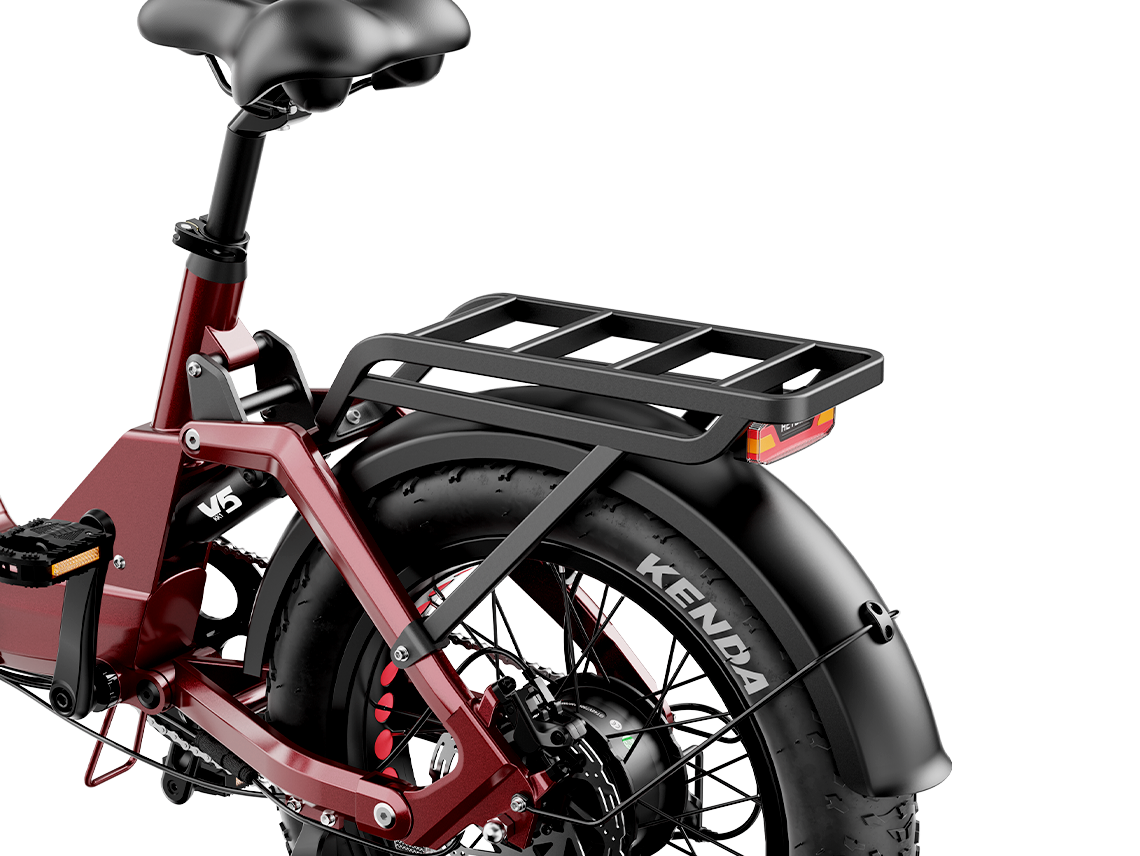

- Rear rack and fenders included
- Rear rack rated up to 100 lb
- 440 lb total payload capacity
Best For / Intended Use
The Heybike Ranger 3.0 Pro is best for riders who want a folding electric bike with easier step-thru access, long-range capability, full suspension comfort, and cargo-friendly utility.
It is suitable for commuting, errands, recreational riding, campground use, paved paths, and mixed-surface riding where permitted. Always check local e-bike laws before changing class or speed settings.
What Is Included
- Heybike Ranger 3.0 Pro electric bike × 1
- Charger × 1
- User manual / manual card
- Key × 1 set
- Rear rack
- Fenders
Technical Specifications
-
Motor: 750W sustained rear hub motor
-
Peak Output: 1400W
-
Torque: 80 N·m
-
Top Speed: 28 MPH
-
Battery: 720Wh
-
Range: Up to 90 miles
-
Charging Time: 6–8 hours for a full charge
-
Charger: 2A, 54.6V output, 100V–220V AC input
-
Frame: Hydroformed 6061 aluminum alloy folding step-thru frame
-
Suspension: Full suspension
-
Front Suspension: Hydraulic suspension fork, 65 mm travel
-
Rear Suspension: Adjustable air shock, up to 174 PSI
-
Brakes: Hydraulic disc brakes
-
Tires: Kenda 20" × 4.0" puncture-protection fat tires
-
Spokes: Aluminum alloy
-
Rear Derailleur: Shimano Altus 8-speed
-
Throttle: Half-twist
-
Display: TFT display with NFC start-up
-
Lighting: Front light with horn; taillight with brake and turn signals
-
Kickstand: Alloy
-
Bike Weight: 34 kg / 75 lb
-
Total Payload Capacity: 440 lb
-
Rear Rack Capacity: 100 lb
-

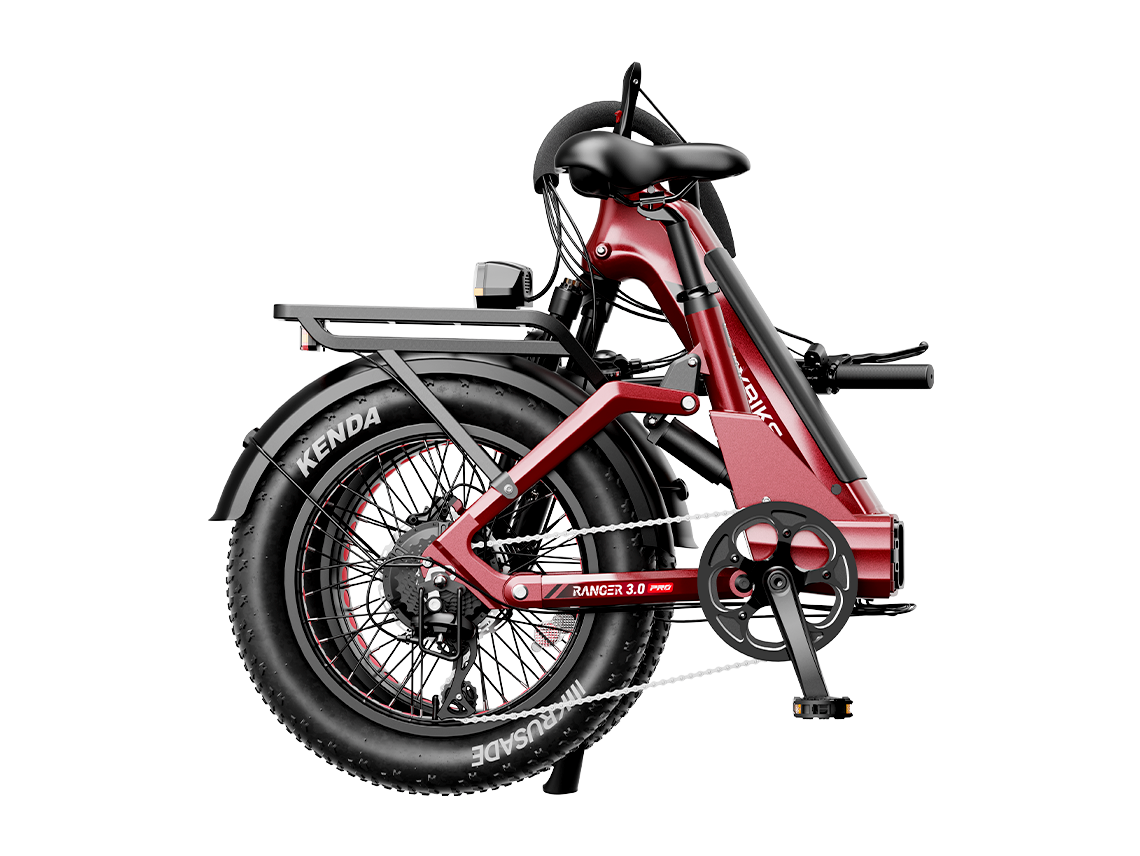

Folded Dimensions: 41.7" × 20.5" × 32.7"
-
Unfolded Dimensions: 69.7" × 25.6" × 52.0"

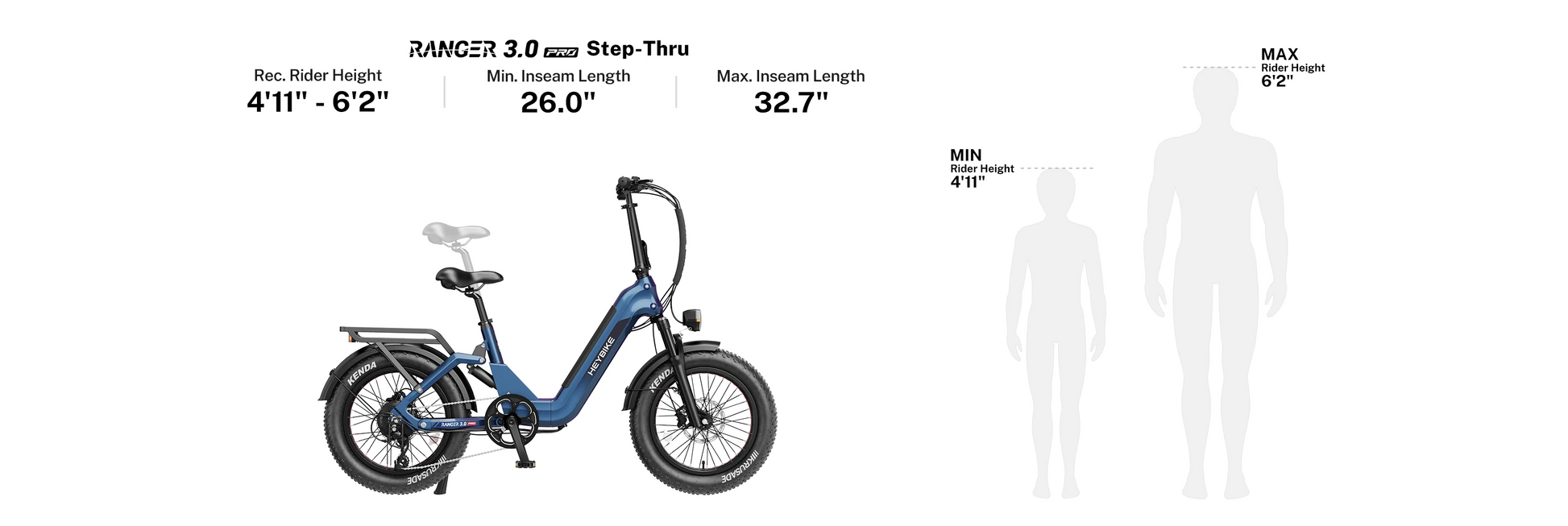

Setup, Fit, and Compatibility
-
Recommended Rider Height: 4'11"–6'2"
-
Minimum Inseam Length: 26.0"
-
Maximum Inseam Length: 32.7"
-
Frame Style: Folding step-thru frame
The Ranger 3.0 Pro is configured as Class 2 by default. Heybike states it can be changed to Class 1 or Class 3 using the display settings or Heybike app. Class 3 setup requires disabling the throttle and setting the top speed to 28 MPH.
Shipping & Delivery
This item ships directly from our fulfillment partner or manufacturer.
Freight charges are calculated at checkout.
Estimated Delivery:
• Processing: 1–2 business days
• Delivery: 5–10 business days depending on location
Oversized or high-value items may require additional handling or scheduled delivery.
Tracking information will be provided once your order ships.
See our Shipping Policy for full details.
Warranty and Returns
Warranty and return coverage follow RoboSmartDepot’s published store policies and the applicable manufacturer terms.
Safety, Compliance, and Important Notes

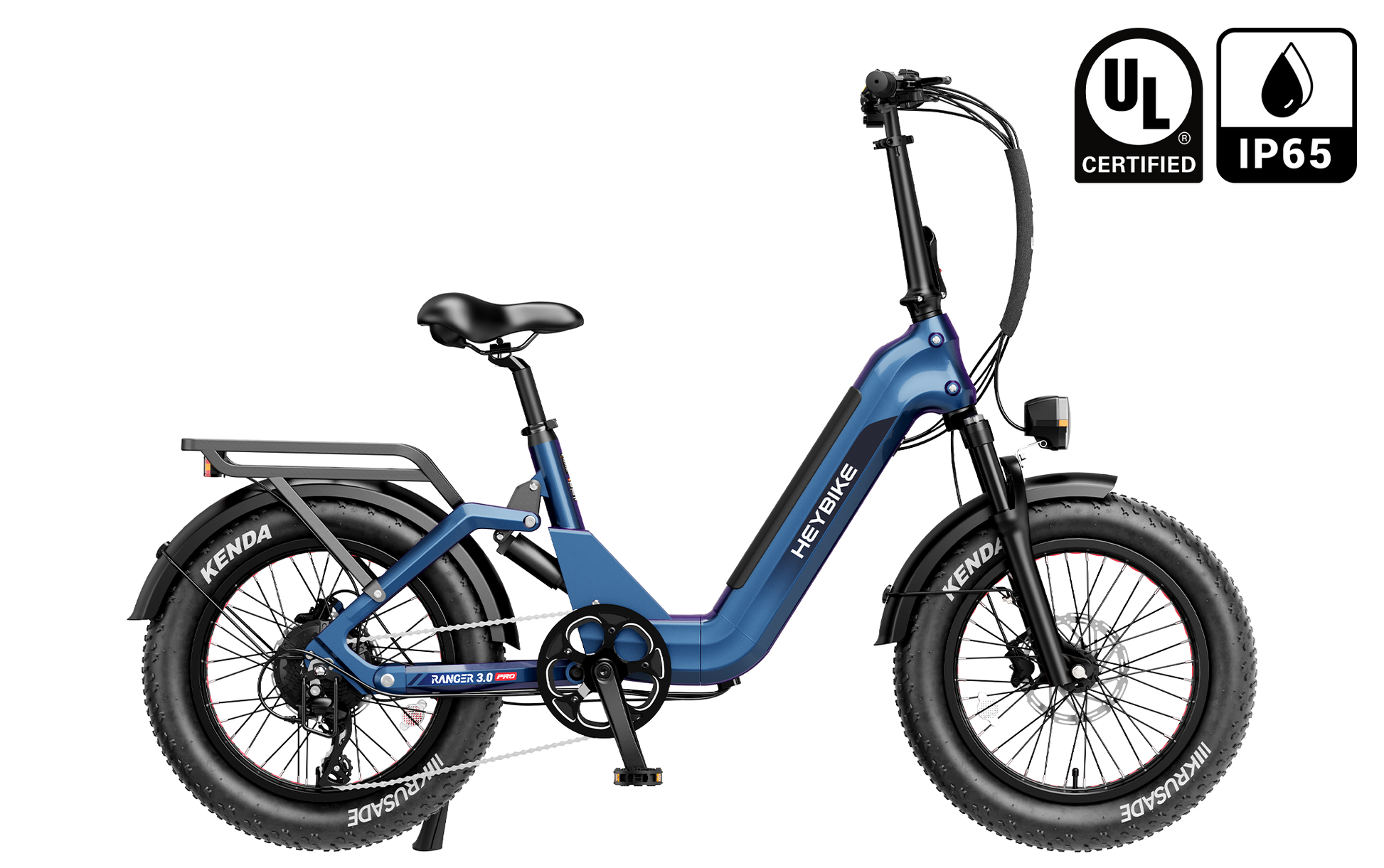

Heybike states that the Ranger 3.0 Pro is TÜV certified to UL safety standards and that its battery is UL 2271 certified.
The manufacturer states that this model is Class 2 by default and can be adjusted to Class 1 or Class 3 settings. Riders should follow all local e-bike laws, wear appropriate safety gear, and ride only where permitted.
