Autel EVO Lite 640T Enterprise Standard Package

Product Overview

The Autel EVO Lite 640T Enterprise Standard Package is a compact thermal drone system designed for industrial inspection, utility assessment, solar-panel review, construction-site surveys, environmental monitoring, emergency response, and search-and-rescue support.

Its dual-camera gimbal combines a 640 × 512 radiometric thermal camera with a 48MP visible-light camera. Supported split-screen workflows allow operators to compare thermal imagery, visible-light imagery, and map information through the Autel Enterprise application.

The Standard Package includes one intelligent flight battery, the Autel Smart Controller SE V2, a 32GB microSD card, charging equipment, a gimbal cover, and setup documentation. It is the streamlined configuration for teams that do not require the additional batteries, ND filters, shoulder bag, and accessories included with the Premium Package.

Authorized reseller through Drone Nerds.

Key Features

• 640 × 512 radiometric thermal imaging
• 9.1 mm thermal lens with a 61° field of view
• Up to 16× thermal digital zoom
• Center, point, and rectangular-area temperature measurement
• High- and low-temperature alert settings for supported area measurements
• Multiple selectable thermal color palettes
• 48MP visible-light camera with a 1/2-inch CMOS sensor
• Up to 4K/30fps visible-light video
• Up to 16× visible-light digital zoom

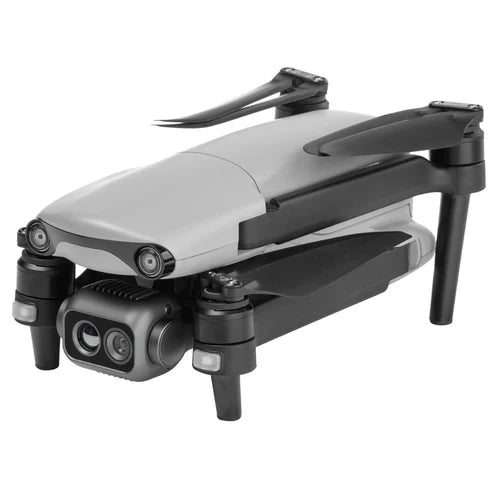

• Three-axis stabilized dual-camera gimbal
• Forward, rear, and downward binocular vision sensing
• Autel Enterprise mission-planning application
• Visible-light, thermal, and map split-screen display options
• Customizable application toolbar
• Offline-map support for compatible workflows
• AES-encrypted storage support for photos, videos, and flight logs
• Up to 12 km of published transmission distance under FCC test conditions
• Up to 40 minutes of published flight time under Autel test conditions
• Autel Smart Controller SE V2 with an integrated 6-inch display

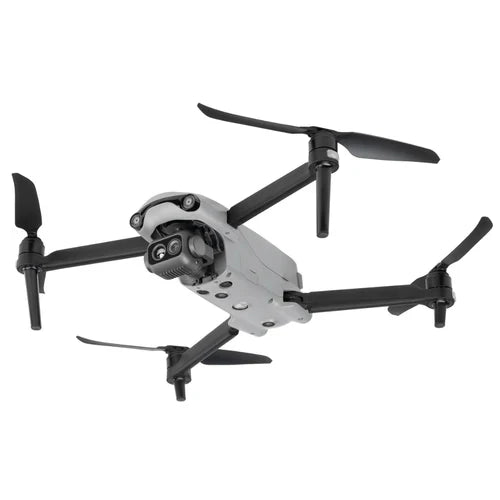

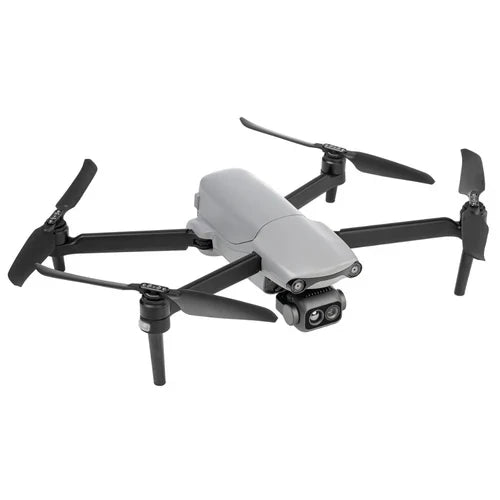

• Lightweight, foldable aircraft weighing approximately 866 g

Best For

• Utility-line and electrical-system inspection
• Solar-panel and rooftop inspection
• Construction-site and facility assessment
• Industrial-equipment inspection
• Fire-scene assessment and hotspot identification
• Emergency-response and first-responder operations
• Search-and-rescue support
• Environmental and agricultural monitoring
• Professional teams needing thermal and visible-light imaging in a portable aircraft

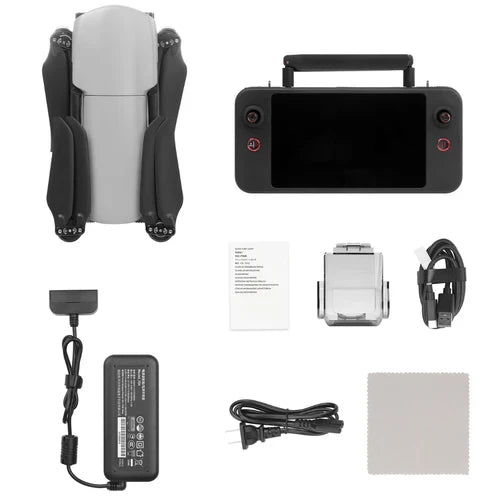

What Is Included

• 1 × Autel EVO Lite Enterprise 640T aircraft
• 1 × Autel Smart Controller SE V2
• 1 × Intelligent Flight Battery
• 1 × 32GB microSD card
• 1 × gimbal cover
• 1 × power adapter
• 1 × USB-A to USB-C data cable
• Documentation

Technical Specifications

Product Identification

• Model: Autel EVO Lite 640T Enterprise Standard Package
• SKU: 102003166
• UPC: 889520217453
• Product type: Enterprise thermal and inspection drone
• Remote controller: Autel Smart Controller SE V2

Thermal Camera

• Detector: Uncooled VOx microbolometer
• Thermal resolution: 640 × 512
• Focal length: 9.1 mm
• Field of view: 61°
• Aperture: f/1.0
• Focus distance: 2.2 m to infinity
• Pixel pitch: 12 µm
• Spectral range: 8–14 µm
• Thermal sensitivity: ≤50 mK at f/1.0 and 25°C under specified conditions
• Digital zoom: 1× to 16×
• High-gain temperature range: -20°C to 150°C
• Low-gain temperature range: 0°C to 550°C
• Published measurement accuracy: ±3°C or ±3% of the reading, whichever is greater, under specified conditions
• Published accurate measurement distance: 1–25 m under specified conditions
• Measurement methods: Center, point, and rectangular-area measurement
• Temperature alerts: High- and low-temperature thresholds supported for area measurements
• Thermal video: 640 × 512 at 30fps
• Photo format: JPG with embedded temperature data for compatible analysis tools
• Video formats: MP4 and MOV

Visible-Light Camera

• Sensor: 1/2-inch CMOS
• Effective resolution: 48MP
• Equivalent focal length: 24 mm
• Field of view: 83.4°
• Aperture: f/2.8
• Focus: Fixed focus from 0.5 m to infinity
• ISO range: ISO 100–6400
• Digital zoom: Up to 16× when recording in 4K
• Maximum photo size: 8000 × 6000
• Maximum video resolution: 4000 × 3000 at 30fps
• Photo format: JPG
• Video formats: MP4 and MOV
• Video encoding: H.264 and H.265
• Defog mode: Supported

Gimbal

• Stabilization: Three-axis mechanical stabilization
• Controllable pitch range: -90° to 30°
• Maximum pitch control speed: 100°/s
• Published angular vibration range: ±0.003°

Aircraft

• Published aircraft weight: Approximately 866 g
• Published maximum takeoff weight: 866 g
• Folded dimensions: 210 × 123 × 95 mm
• Unfolded dimensions: 433 × 516 × 95 mm
• Published maximum flight time: Up to 40 minutes under Autel test conditions
• Published maximum hover time: Up to 38 minutes under Autel test conditions
• Published maximum horizontal speed: Up to 18 m/s
• Operating temperature: 0°C to 40°C
• Satellite positioning: GPS, Galileo, and GLONASS
• Internal aircraft storage: 4GB
• Expandable storage: microSD card support up to 256GB
• Vision sensing: Forward, rear, and downward binocular vision sensors
• Published maximum transmission distance: Up to 12 km under FCC test conditions in an unobstructed, interference-free environment
• Published live-view quality: Up to 1080p/30fps

Intelligent Flight Battery

• Included quantity: One
• Battery type: LiPo 3S
• Rated capacity: 6,175 mAh
• Battery energy: 68.7 Wh
• Battery voltage: 11.13 V
• Published battery weight: Approximately 309 g
• Battery charging temperature: 5°C to 45°C

Autel Smart Controller SE V2

• Display size: 6 inches
• Display resolution: 1440 × 720
• Display refresh rate: 60Hz
• Maximum brightness: 800 nits
• Protection rating: IP43
• Internal storage: 32GB, with approximately 24GB available
• Expandable storage: microSD card supported
• Operating system: Android-based platform
• Wireless connectivity: Wi-Fi and Bluetooth 4.2
• Replaceable controller battery: Supported
• Published controller runtime: Up to 1.5 hours at maximum brightness or 2.5 hours at 50% brightness under specified conditions
• Operating temperature: -10°C to 40°C

Setup and Compatibility

The EVO Lite 640T Enterprise is operated through the included Autel Smart Controller SE V2 and the Autel Enterprise application. Visible-light imaging, thermal imaging, temperature tools, split-screen views, offline maps, camera settings, and supported flight functions are managed through the controller interface.

Confirm aircraft firmware, controller firmware, battery compatibility, memory-card requirements, thermal-analysis software, application settings, and mission configuration before operation.

The Standard Package includes one flight battery. Additional compatible batteries and charging accessories are sold separately unless specifically added to the order.

Shipping & Delivery

This item ships directly through our fulfillment partner.

Shipping charges are calculated at checkout unless otherwise stated.

Estimated Delivery:

• Processing: 1–2 business days after order confirmation
• Delivery: 5–10 business days depending on destination and carrier availability

High-value enterprise and thermal drone orders may require signature confirmation, additional verification, shipping insurance, or scheduled delivery.

Tracking information will be provided once your order ships.

Availability is subject to distributor stock and confirmed before fulfillment.

Pricing and availability are confirmed before order.

See our Shipping Policy for full details.

Warranty & Returns

Warranty and return coverage follow RoboSmartDepot’s published store policies, Drone Nerds’ reseller support process, and the applicable manufacturer warranty terms.

Returns must be approved before shipment back. Items must be sealed, unused, and unactivated to qualify for standard return review.

Opened or activated drone products may be subject to restocking fees or may not be eligible for return, depending on supplier and manufacturer policy.

Warranty/RMA support follows the Drone Nerds and manufacturer support process.

Safety, Compliance, and Important Notes

• This product is intended for legitimate professional applications such as industrial inspection, utility assessment, solar inspection, construction review, environmental monitoring, emergency response, and search-and-rescue support.
• The operator and purchasing organization are responsible for FAA registration, Remote ID, airspace authorization, pilot certification, operational waivers, and compliance with applicable federal, state, local, and site-specific requirements.
• Commercial and public-safety operations may require FAA Part 107 compliance, a Certificate of Authorization, additional agency approval, or other authorization depending on the mission.
• Thermal readings vary with emissivity, distance, atmospheric conditions, viewing angle, reflective surfaces, calibration, and operating conditions. Thermal data should be interpreted by trained personnel.
• Thermal imaging and temperature measurements are not intended for medical diagnosis.
• Vision sensing, automated flight functions, offline maps, and Return-to-Home functions have operational limitations and do not replace trained pilots, visual observation, or mission planning.
• Do not use the aircraft for unlawful, covert, invasive, or non-consensual monitoring.
• Published flight time, transmission distance, thermal accuracy, sensing capability, and other performance figures were measured under specified test conditions. Actual performance varies with weather, interference, battery condition, firmware, payload, and operating environment.
• Review activation and return requirements before opening, registering, or activating the product.
