Autel EVO MAX 4T XE Bundle

Product Overview

The Autel EVO MAX 4T XE Bundle is an enterprise thermal drone system designed for industrial inspection, utility infrastructure assessment, emergency response, search-and-rescue support, construction-site review, and other professional operations requiring visible-light, zoom, thermal, and distance-measurement capabilities.

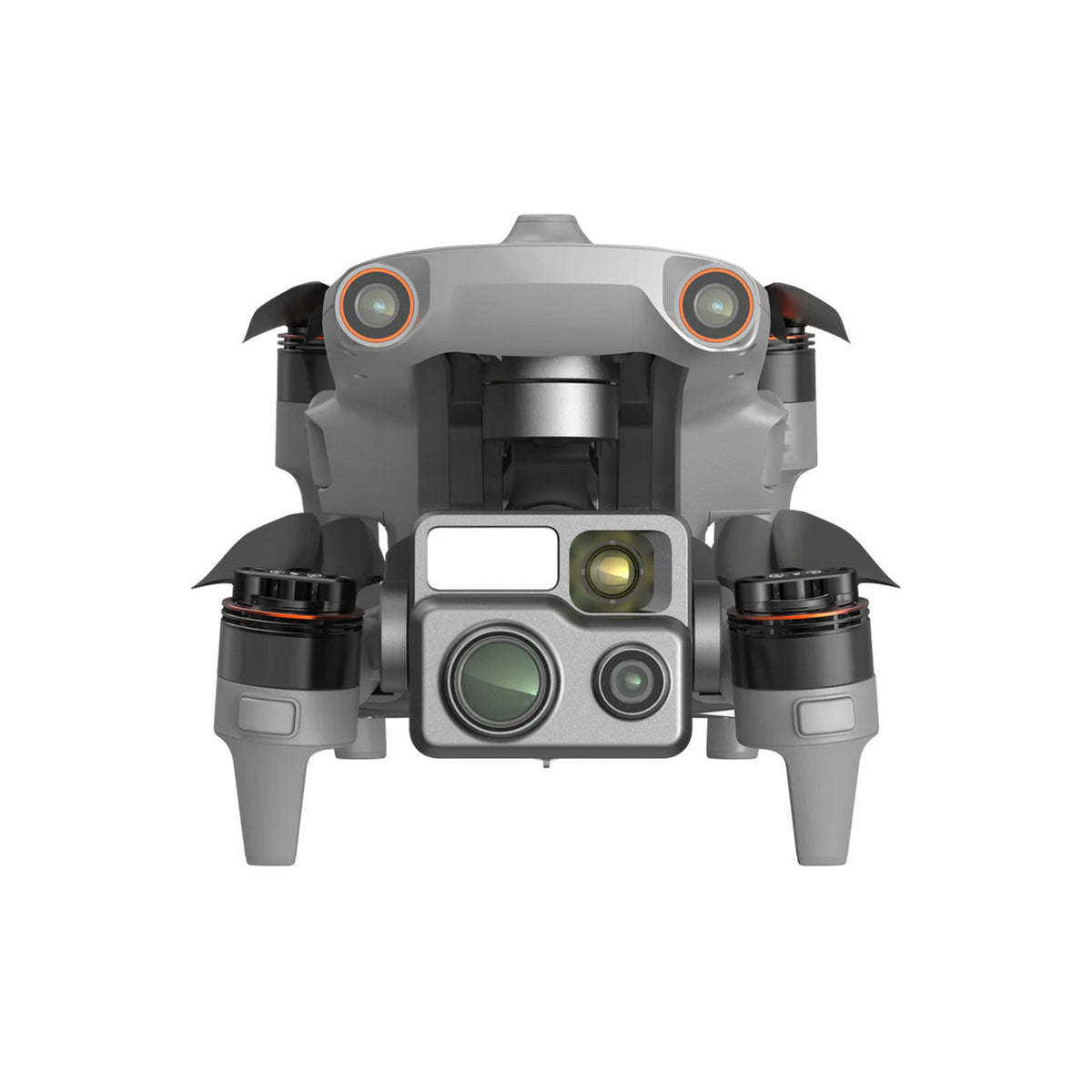

The Fusion 4T XE payload combines a 48MP continuous optical zoom camera, a 48MP wide-angle camera, a 640 × 512 thermal camera, and a laser rangefinder. The aircraft also supports autonomous route planning, multidirectional obstacle sensing, navigation assistance in certain GNSS-limited environments, and Autel Enterprise mission tools.

This bundle includes the EVO Max aircraft, Fusion 4T XE camera and gimbal, Autel Smart Controller V3, one intelligent flight battery, charging equipment, a rugged case, a 64GB microSD card, propellers, and setup accessories.

Authorized reseller through Drone Nerds.

Key Features

• Four-sensor Fusion 4T XE imaging and measurement payload
• 48MP zoom camera with 2.7× to 10× continuous optical zoom
• Up to 20× hybrid zoom and 160× digital zoom
• 48MP wide-angle visible-light camera
• 640 × 512 radiometric thermal imaging
• Point, area, and center temperature-measurement modes
• Configurable thermal temperature alerts
• Laser rangefinder with a published measuring range of 5 to 1,200 meters
• Autonomous flight-path planning and 3D environment-reconstruction functions
• Multidirectional vision and radar-assisted obstacle sensing
• Navigation support for certain GNSS-limited environments
• Autel Enterprise inspection and mission-planning tools
• Hot-swappable intelligent flight-battery support when enabled
• Up to 42 minutes of published flight time under Autel test conditions
• Up to 15 km of published transmission distance under FCC test conditions
• Autel Smart Controller V3 with a 7.9-inch, 2,000-nit display
• 128GB of internal aircraft storage with approximately 64GB available
• microSD card support up to 1TB

Best For

• Industrial and infrastructure inspection
• Utility-line, substation, facility, and rooftop inspection
• Construction-site and asset-condition assessment
• Emergency-response and first-responder operations
• Search-and-rescue support
• Fire-scene assessment and thermal observation
• Environmental monitoring
• Teams requiring visible-light, zoom, thermal, and rangefinder data from one payload
• Organizations that need an enterprise controller and rugged transport case

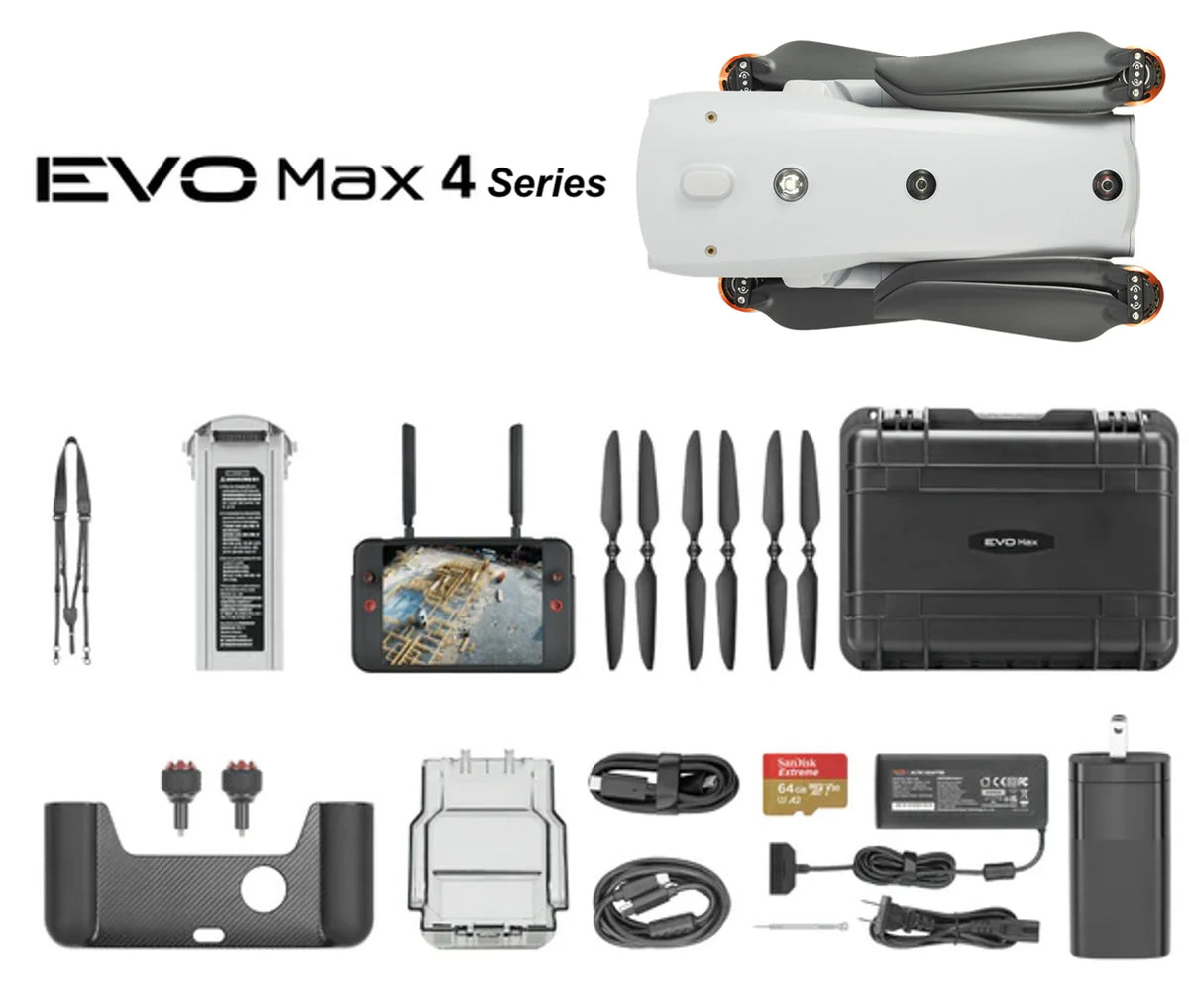

What Is Included

• 1 × Autel EVO Max aircraft
• 1 × Autel Fusion 4T XE camera and gimbal
• 1 × Autel EVO Max Series Intelligent Flight Battery
• 1 × Autel EVO Max Series gimbal cover
• 1 × Autel EVO Max Series battery charger and power cable
• 3 × pairs of Autel EVO Max Series propellers
• 1 × Autel Smart Controller V3
• 1 × Smart Controller lanyard
• 1 × Smart Controller cover
• 1 × spare pair of Smart Controller joysticks
• 1 × remote-controller charger
• 1 × remote-controller charging cable
• 1 × Autel EVO Max Series rugged case
• 1 × 64GB microSD card
• 1 × screwdriver
• 1 × data cable
• Manual
• Quick-start guide
• Packing list

Technical Specifications

Product Identification

• Model: Autel EVO MAX 4T XE Bundle
• SKU: 102003216
• UPC: 889520217965
• Product type: Enterprise thermal and inspection drone
• Controller: Autel Smart Controller V3

Zoom Camera

• Sensor: 1/2-inch CMOS
• Effective resolution: 48MP
• Equivalent focal length: 64–234 mm
• Aperture: f/2.8–f/4.8
• Optical zoom: 2.7× to 10× continuous optical zoom
• Additional zoom: Up to 20× hybrid and 160× digital zoom
• Maximum published photo size: 8000 × 6000
• Maximum published video resolution: 4000 × 3000 at 30fps
• Video encoding: H.264 and H.265

Wide-Angle Camera

• Effective resolution: 48MP
• Equivalent focal length: 24 mm
• Aperture: f/2.8
• Maximum published photo size: 8192 × 6144
• Maximum published video resolution: 4000 × 3000 at 30fps
• Night-mode video resolution: 2400 × 1800 at 30fps

Thermal Camera

• Detector: Uncooled VOx microbolometer
• Resolution: 640 × 512
• Focal length: 9.1 mm
• Field of view: 61°
• Aperture: f/1.0
• Digital zoom: Up to 16×
• High-gain measurement range: -20°C to 150°C
• Low-gain measurement range: 0°C to 550°C
• Measurement methods: Center, point, and area temperature measurement
• Published measurement accuracy: ±2°C or ±2% of the reading, whichever is greater, under specified conditions

Laser Rangefinder

• Published measuring range: 5–1,200 m
• Published measurement accuracy: ±(1 m + D × 0.15%), where D is the distance to a vertical reflective surface

Aircraft and Flight System

• Published maximum flight time: Up to 42 minutes under Autel test conditions
• Published maximum hover time: Up to 38 minutes under Autel test conditions
• Published maximum transmission distance: Up to 15 km under FCC test conditions without interference or obstruction
• Published maximum wind resistance: 10.7 m/s during takeoff and landing and 12 m/s during cruise
• Operating temperature: -20°C to 50°C without load and -20°C to 40°C with full load
• Internal storage: 128GB, with approximately 64GB available depending on firmware
• Expandable storage: Class 10, UHS-3 or higher microSD card up to 1TB
• Satellite systems: GPS, Galileo, BeiDou, and GLONASS
• Hot-swappable battery support: Supported when enabled in the flight application

Autel Smart Controller V3

• Display size: 7.9 inches
• Display resolution: 2048 × 1536
• Maximum brightness: 2,000 nits
• Internal storage: 128GB
• Operating system: Android-based platform with Autel Enterprise application
• Video output: HDMI output supported
• Published operating time: Up to four hours at 50% brightness under specified conditions

Setup and Compatibility

The EVO MAX 4T XE is operated through the included Autel Smart Controller V3 and the Autel Enterprise application. Mission planning, aircraft settings, visible-light imaging, thermal imaging, rangefinder tools, mapping functions, and supported automated features are managed through the enterprise flight interface.

Review the required aircraft, controller, payload, firmware, application, data-security, mapping, memory-card, and accessory configuration before operation. Some enterprise functions may require additional software, licensing, accessories, training, or site-specific planning.

Shipping & Delivery

This item ships directly through our fulfillment partner.

Shipping charges are calculated at checkout unless otherwise stated.

Estimated Delivery:

• Processing: 1–2 business days after order confirmation
• Delivery: 5–10 business days depending on destination and carrier availability

High-value enterprise and thermal drone orders may require signature confirmation, additional verification, shipping insurance, or scheduled delivery.

Tracking information will be provided once your order ships.

Availability is subject to distributor stock and confirmed before fulfillment.

Pricing and availability are confirmed before order.

See our Shipping Policy for full details.

Warranty & Returns

Warranty and return coverage follow RoboSmartDepot’s published store policies, Drone Nerds’ reseller support process, and the applicable manufacturer warranty terms.

Returns must be approved before shipment back. Items must be sealed, unused, and unactivated to qualify for standard return review.

Opened or activated drone products may be subject to restocking fees or may not be eligible for return, depending on supplier and manufacturer policy.

Warranty/RMA support follows the Drone Nerds and manufacturer support process.

Safety, Compliance, and Important Notes

• This product is intended for legitimate professional applications such as industrial inspection, utility assessment, construction review, environmental monitoring, emergency response, and search-and-rescue support.
• The operator and purchasing organization are responsible for FAA registration, Remote ID, airspace authorization, pilot certification, operational waivers, and compliance with applicable federal, state, local, and site-specific requirements.
• Commercial and public-safety operations may require FAA Part 107 compliance, a Certificate of Authorization, additional agency approval, or other authorization depending on the mission.
• Thermal readings vary with emissivity, distance, atmospheric conditions, viewing angle, reflective surfaces, calibration, and operating conditions. Thermal data should be interpreted by trained personnel.
• Thermal imaging and temperature measurements are not intended for medical diagnosis.
• Obstacle sensing, radar, autonomous navigation, supported automated flight functions, and Return-to-Home functions have operational limitations and do not replace trained pilots, mission planning, or visual observation.
• Operations in GNSS-limited or interference-heavy environments require additional planning and do not guarantee uninterrupted positioning or control.
• Do not use the aircraft for unlawful, covert, invasive, or non-consensual monitoring.
• Published flight time, transmission distance, sensing range, thermal accuracy, and performance figures were measured under specified test conditions. Actual results vary by configuration, weather, interference, payload, battery condition, firmware, and operating environment.
• Review activation and return requirements before opening, registering, or activating the product.
