BLUETTI RV5 10kWh RV Power Kit - 5,000W, 10,240Wh
BLUETTI RV5 10kWh RV Power Kit - 5,000W, 10,240Wh
Couldn't load pickup availability
Product Overview

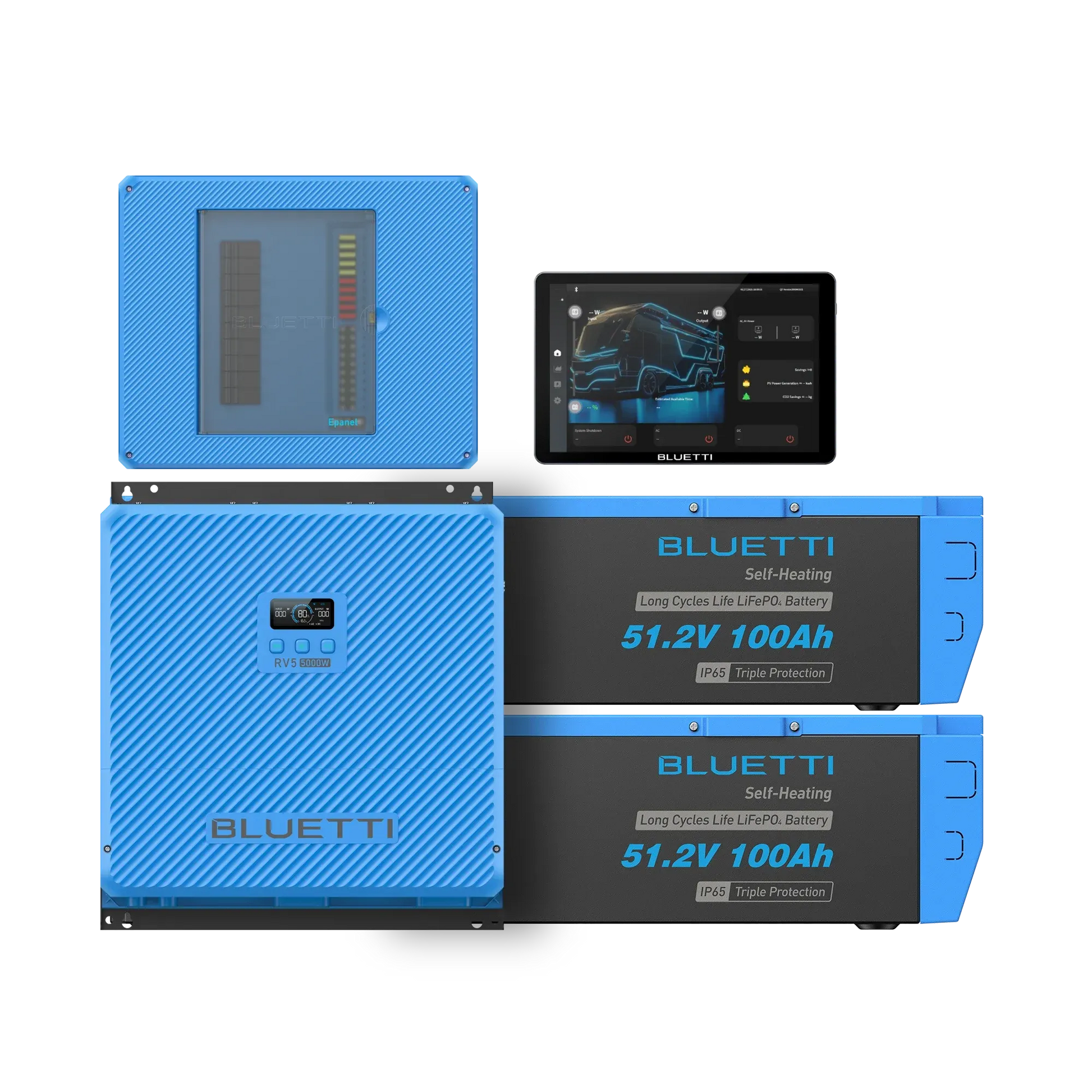

Important Kit Notice: This listing includes one BLUETTI RV5 Power Hub, two B4810 5,120Wh LiFePO4 batteries, one Epanel smart distribution panel, one Epad control screen, and the listed wiring packages.
Solar panels, solar-panel mounting equipment, an EV charging cable, and installation labor are not included.

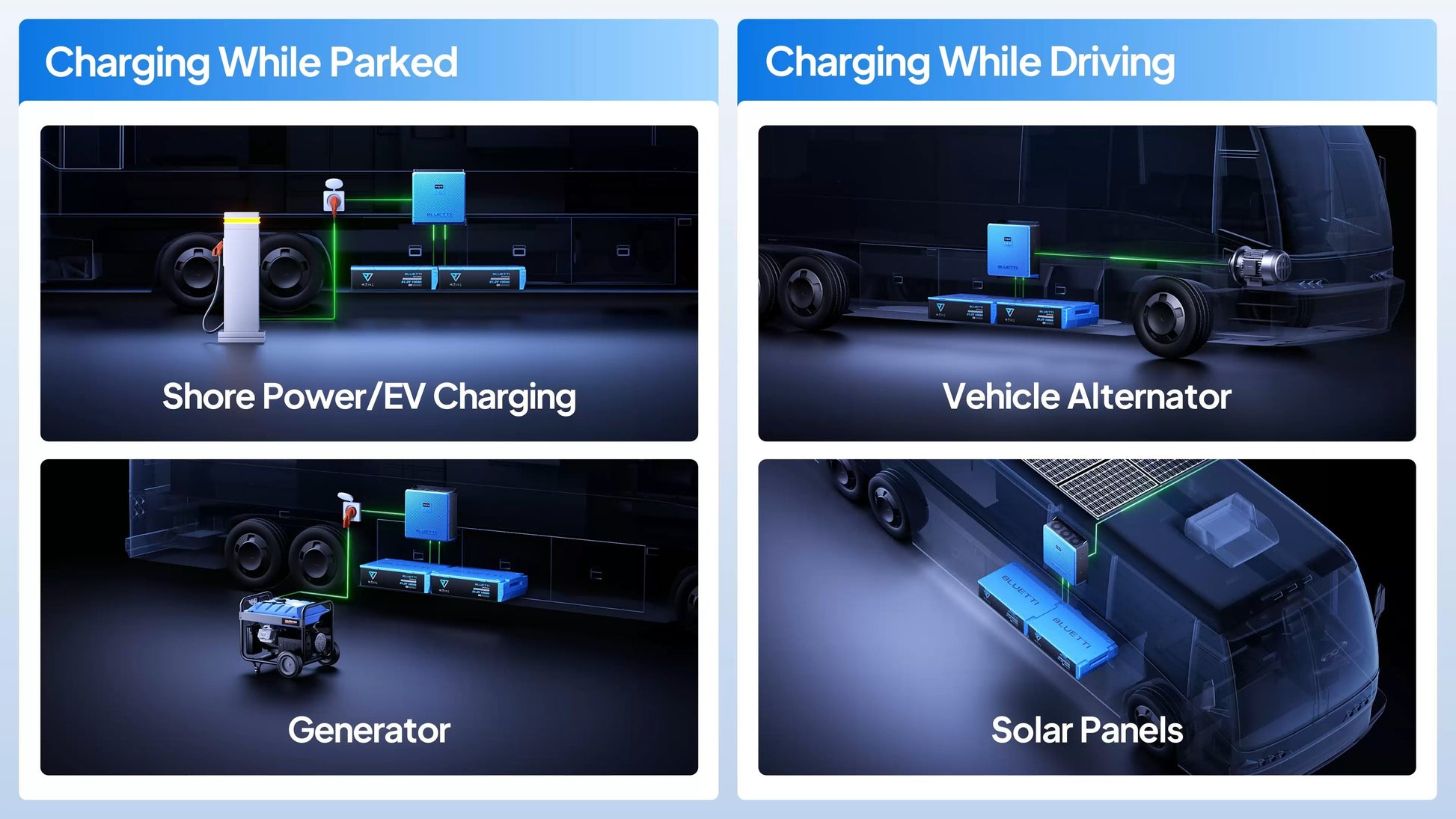

The BLUETTI RV5 10kWh RV Power Kit combines a 5,000W RV power hub with 10,240Wh of LiFePO4 battery storage. It is designed for RVs, camper vans, custom conversions, and mobile installations requiring extended runtime, AC power, DC distribution, solar charging, vehicle charging, and centralized system control.
Key Features
- 5,000W continuous 120V AC output
- Up to 10,000W AC surge output
- 10,240Wh total battery capacity from two B4810 batteries
- 51.2V, 100Ah capacity per B4810 battery
- 12V or 24V DC distribution
- Up to 1,620W DC output at 24V
- Up to 1,800W solar input
- Vehicle charging input up to 600W at 12V or 1,200W at 24V
- UPS switchover time of 20 milliseconds or less
- Epanel AC and DC smart distribution panel
- Epad touchscreen for system monitoring and control
- Battery, alternator-charging, and distribution-panel wiring packages included
Best For / Intended Use
- Full-time RV living
- Extended off-grid RV trips
- Camper and van electrical-system upgrades
- Custom mobile-power installations requiring longer runtime
- Customers who want the RV5, two batteries, control screen, distribution panel, and wiring packages in one kit
What Is Included
- BLUETTI RV5 Power Hub × 1
- BLUETTI B4810 51.2V, 100Ah LiFePO4 battery × 2
- BLUETTI Epanel smart distribution panel × 1
- BLUETTI Epad central control screen × 1
- Battery connection wiring package × 1
- Alternator charger wiring package × 1
- Distribution panel wiring package × 1
- RV5 mounting hardware and drilling template
- Applicable manufacturer documentation
Not Included: Solar panels, solar-panel mounting hardware, EV charging cable, dedicated starter battery, installation labor, and any electrical components not specifically identified as included.
Technical Specifications
System Summary

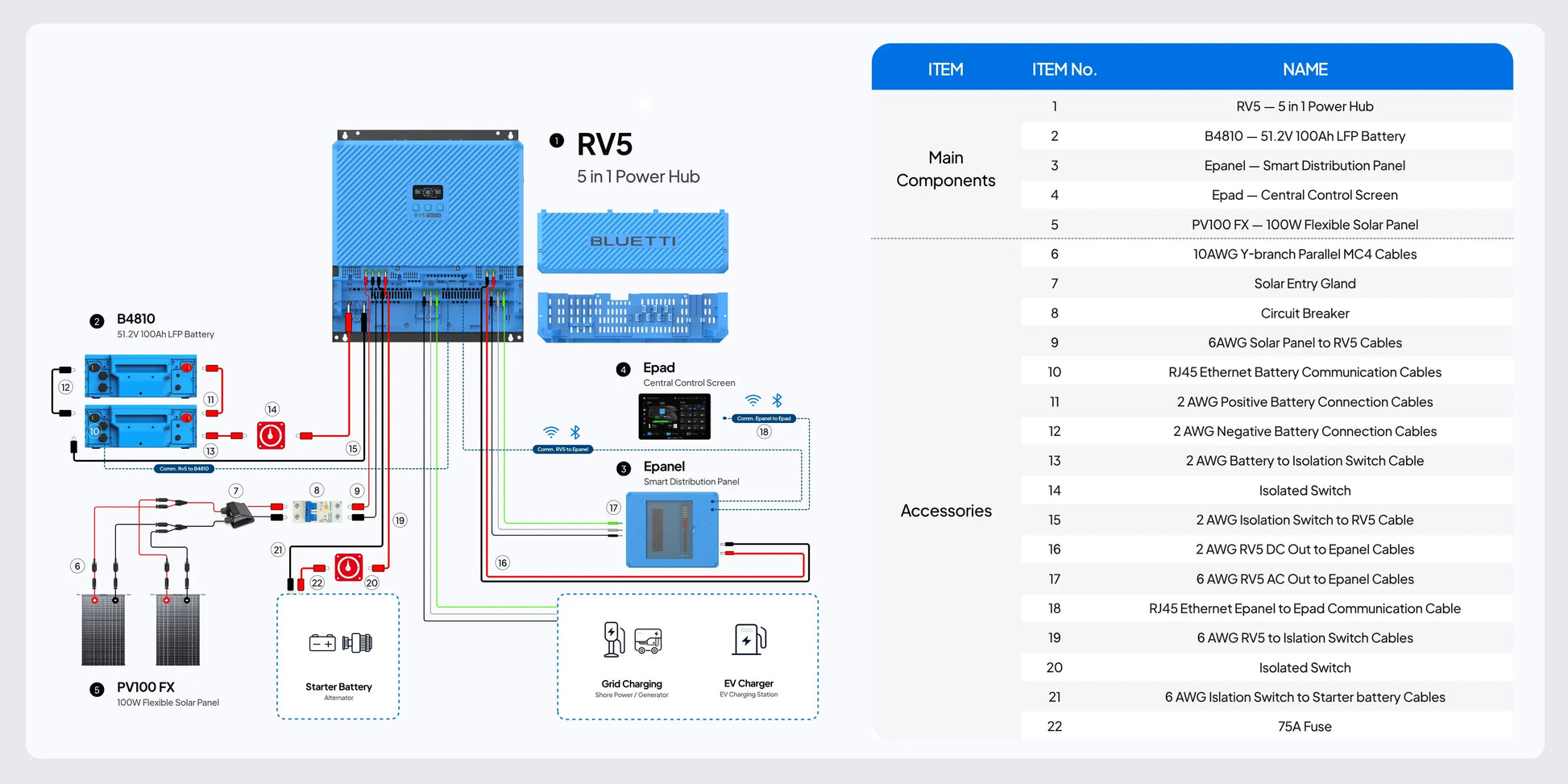

| System Configuration | RV5 + 2 × B4810 + Epanel + Epad |
|---|---|
| Total Battery Capacity | 10,240Wh |
| Rated AC Output | 5,000W |
| Maximum Combined Load | 6,000W, depending on battery type and quantity |
RV5 Power Hub
| Model | RV5 |
|---|---|
| Rated AC Output | 5,000W |
| AC Surge Output | Up to 10,000W |
| Rated AC Output Voltage | 120V |
| Rated AC Output Current | 42A |
| UPS Switchover Time | 20 milliseconds or less |
| Maximum Solar Input | 1,800W |
| Solar Input Range | 12V–50V, 50A maximum |
| Vehicle Charging Input | 600W at 12V or 1,200W at 24V |
| DC Output Voltage | 12V or 24V |
| DC Output Current | 100A at 12V or 60A at 24V |
| Rated DC Output | 1,360W at 12V or 1,620W at 24V |
| Dimensions | 17.72 × 19.69 × 6.30 inches (450 × 500 × 159.9mm) |
| Weight | Approximately 30.86 lb (14kg) |
| Operating Temperature | -4°F to 131°F (-20°C to 55°C) |
| Manufacturer-Listed Certification | UL 458 |
B4810 Batteries
| Quantity | 2 |
|---|---|
| Capacity per Battery | 5,120Wh |
| Total Capacity | 10,240Wh |
| Nominal Voltage | 51.2V |
| Capacity per Battery | 100Ah |
| Battery Chemistry | LiFePO4 lithium iron phosphate |
| Cycle Life | 6,000 cycles to 70% remaining capacity |
| Protection Rating | IP65 |
| Dimensions per Battery | 23.94 × 14.96 × 5.71 inches (608 × 380 × 145mm) |
| Weight per Battery | Approximately 101.4 lb (46kg) |
Epanel Smart Distribution Panel
| AC Input | 120V or 240V, 50A maximum |
|---|---|
| AC Output Circuits | 8 total: 4 smart circuits and 4 standard circuits |
| DC Input | 10V–30V, 100A maximum |
| DC Output Circuits | 20 total: 6 smart circuits and 14 standard circuits |
| Dimensions | 17 × 13.89 × 4.12 inches (431.8 × 352.9 × 104.6mm) |
| Weight | Approximately 7.7 lb (3.5kg) |
| Protection Rating | IP20 |
Epad Central Control Screen
- Displays battery status, charging inputs, power consumption, and system information
- Provides monitoring and control for compatible RV5 and Epanel functions
- Connects to the system through the required communication wiring
Setup and Compatibility
The two included B4810 batteries provide a combined 10,240Wh of energy storage. Both batteries must be installed, connected, secured, and configured according to the current BLUETTI RV5 and B4810 instructions.
The Epanel provides AC and DC circuit distribution. The Epad provides centralized monitoring and compatible control functions.
Confirm all cable lengths, mounting locations, terminal requirements, fuses, breakers, grounding, ventilation, and compatibility with the RV's existing AC and DC electrical systems before installation.
For 12V auto-leveling systems with startup current above 100A, BLUETTI recommends a separate compatible 12V battery or the vehicle's existing suitable 12V battery.
Solar panels are optional and must remain within the RV5 solar-input voltage, current, and power limits. An EV charging cable is sold separately.
Installation must follow current BLUETTI instructions and applicable electrical requirements. Use a qualified installer when required or when the installer is not experienced with high-current AC and DC systems.
Shipping and Delivery
This item ships directly from our fulfillment partner or manufacturer.
Freight charges are calculated at checkout.
Estimated Delivery:
- Processing: 1–2 business days
- Delivery: 5–10 business days depending on location
Oversized or high-value items may require additional handling or scheduled delivery.
Tracking information will be provided once your order ships.
See our Shipping Policy for full details.
Warranty and Returns
Warranty service and returns are subject to the applicable manufacturer terms and RoboSmartDepot's current Warranty and Refund policies. Review those policies before ordering.
Safety, Compliance, and Important Notes
- This kit contains two high-capacity lithium batteries.
- Disconnect all power sources before installation, wiring, inspection, or maintenance.
- Use correctly rated cables, terminals, fuses, breakers, grounding, and distribution equipment.
- Install the RV5, Epanel, and Epad in dry, protected, properly ventilated locations.
- Do not block ventilation openings.
- Secure both B4810 batteries according to BLUETTI mounting instructions.
- Do not use any component, cable, or connector that appears damaged.
- Follow the current BLUETTI RV5, B4810, Epanel, and Epad instructions.
