BLUETTI RV5 5kWh RV Power Kit - 5,000W, 5,120Wh
BLUETTI RV5 5kWh RV Power Kit - 5,000W, 5,120Wh
Couldn't load pickup availability
Product Overview

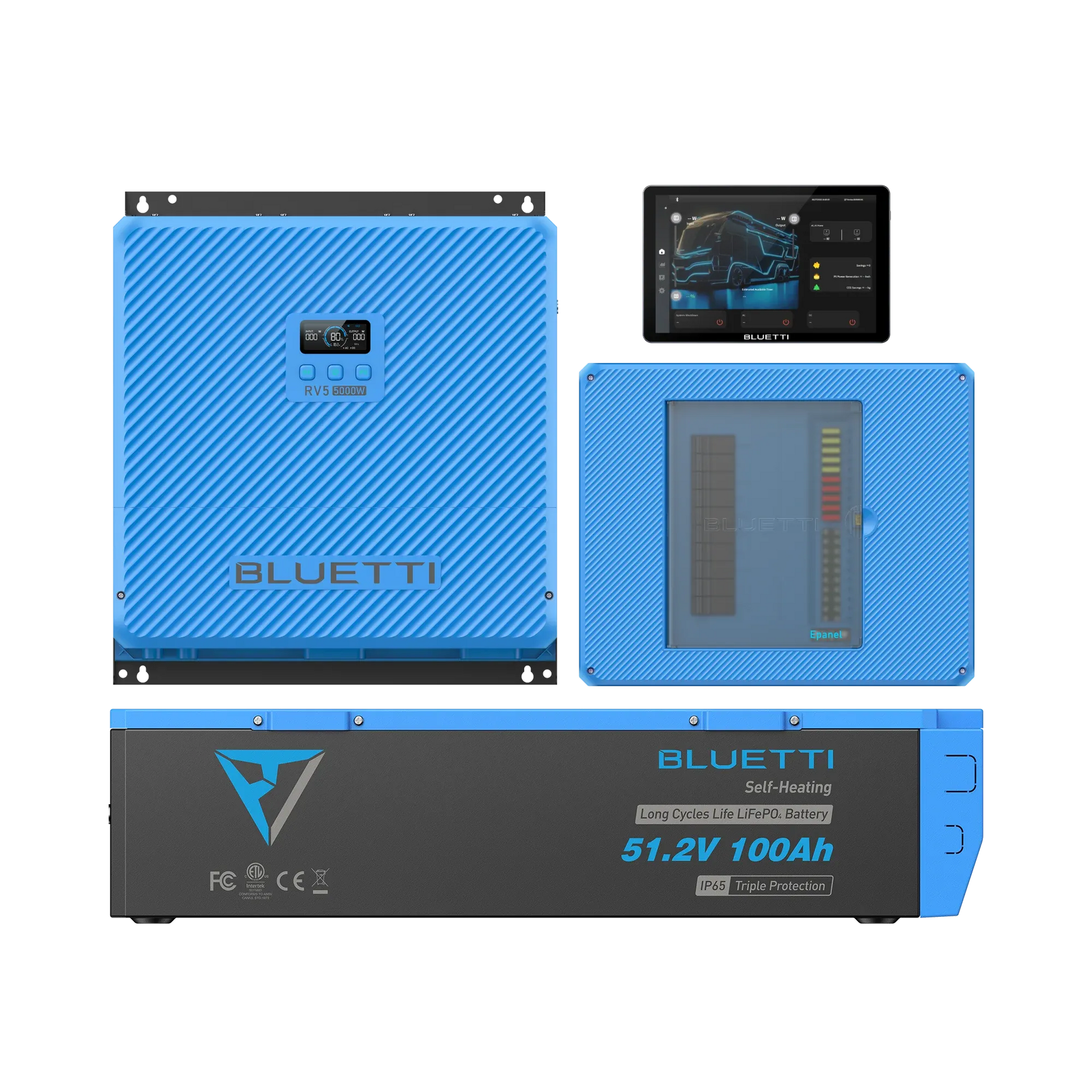

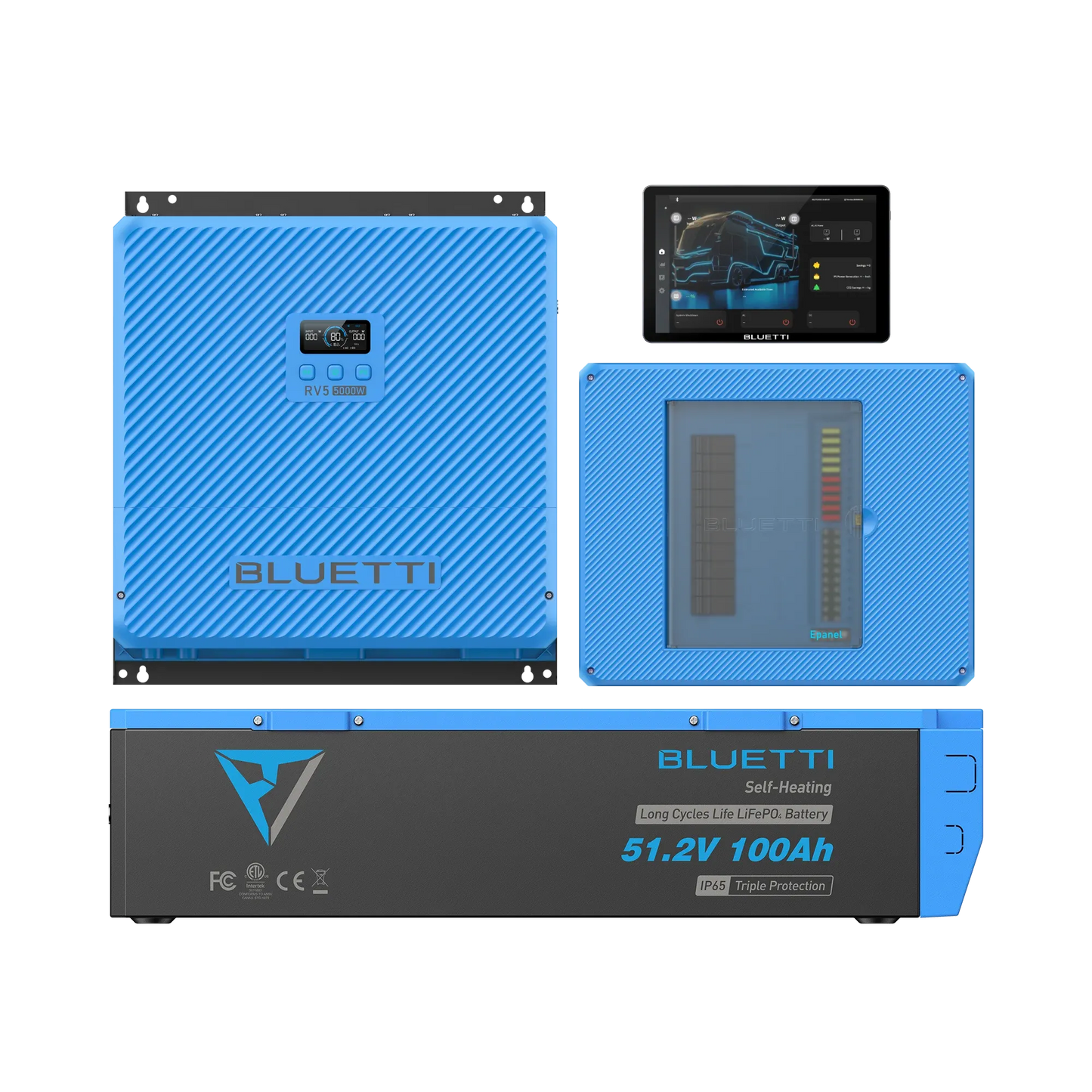

Important Kit Notice: This listing includes one BLUETTI RV5 Power Hub, one B4810 5,120Wh LiFePO4 battery, one Epanel smart distribution panel, one Epad control screen, and the listed wiring packs.
Solar panels, solar-panel mounting equipment, an EV charging cable, and installation labor are not included.

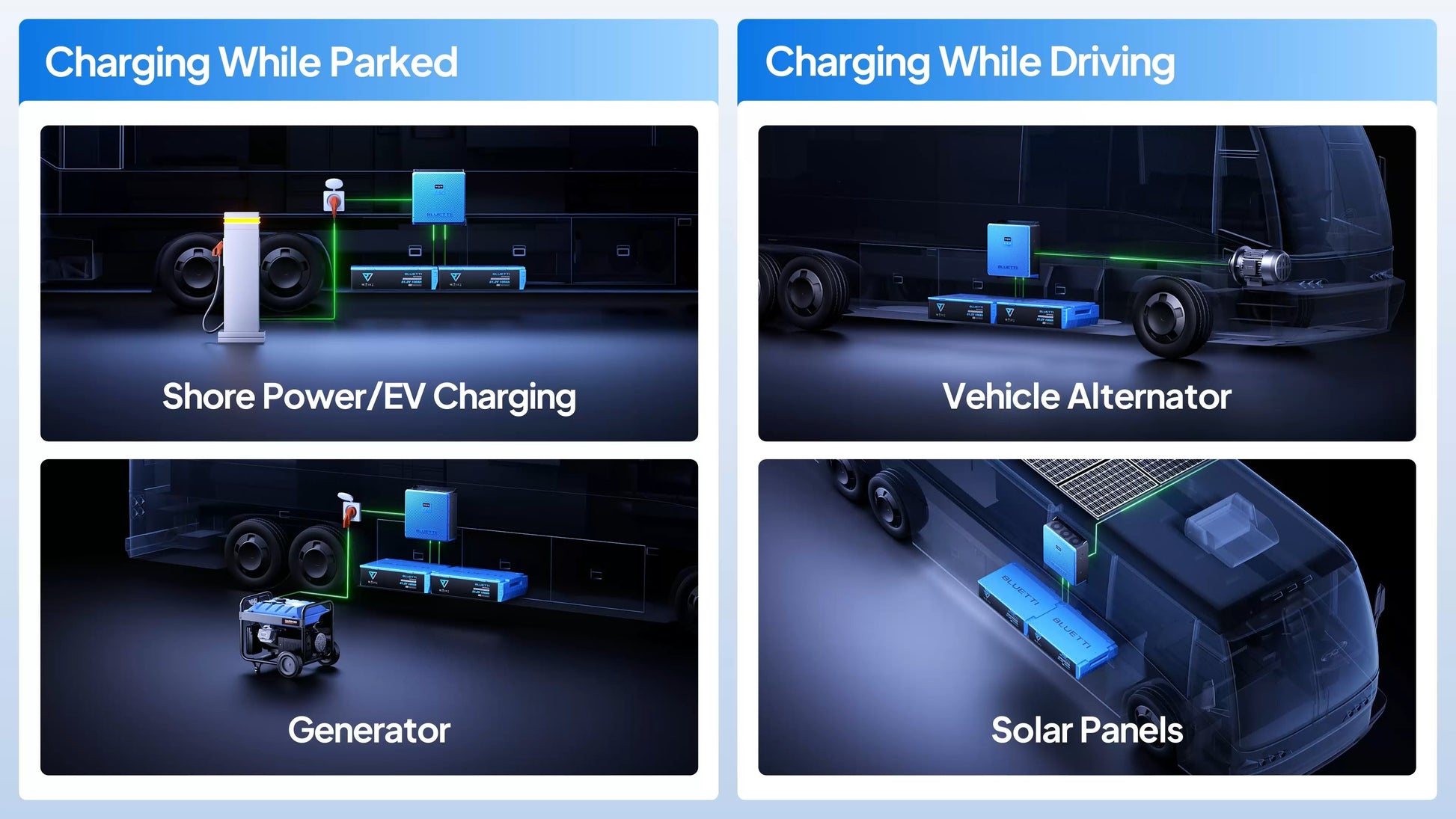

The BLUETTI RV5 5kWh RV Power Kit is an integrated RV electrical system with 5,000W of 120V AC output, 12V or 24V DC distribution, and 5,120Wh of battery storage. It is designed for RVs, camper vans, custom conversions, and mobile installations that need shore-power, solar, and vehicle-charging capability.
Key Features
- 5,000W continuous 120V AC output
- Up to 10,000W AC surge output
- 5,120Wh B4810 LiFePO4 battery capacity
- 12V or 24V DC distribution
- Up to 1,620W DC output at 24V
- Up to 1,800W solar input
- Vehicle charging input of up to 600W at 12V or 1,200W at 24V
- UPS switchover time of 20 milliseconds or less
- Epanel with AC and DC power-distribution circuits
- Epad touchscreen for system monitoring and control
- Battery, alternator-charging, and distribution-panel wiring packs included
Best For / Intended Use
- RV and camper electrical-system upgrades
- Van conversions and custom mobile-power installations
- Weekend and recreational RV use
- Systems requiring integrated AC and DC distribution
- Customers who want the RV5, battery, control screen, distribution panel, and wiring packages in one kit
What Is Included
- BLUETTI RV5 Power Hub × 1
- BLUETTI B4810 51.2V, 100Ah LiFePO4 battery × 1
- BLUETTI Epanel smart distribution panel × 1
- BLUETTI Epad central control screen × 1
- Battery connection wiring pack × 1
- Alternator charger wiring pack × 1
- Distribution panel wiring pack × 1
- RV5 M8 wood screws × 8
- RV5 anchors × 8
- RV5 drilling template × 1
- RV5 user documentation × 1
Not Included: Solar panels, solar-panel mounting hardware, EV charging cable, dedicated starter battery, circuit breakers or fuses not identified as part of the supplied wiring packages, and installation labor.
Technical Specifications
RV5 Power Hub
| Model | RV5 |
|---|---|
| Rated AC Output | 5,000W |
| AC Surge Output | Up to 10,000W |
| Rated AC Output Voltage | 120V |
| Rated AC Output Current | 42A |
| UPS Switchover Time | 20 milliseconds or less |
| Maximum Solar Input | 1,800W |
| Solar Input Range | 12V–50V, 50A maximum |
| Vehicle Charging Input | 600W at 12V or 1,200W at 24V |
| DC Output Voltage | 12V or 24V |
| DC Output Current | 100A at 12V or 60A at 24V |
| Rated DC Output | 1,360W at 12V or 1,620W at 24V |
| Maximum Combined Load | 6,000W, depending on battery type and quantity |
| Dimensions | 17.72 × 19.69 × 6.30 inches (450 × 500 × 159.9mm) |
| Weight | Approximately 30.86 lb (14kg) |
| Operating Temperature | -4°F to 131°F (-20°C to 55°C) |
| Manufacturer-Listed Certification | UL 458 |
B4810 Battery
| Model | B4810 |
|---|---|
| Battery Capacity | 5,120Wh |
| Nominal Voltage | 51.2V |
| Capacity | 100Ah |
| Battery Chemistry | LiFePO4 lithium iron phosphate |
| Cycle Life | 6,000 cycles to 70% remaining capacity |
| Protection Rating | IP65 |
| Dimensions | 23.94 × 14.96 × 5.71 inches (608 × 380 × 145mm) |
| Weight | Approximately 101.4 lb (46kg) |
Epanel Smart Distribution Panel
| AC Input | 120V or 240V, 50A maximum |
|---|---|
| AC Output Circuits | 8 total: 4 smart circuits and 4 standard circuits |
| DC Input | 10V–30V, 100A maximum |
| DC Output Circuits | 20 total: 6 smart circuits and 14 standard circuits |
| Dimensions | 17 × 13.89 × 4.12 inches (431.8 × 352.9 × 104.6mm) |
| Weight | Approximately 7.7 lb (3.5kg) |
| Protection Rating | IP20 |
Epad Central Control Screen
- Displays battery status, charging inputs, power use, and system information
- Provides monitoring and control for compatible RV5 and Epanel functions
- Connects to the system using the required communication wiring
Setup and Compatibility
The B4810 is the matched 51.2V battery included with this RV5 system. The Epanel provides AC and DC distribution, while the Epad provides centralized monitoring and compatible system controls.

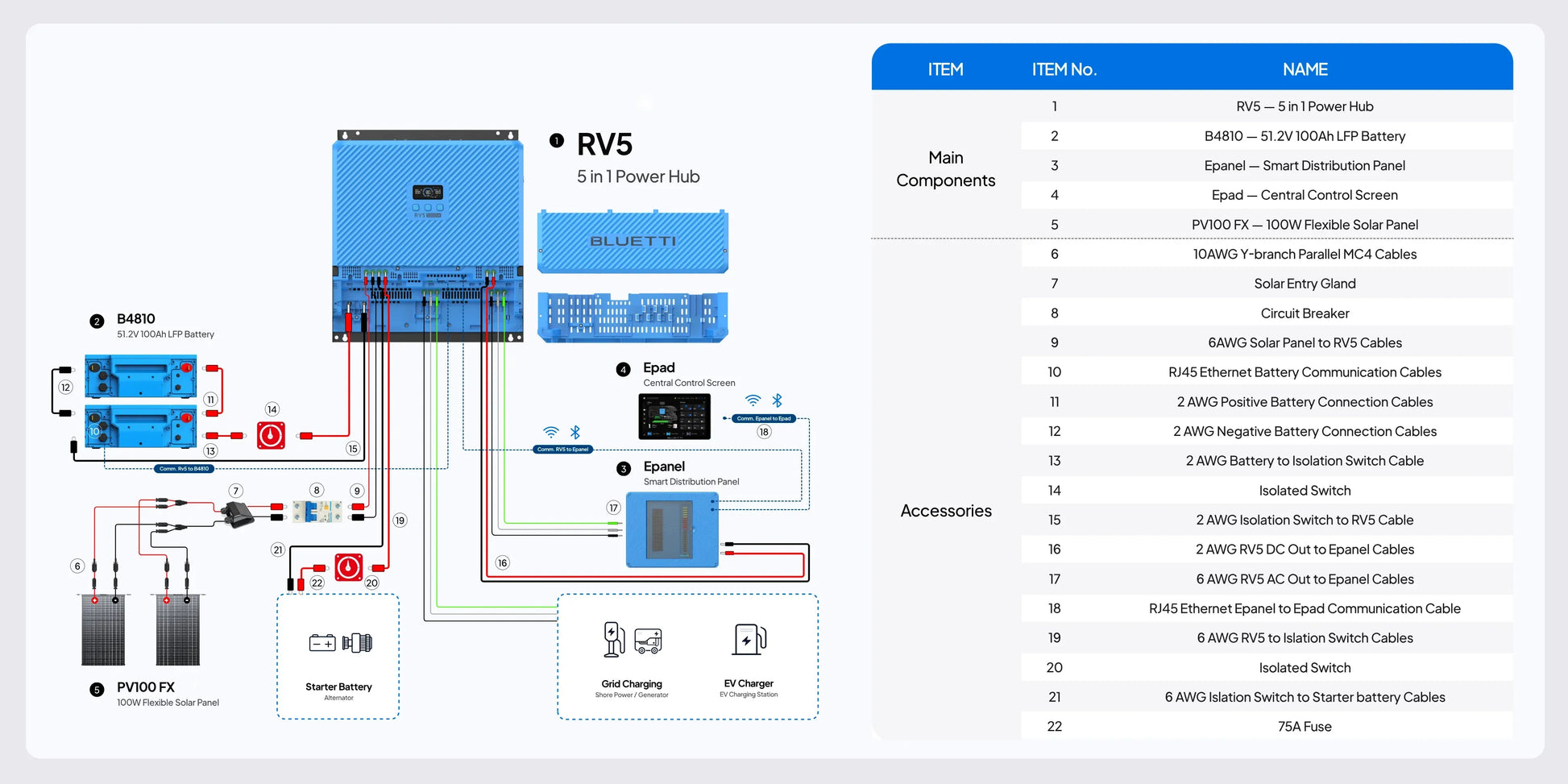

The supplied wiring packages are intended for the battery connection, alternator-charging connection, and Epanel distribution connection. Confirm the cable lengths, terminal requirements, breaker and fuse requirements, installation location, and compatibility with the RV's existing electrical system before installation.
For 12V auto-leveling systems with startup current above 100A, BLUETTI recommends a separate compatible 12V battery or the vehicle's existing suitable 12V battery.
Solar panels are optional and must remain within the RV5's supported solar-input voltage, current, and power limits. An EV charging cable is sold separately.
Installation requires correctly sized wiring, overcurrent protection, grounding, secure component mounting, ventilation, and integration with the RV's AC and DC systems. Follow all current BLUETTI manuals and applicable electrical requirements. Use a qualified installer when required or when the installer is not experienced with high-current AC and DC systems.
Shipping and Delivery
This item ships directly from our fulfillment partner or manufacturer.
Freight charges are calculated at checkout.
Estimated Delivery:
- Processing: 1–2 business days
- Delivery: 5–10 business days depending on location
Oversized or high-value items may require additional handling or scheduled delivery.
Tracking information will be provided once your order ships.
See our Shipping Policy for full details.
Warranty and Returns
Warranty service and returns are subject to the applicable manufacturer terms and RoboSmartDepot's current Warranty and Refund policies. Review those policies before ordering.
Safety, Compliance, and Important Notes
- This kit contains a high-capacity lithium battery.
- Disconnect all power sources before installation, wiring, inspection, or maintenance.
- Use correctly rated cables, terminals, fuses, breakers, grounding, and distribution equipment.
- Install the RV5, Epanel, and Epad in dry, protected, properly ventilated locations.
- Do not block the RV5 or Epanel ventilation openings.
- Secure the B4810 according to BLUETTI mounting instructions.
- Do not use any component, cable, or connector that appears damaged.
- Follow the current BLUETTI RV5, B4810, Epanel, and Epad instructions.
