BLUETTI RV5 + B4810 RV Power System - 5,000W, 5,120Wh
BLUETTI RV5 + B4810 RV Power System - 5,000W, 5,120Wh
Couldn't load pickup availability
Product Overview

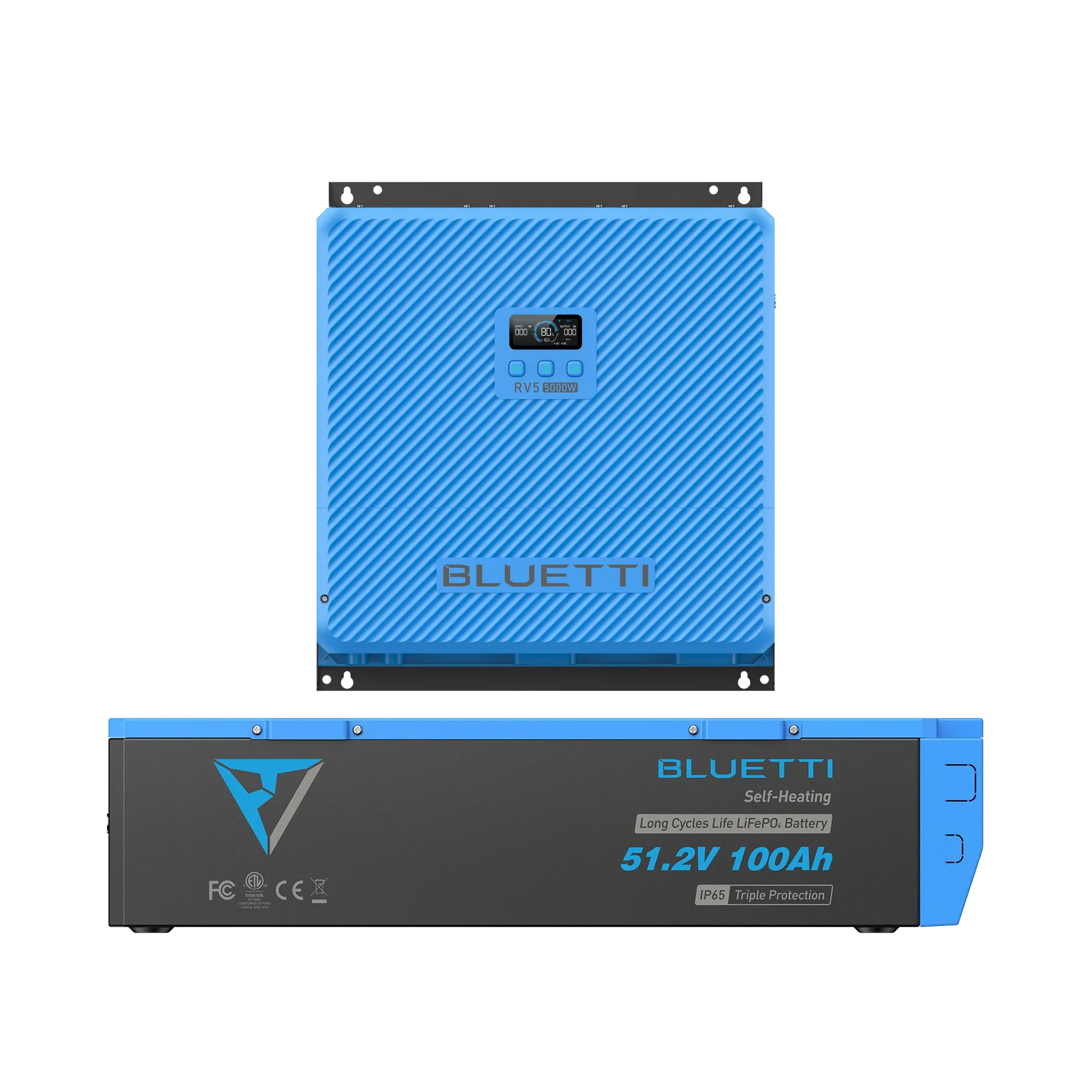

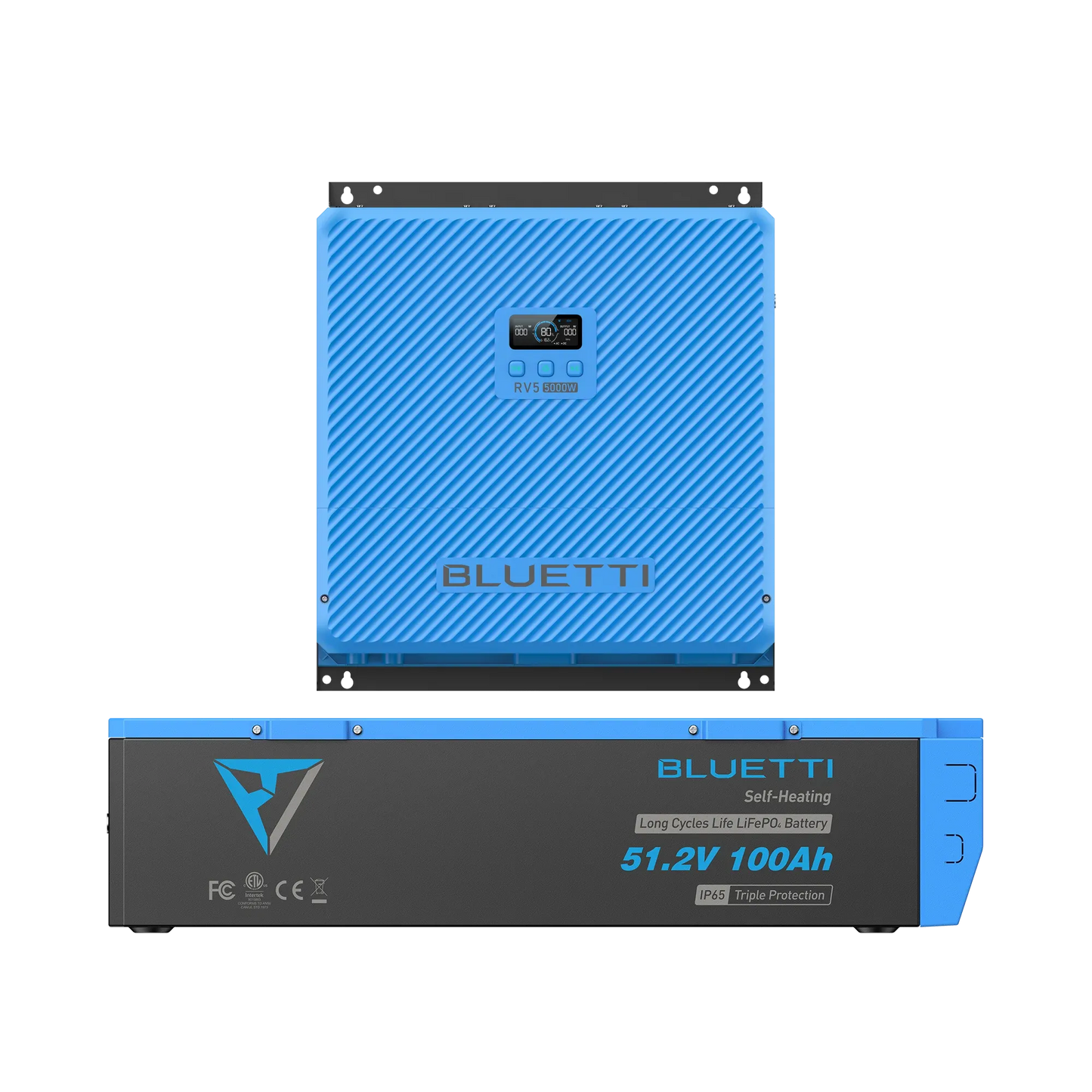

Important Bundle Notice: This configuration includes one BLUETTI RV5 Power Hub and one BLUETTI B4810 5,120Wh LiFePO4 battery.
The Epanel, Epad control screen, solar panels, and complete RV installation kit are not included with this configuration. Customers who need those components should select the appropriate complete RV kit.

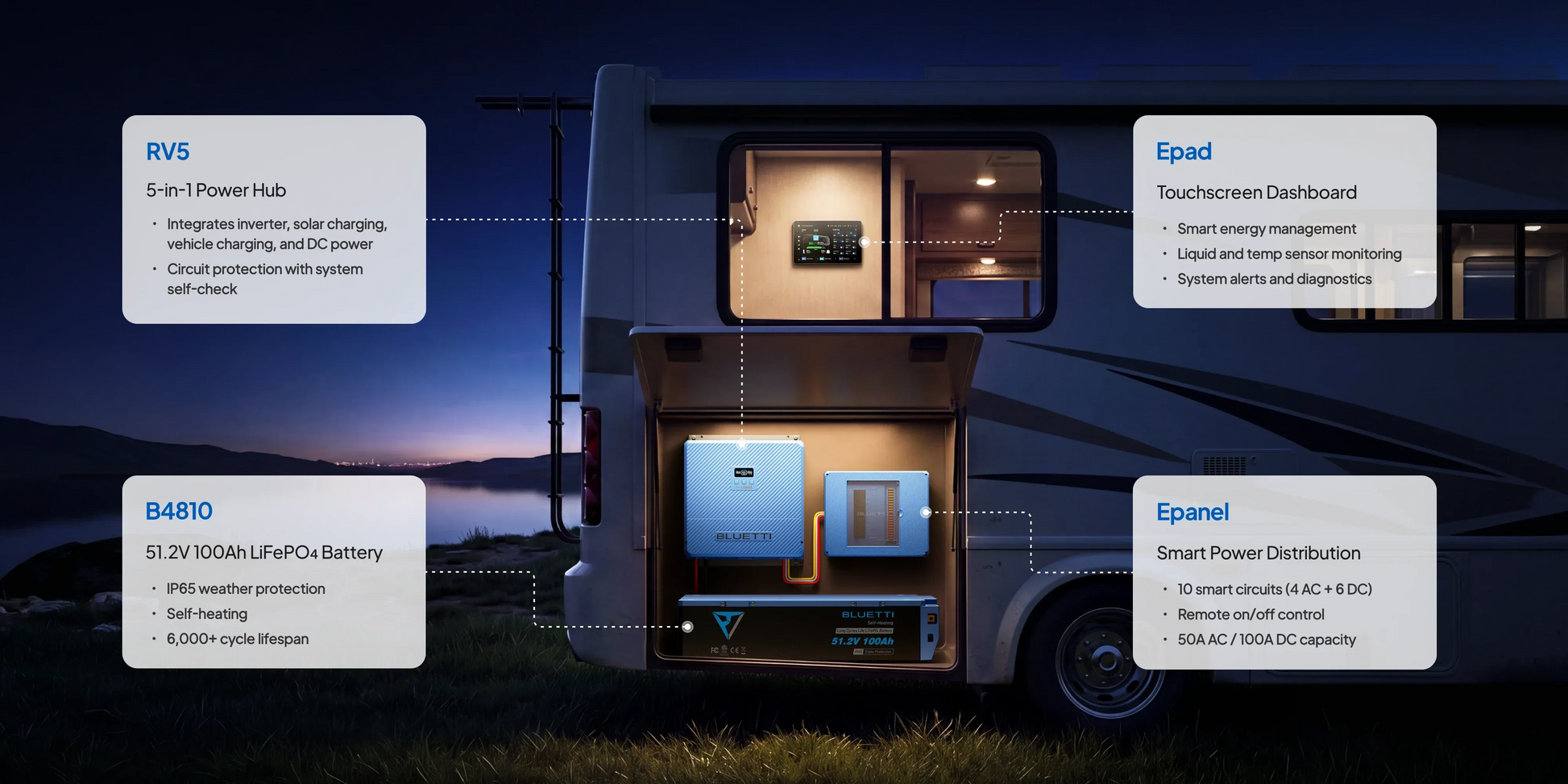

The BLUETTI RV5 and B4810 bundle combines a 5,000W RV power hub with one 51.2V, 100Ah LiFePO4 battery. It is designed for RVs, camper vans, custom conversions, and mobile-power installations that require integrated AC power, DC distribution, solar charging, vehicle charging, and 5,120Wh of stored energy.
Key Features
- 5,000W rated 120V AC output
- 5,120Wh B4810 LiFePO4 battery capacity
- 51.2V, 100Ah battery configuration
- Up to 10,000W AC surge output
- 12V or 24V DC distribution output
- Up to 1,620W DC output at 24V
- Up to 1,800W solar input
- Vehicle charging input of up to 600W at 12V or 1,200W at 24V
- UPS switchover time of 20 milliseconds or less
- Self-heating B4810 battery with IP65-rated protection
- Bluetooth battery monitoring through the BLUETTI app
Best For / Intended Use
- RV and camper electrical-system upgrades
- Van conversions and custom mobile-power installations
- Weekend and recreational RV use
- Customers who need the RV5 hub and battery but do not need the Epanel or Epad
- Systems using shore power, solar charging, vehicle charging, or compatible generator input
What Is Included
- BLUETTI RV5 Power Hub × 1
- BLUETTI B4810 51.2V, 100Ah LiFePO4 battery × 1
- RV5 M8 wood screws × 8
- RV5 anchors × 8
- RV5 drilling template × 1
- RV5 user manual × 1
- B4810 Ethernet cable × 1
- B4810 mounting hardware
- B4810 user manual and warranty card
Not Included: Epanel, Epad, solar panels, solar-panel mounting equipment, EV charging cable, dedicated starter battery, and installation labor.
Wiring confirmation required: The exact RV5-to-B4810 connection-cable package supplied with this bundle must be confirmed with the fulfillment source before activation.
Technical Specifications

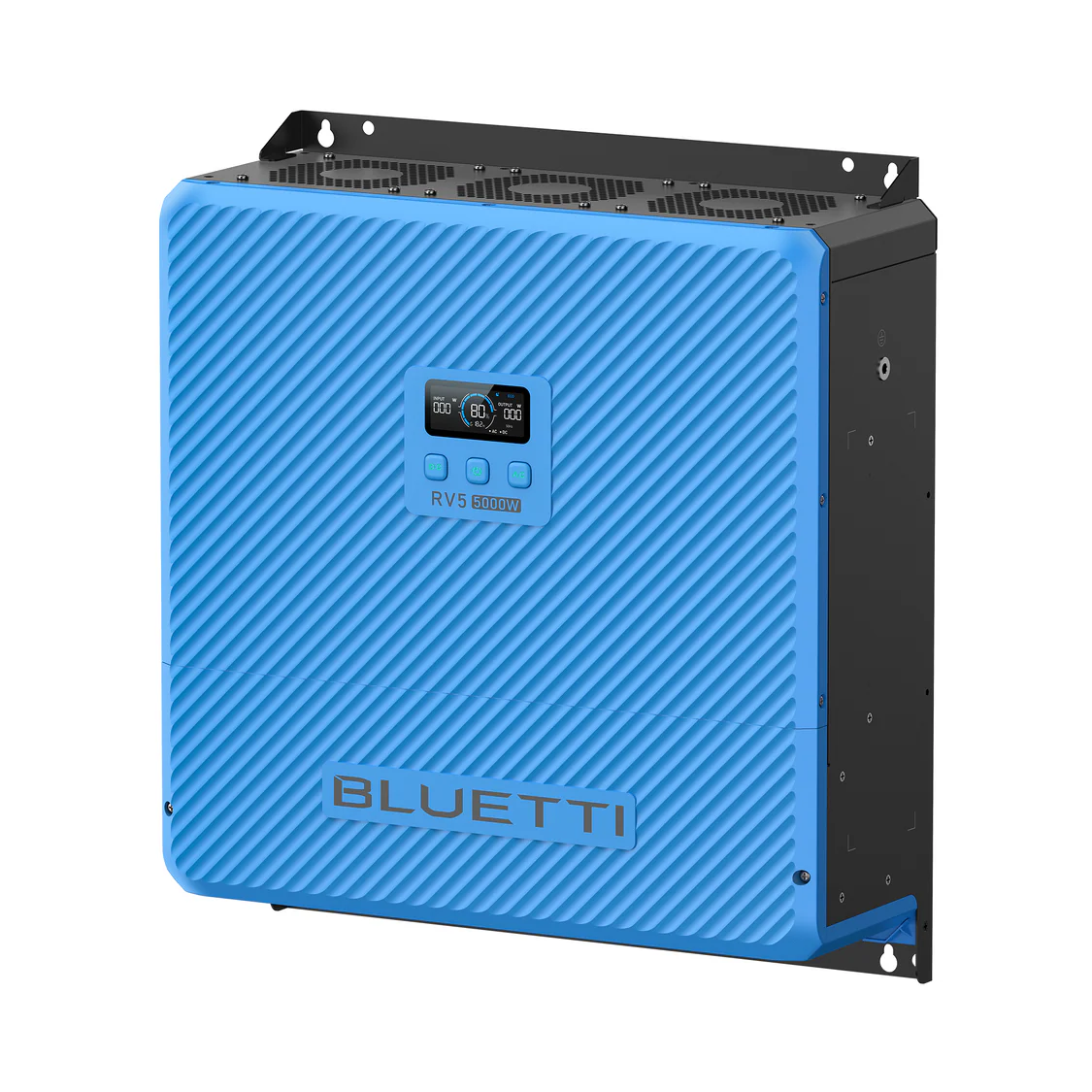

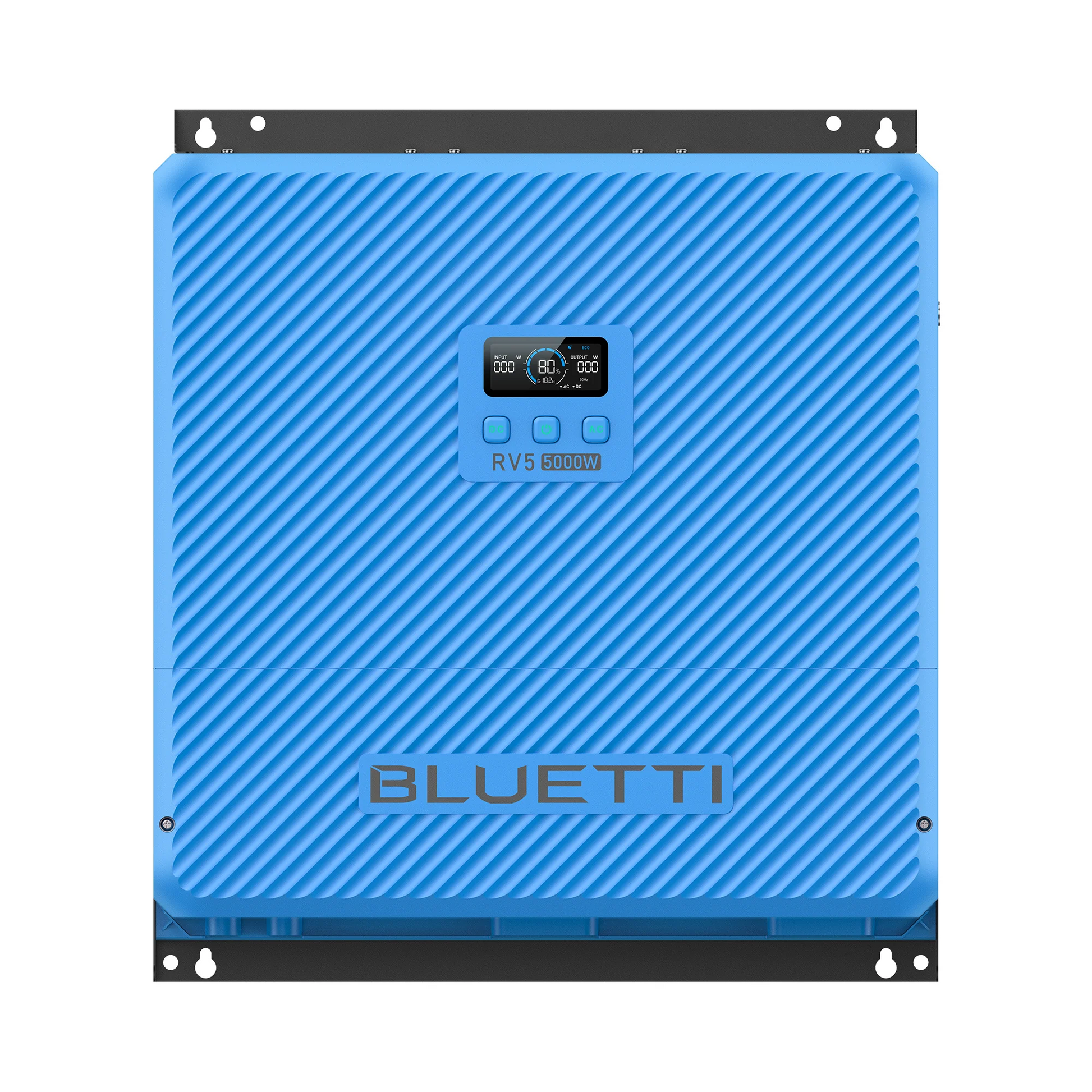

RV5 Power Hub
| Model | RV5 |
|---|---|
| Rated AC Output | 5,000W |
| AC Output Voltage | 120V |
| Rated AC Output Current | 42A |
| UPS Switchover Time | 20 milliseconds or less |
| Maximum Solar Input | 1,800W |
| Solar Input Voltage | 12V–50V |
| Maximum Solar Input Current | 50A |
| Vehicle Charging Input | 600W at 12V or 1,200W at 24V |
| DC Output Voltage | 12V or 24V |
| DC Output Current | 100A at 12V or 60A at 24V |
| Rated DC Output | 1,360W at 12V or 1,620W at 24V |
| Maximum Combined Load | 6,000W, depending on battery type and quantity |
| Dimensions | 17.72 × 19.69 × 6.30 inches (450 × 500 × 159.9mm) |
| Weight | Approximately 30.86 lb (14kg) |
| Operating Temperature | -4°F to 131°F (-20°C to 55°C) |
| Storage Temperature | -4°F to 104°F (-20°C to 70°C) |
| Maximum Operating Humidity | 95% |
| Manufacturer-Listed Certification | UL 458 |

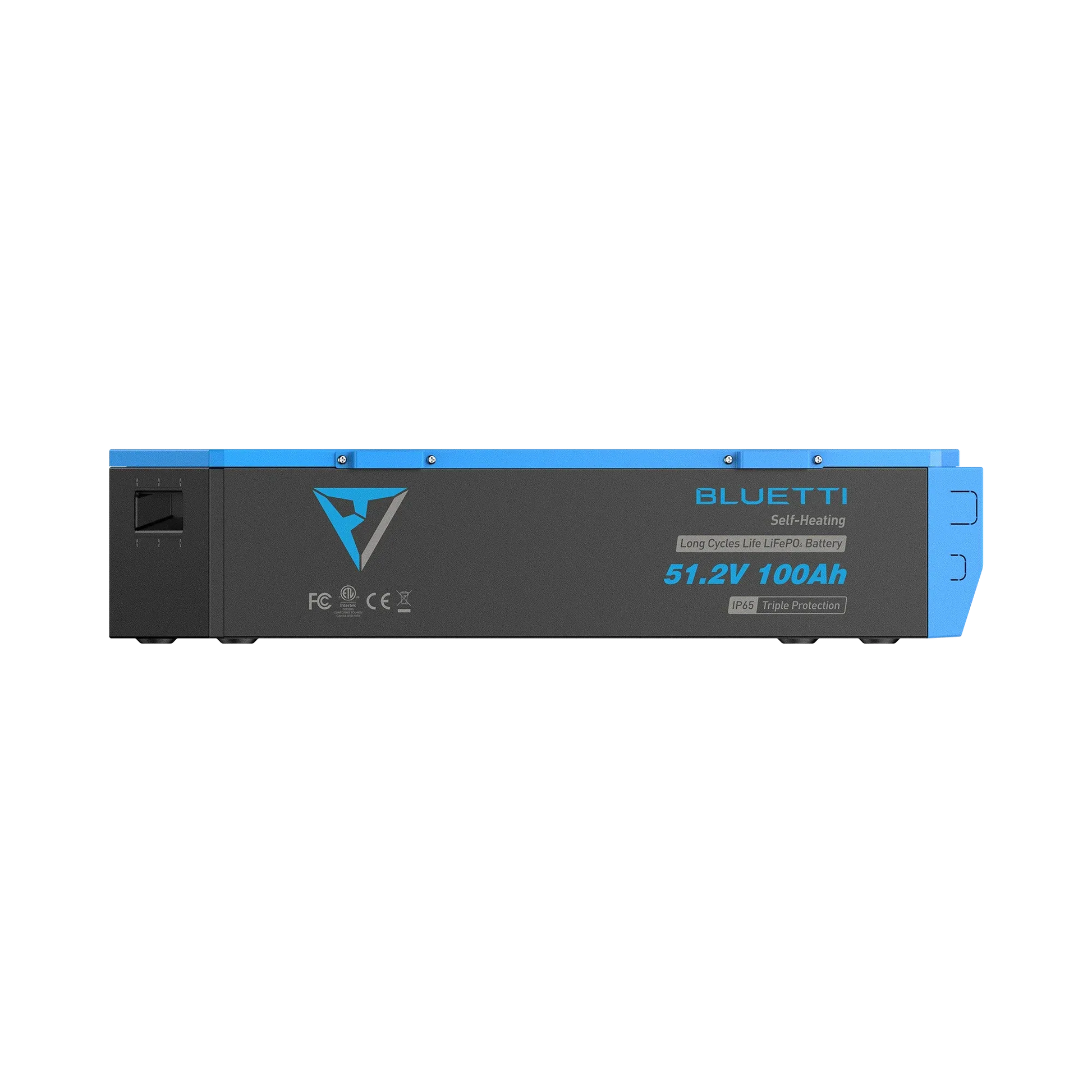

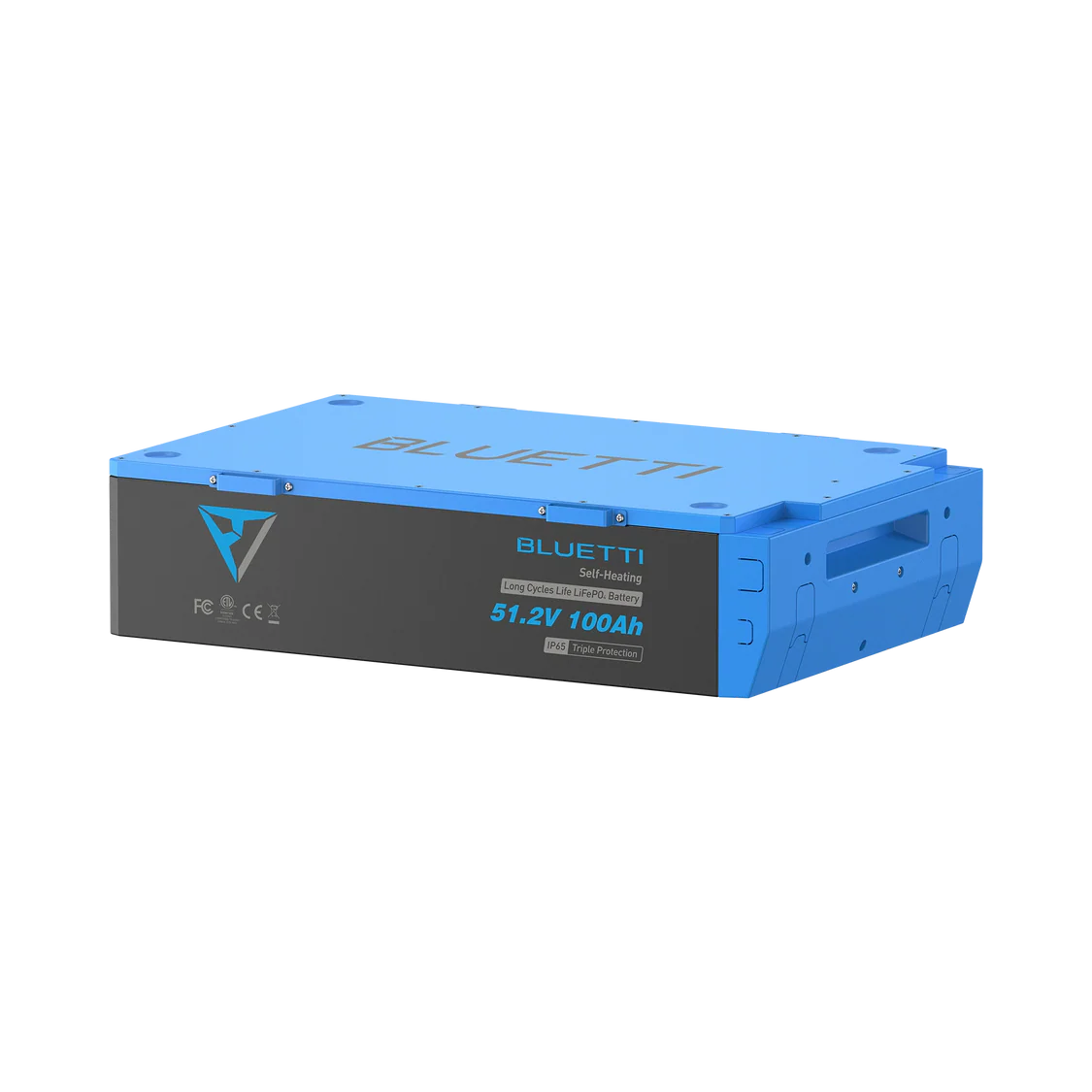

B4810 Battery
| Model | B4810 |
|---|---|
| Battery Capacity | 5,120Wh |
| Nominal Voltage | 51.2V |
| Capacity | 100Ah |
| Battery Chemistry | LiFePO4 lithium iron phosphate |
| Cycle Life | 6,000 cycles to 70% remaining capacity |
| Protection Rating | IP65 |
| Dimensions | 23.94 × 14.96 × 5.71 inches (608 × 380 × 145mm) |
| Weight | Approximately 101.4 lb (46kg) |
Setup and Compatibility
The B4810 is the matched 51.2V battery used with the BLUETTI RV5. This configuration supplies one battery for 5,120Wh of stored energy.
The RV5 and B4810 require correct battery communication, power cables, grounding, overcurrent protection, AC wiring, DC wiring, mounting, ventilation, and configuration. Confirm that the fulfillment package contains all required RV5-to-B4810 connection cables before ordering or activating this listing.
The Epanel and Epad are optional components and are not included. Without the Epanel, the installer must provide an appropriate compatible AC and DC distribution arrangement. Without the Epad, system monitoring and control may be handled through the RV5 interface or supported app functions.
Installation must follow the current BLUETTI manuals and applicable electrical requirements. Use a qualified installer when the person completing the installation is not experienced with high-current AC and DC RV systems.
Shipping and Delivery
This item ships directly from our fulfillment partner or manufacturer.
Freight charges are calculated at checkout.
Estimated Delivery:
- Processing: 1–2 business days
- Delivery: 5–10 business days depending on location
Oversized or high-value items may require additional handling or scheduled delivery.
Tracking information will be provided once your order ships.
See our Shipping Policy for full details.
Warranty and Returns
Warranty service and returns are subject to the applicable manufacturer terms and RoboSmartDepot's current Warranty and Refund policies. Review those policies before ordering.
Safety, Compliance, and Important Notes
- This product contains a high-capacity lithium battery.
- Disconnect all power sources before installation, wiring, inspection, or maintenance.
- Use correctly rated cables, terminals, fuses, breakers, grounding, and distribution equipment.
- Install the RV5 in a dry, protected, properly ventilated location.
- Do not block the RV5 cooling fans or ventilation openings.
- Secure the B4810 according to BLUETTI mounting instructions.
- Do not use the equipment, cables, or connectors if they appear damaged.
- Follow the current BLUETTI RV5 and B4810 installation and operating instructions.
