Heybike Horizon Full-Suspension Folding E-Bike - Top Speed 28 MPH

Product Overview

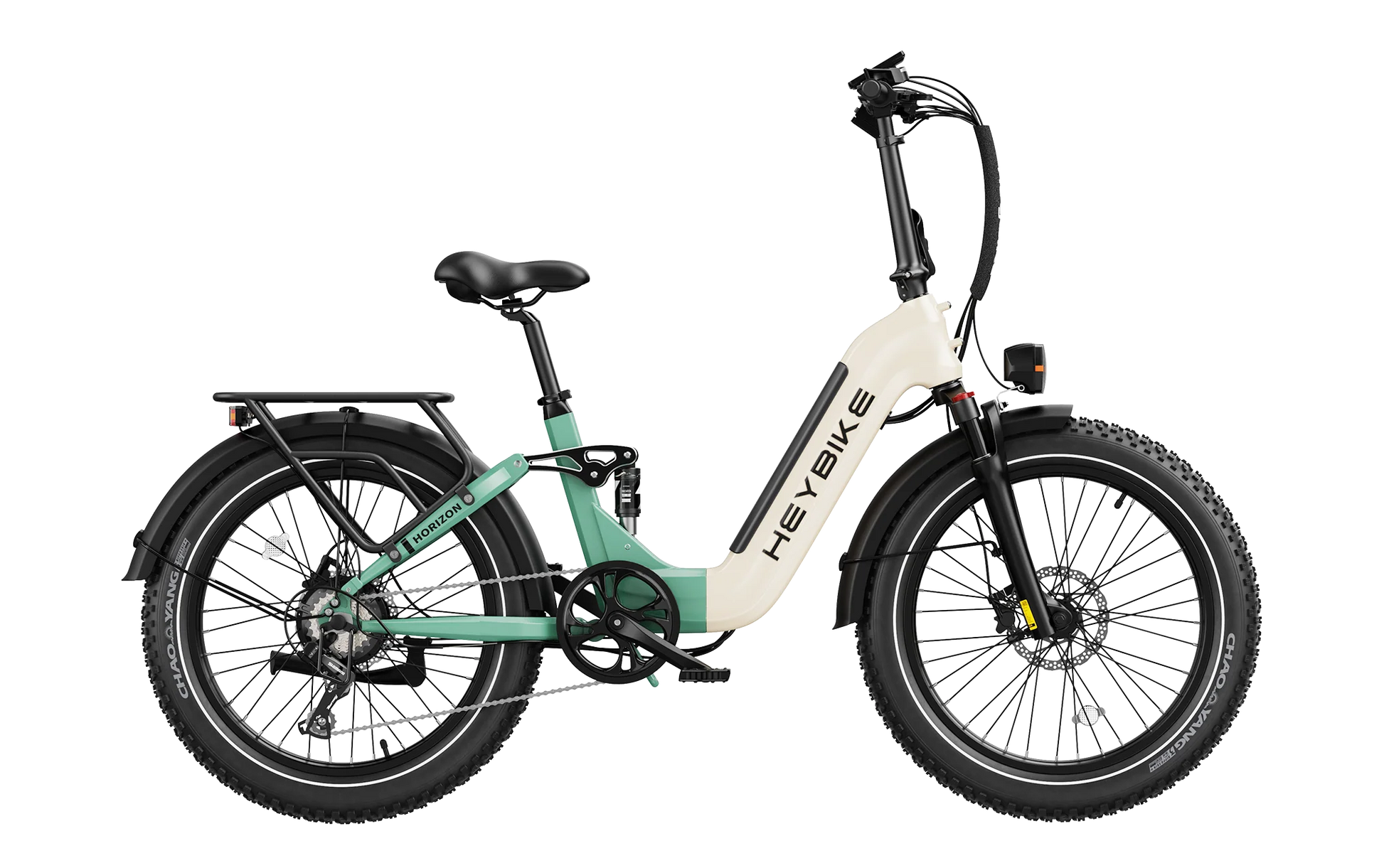

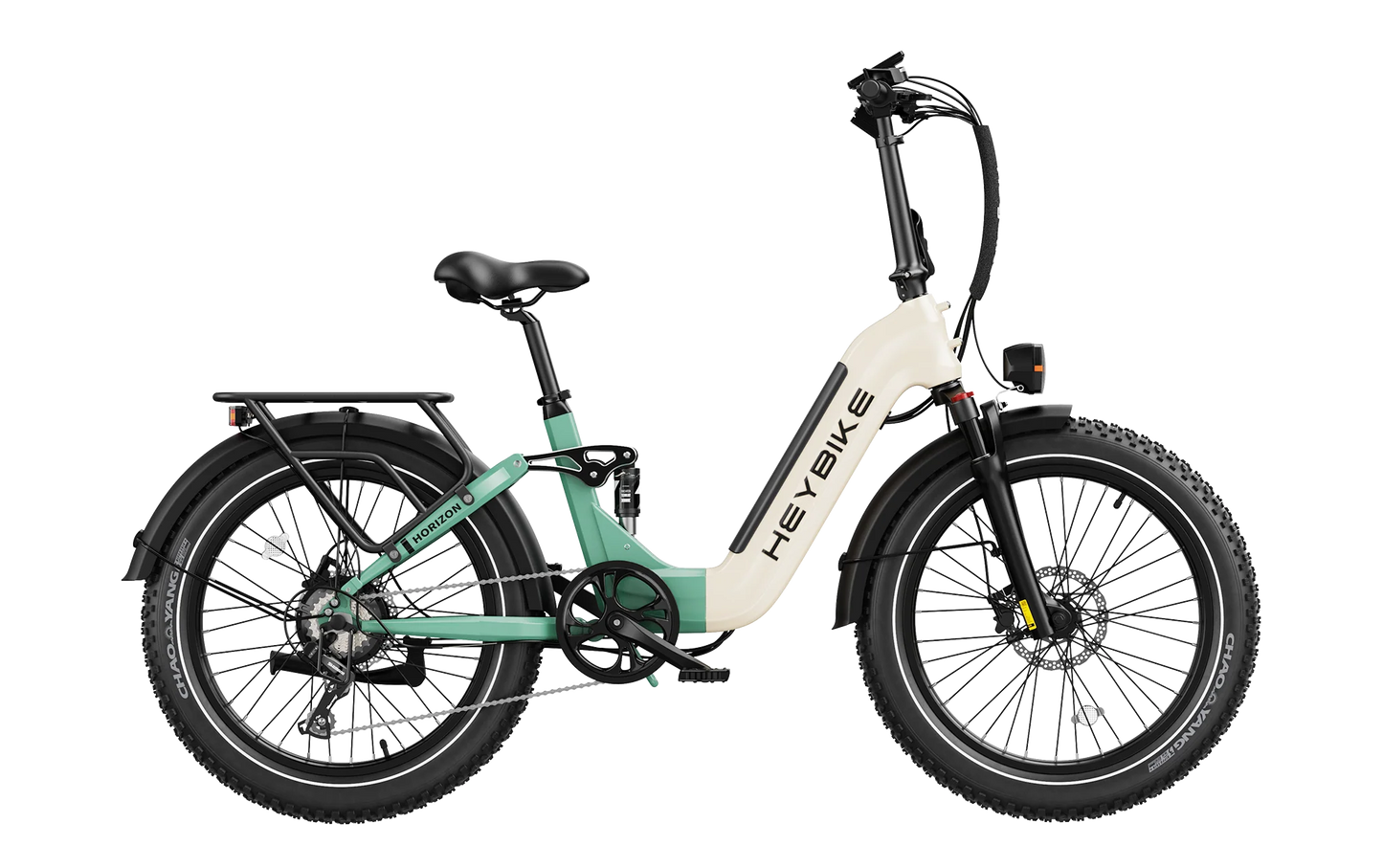

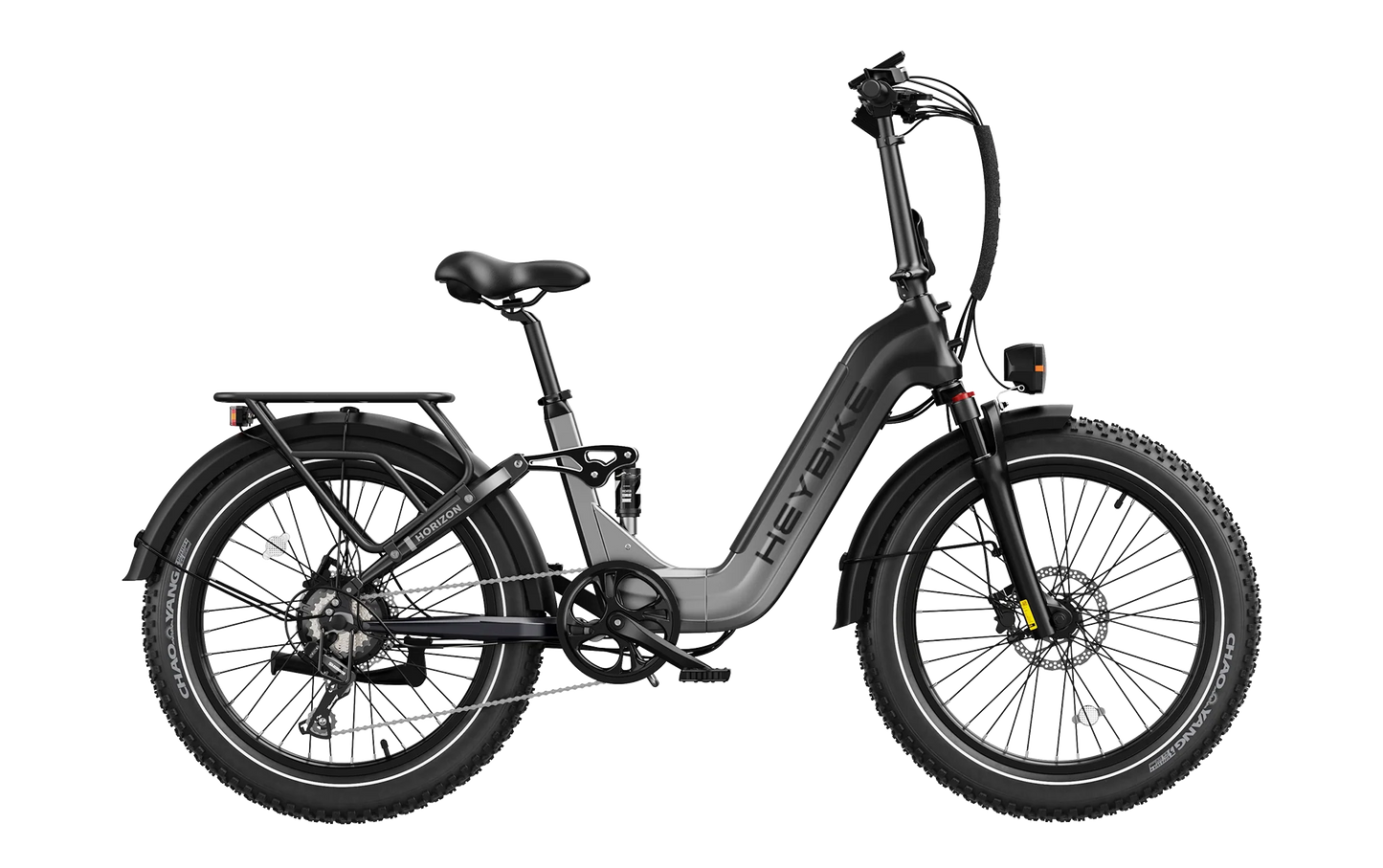

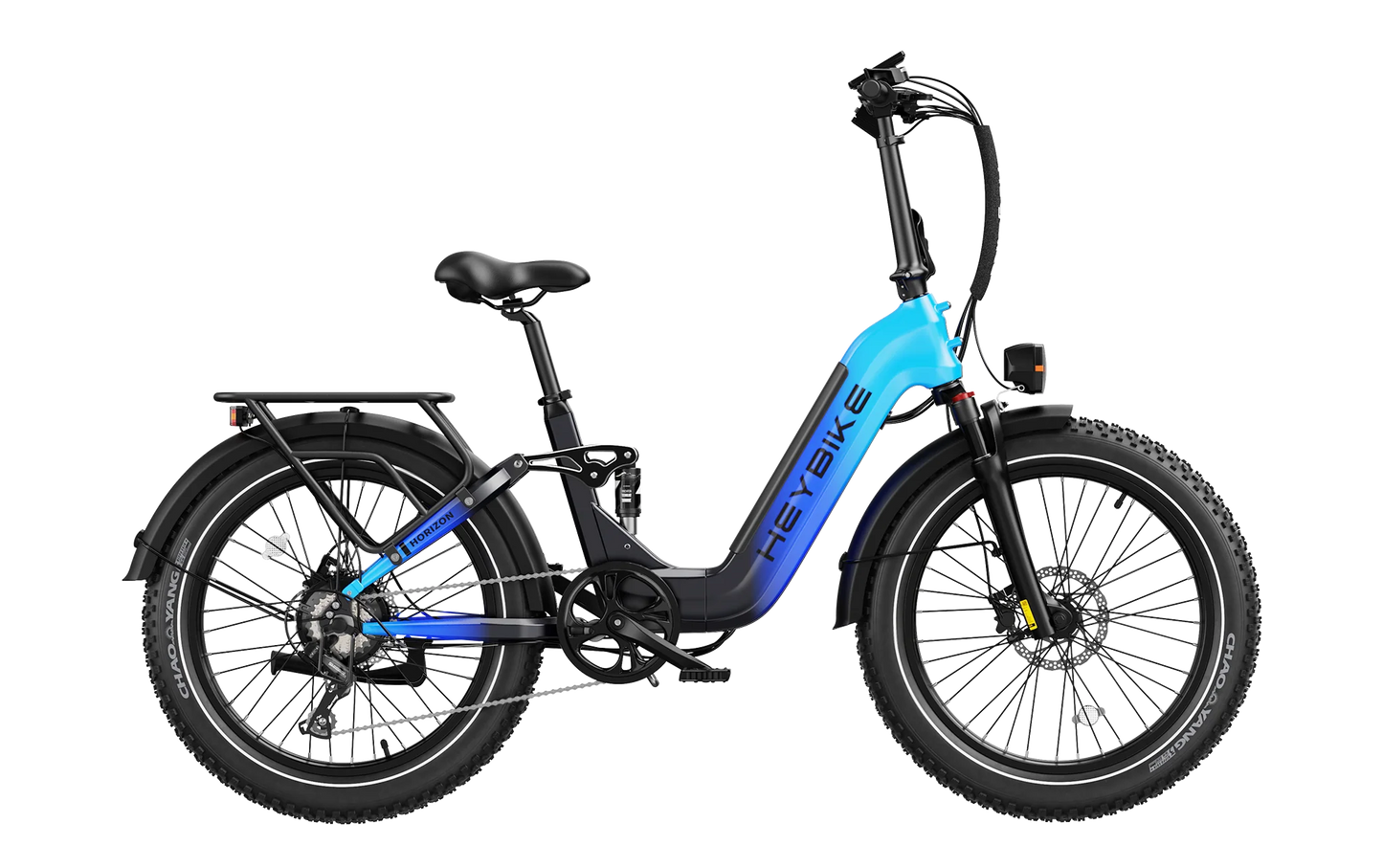

The Heybike Horizon is a full-suspension folding electric bike with 24" × 4.0" fat tires, a low-step folding frame, hydraulic disc brakes, and a 750W motor with 1400W peak output.

It is built for riders who want a compact folding e-bike with all-terrain capability, full suspension comfort, and a manufacturer-listed Top Speed 28 MPH.

Key Features

• 750W rear hub motor with 1400W peak output
• 80 N·m torque
• Top Speed 28 MPH
• 692Wh removable lithium-ion battery
• Up to 55 miles of range, depending on rider weight, terrain, speed, temperature, assist level, and riding conditions
• 24" × 4.0" puncture-protection fat tires
• Full suspension system

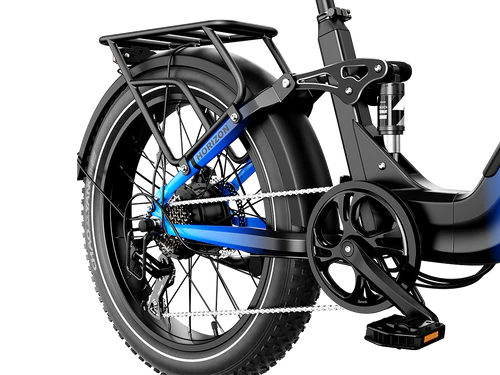

• Horst-link rear suspension and hydraulic front suspension
• Hydraulic disc brakes
• Shimano 7-speed rear derailleur

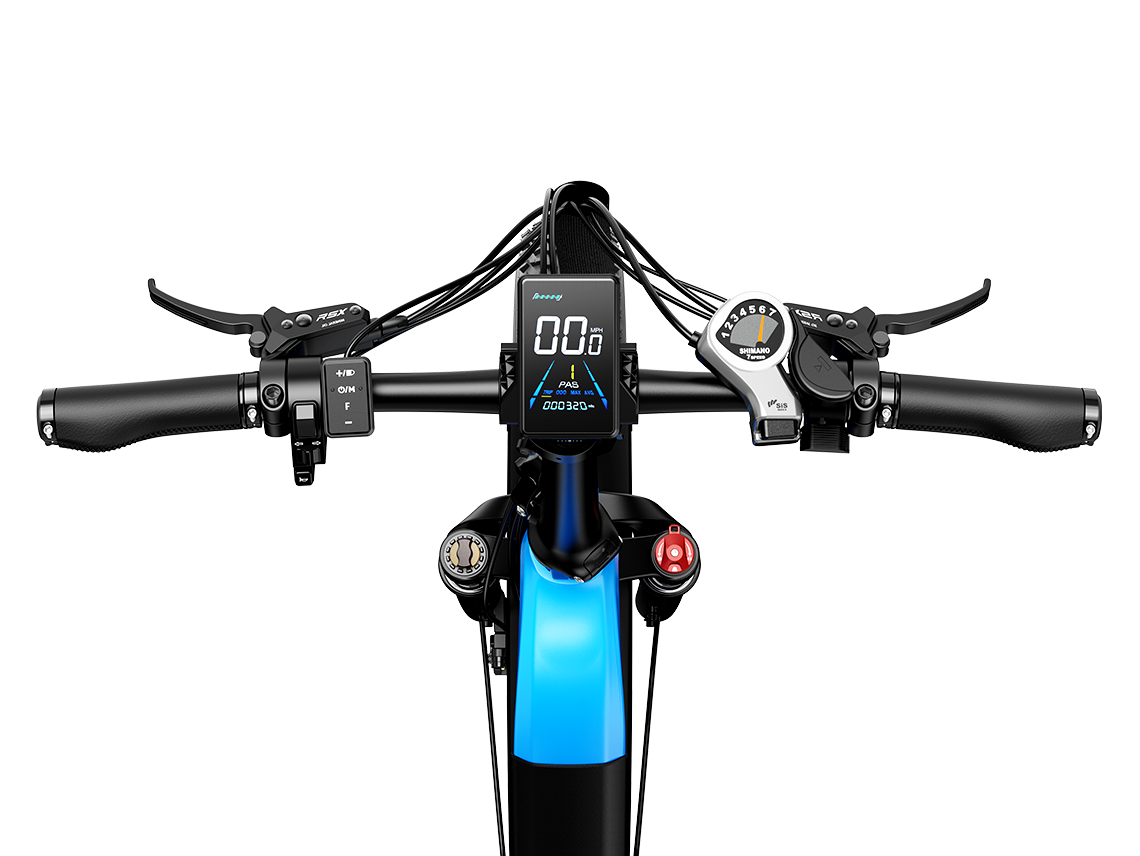

• LCD display
• LED headlight with auto-on feature
• Integrated taillight with brake light
• Rear rack included
• Fenders included

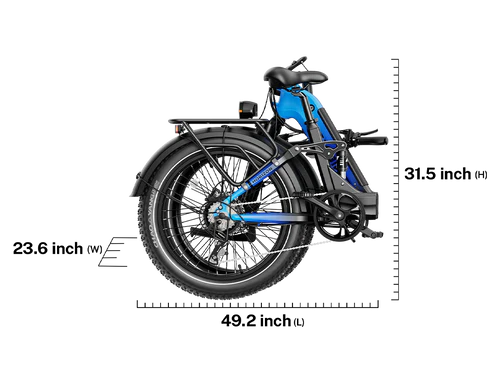

• Folding low-step frame
• 330 lb max load

Best For / Intended Use

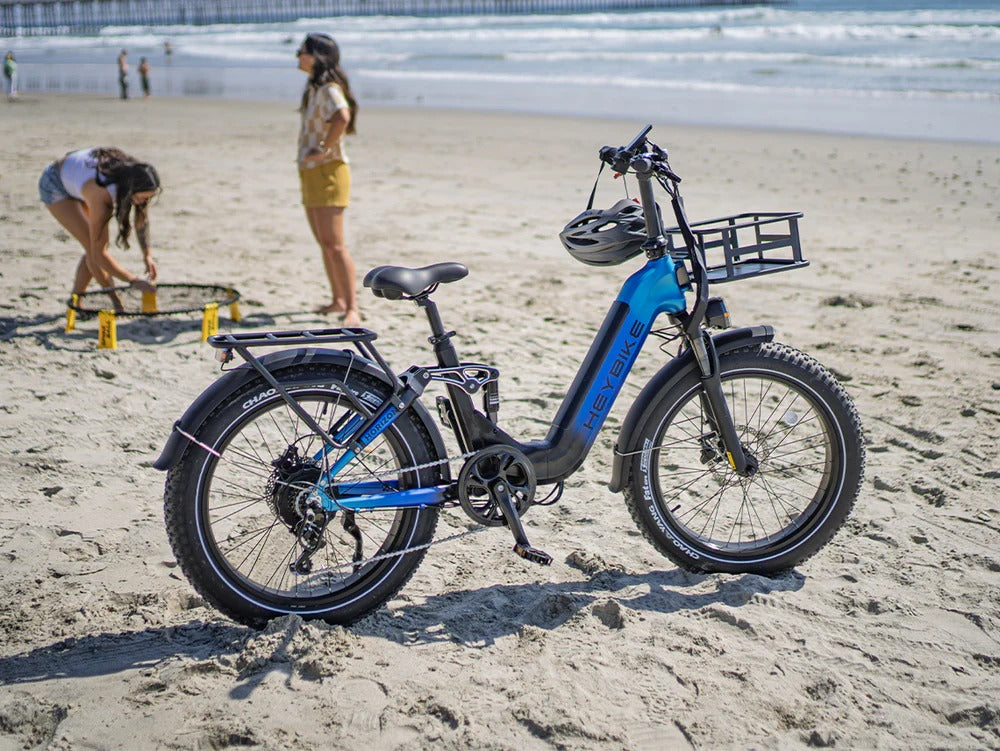

The Heybike Horizon is best for riders who want a folding fat tire e-bike for mixed-surface riding, everyday recreational use, campground travel, path riding, and storage-limited spaces.

The folding frame makes it easier to store or transport compared with a standard full-size e-bike, while the full suspension and fat tires help improve comfort on uneven surfaces.

What Is Included

The official screenshots provided do not show a complete package contents list for the Horizon. Confirm the exact included items before adding a detailed box list.

Technical Specifications

• Motor: 750W rear hub motor, 1400W peak output
• Torque: 80 N·m
• Top Speed: 28 MPH
• Battery: 692Wh removable lithium-ion battery
• Range: Up to 55 miles
• Charger: 4A, 54.6V output, 100V–220V AC input
• Display: LCD display
• Rear Derailleur: Shimano 7-speed
• Frame: Aluminum alloy folding frame

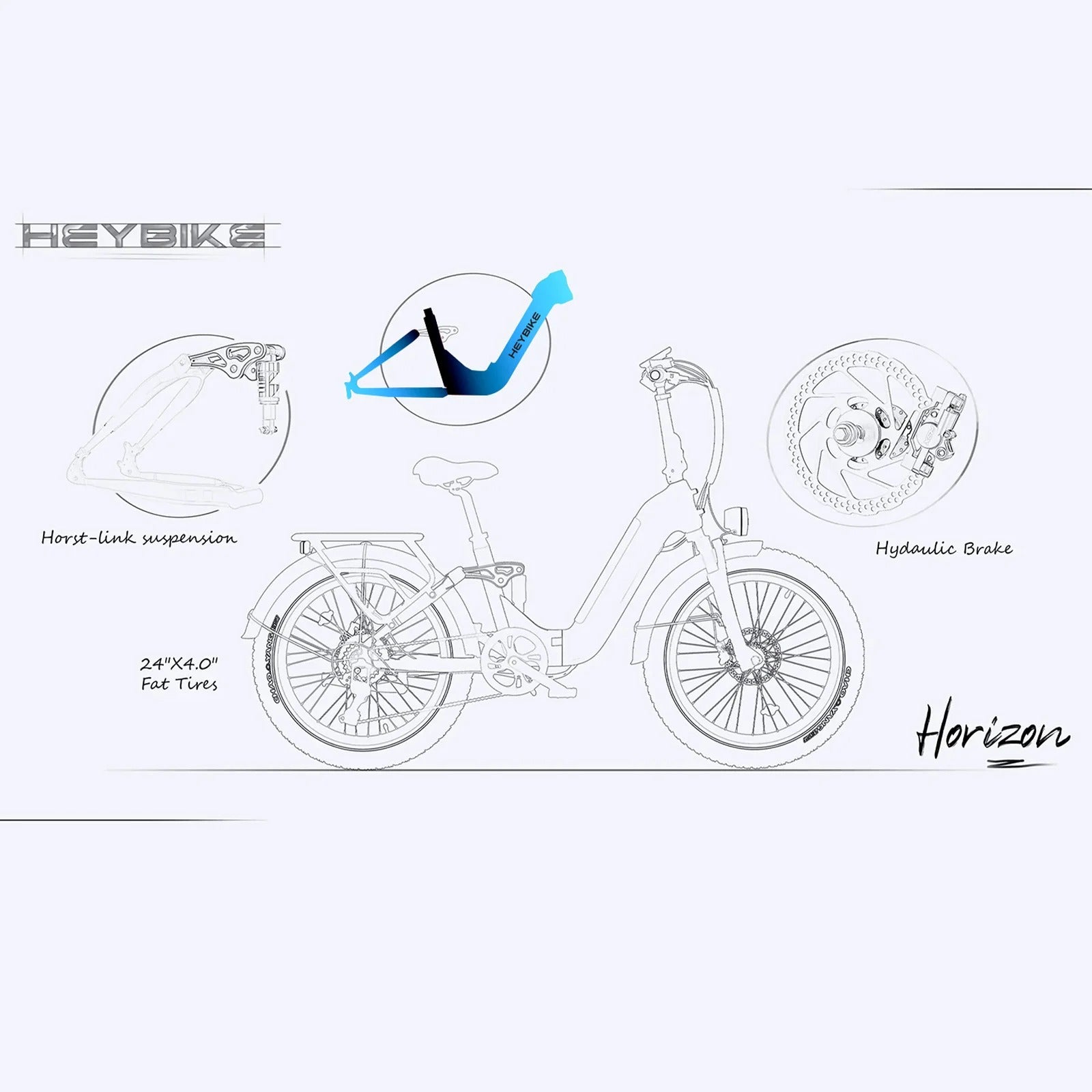

• Suspension: Full suspension

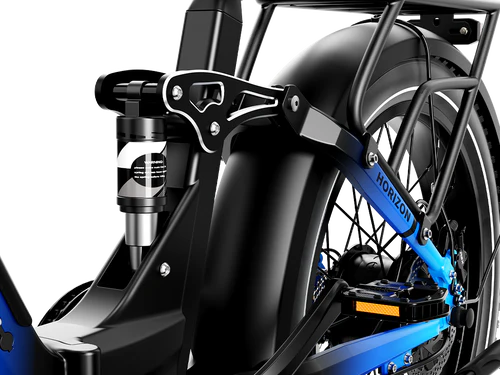

• Rear Suspension: Horst-link suspension

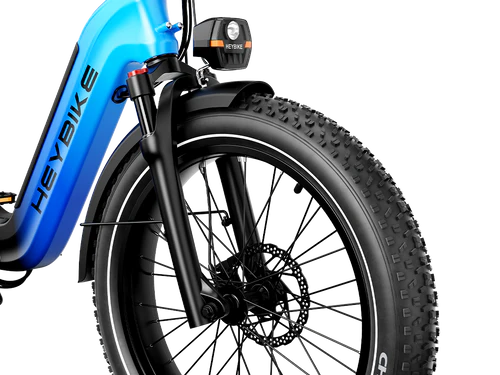

• Front Suspension: Hydraulic front suspension
• Brakes: Hydraulic disc brakes
• Tires: 24" × 4.0" puncture-protection fat tires
• Spokes: Aluminum alloy
• Light: LED headlight with auto-on feature and integrated taillight with brake light
• Kickstand: Alloy kickstand
• Max Load: 330 lb

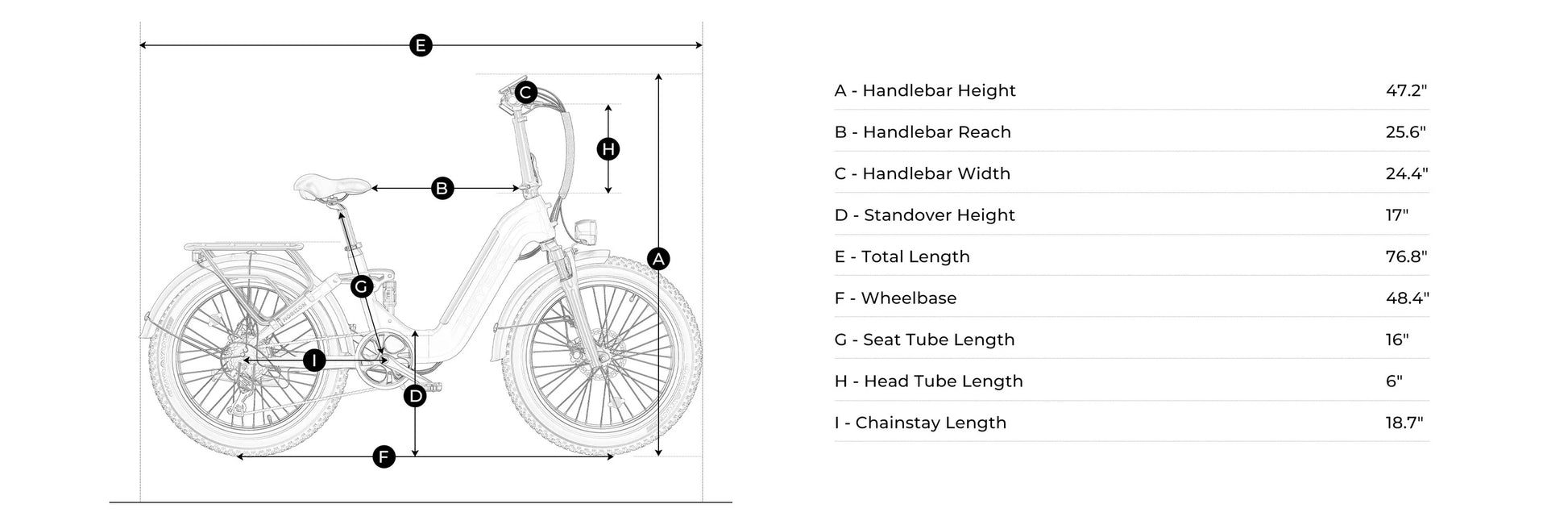

Setup, Fit, and Compatibility

• Handlebar Height: 47.2"
• Handlebar Reach: 25.6"
• Handlebar Width: 24.4"
• Standover Height: 17"
• Total Length: 76.8"
• Wheelbase: 48.4"
• Seat Tube Length: 16"
• Head Tube Length: 6"
• Chainstay Length: 18.7"

Shipping & Delivery

This item ships directly from our fulfillment partner or manufacturer.

Freight charges are calculated at checkout.

Estimated Delivery:
• Processing: 1–2 business days
• Delivery: 5–10 business days depending on location

Oversized or high-value items may require additional handling or scheduled delivery.

Tracking information will be provided once your order ships.

See our Shipping Policy for full details.

Warranty and Returns

Warranty and return coverage follow RoboSmartDepot’s published store policies and the applicable manufacturer terms.

Safety, Compliance, and Important Notes

The Heybike Horizon has a manufacturer-listed Top Speed 28 MPH. Always check local e-bike laws before riding, including rules for rider age, helmet use, road/path access, throttle use, and speed limits.

Riders should wear appropriate safety gear and use the bike only where permitted.
