Himiway C5 Electric Motorbike

Product Overview

The Himiway C5 is an electric motorbike-style model with a 6061 aluminum frame, 750W brushless gear motor, 48V 20Ah LG battery, extended seat, and 20" x 4.0" tires. It is built for riders who want a stronger, heavier-duty electric ride than a standard commuter e-bike, with Sport and Ultra variants available.

Key Features

• 750W brushless gear motor
• LG 48V 20Ah battery
• 60–80 mile range
• 6061 aluminum frame
• 20" x 4.0" tires
• Extended seat
• Thumb throttle
• 48V / 22A controller
• US standard 3.0A smart charger
• Sport and Ultra variants available

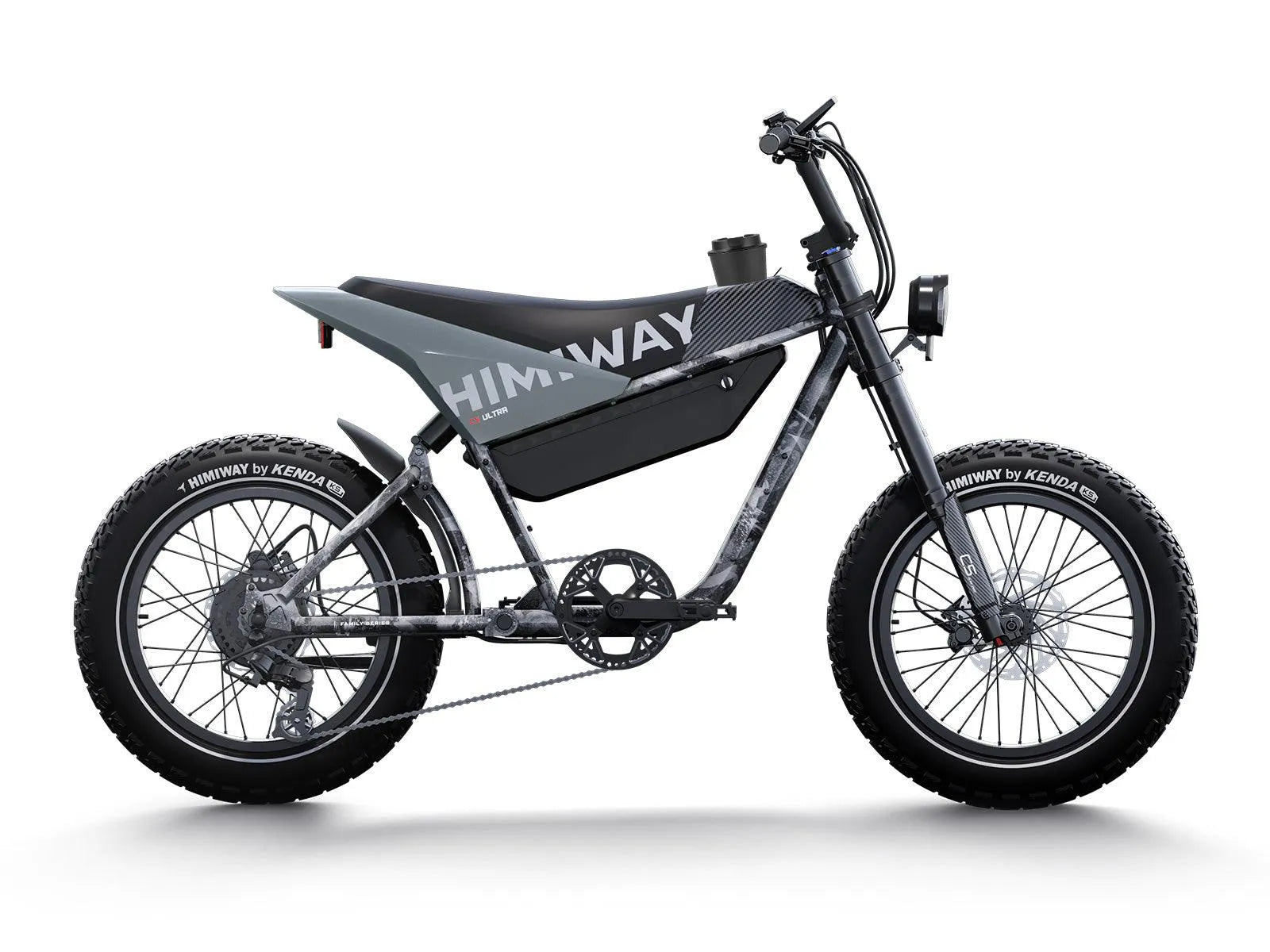

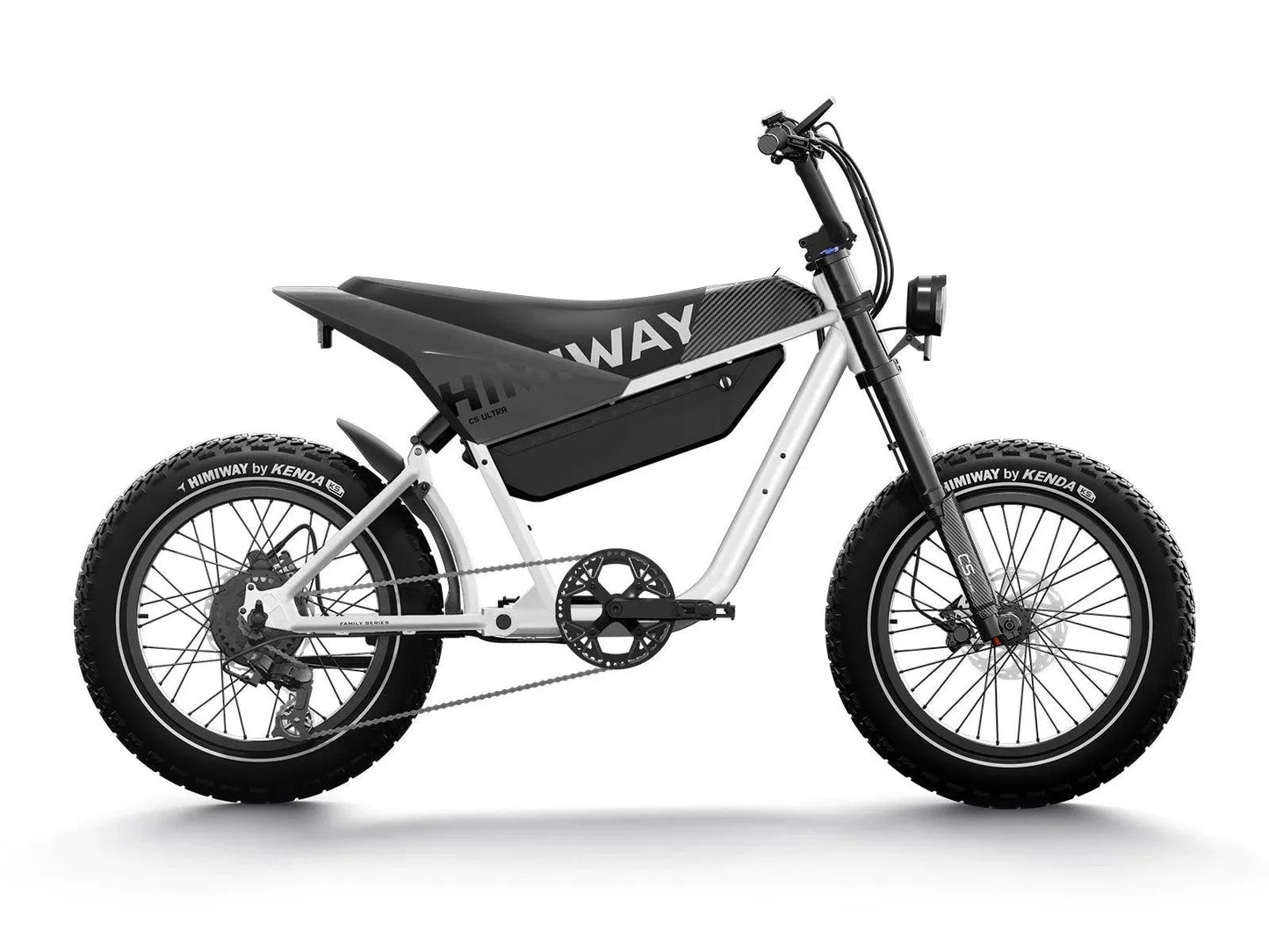

• Black, Ink Gray, and White color options
• Recommended rider height: 5'4"–6'3"
• Bike weight: 88 lb
• Maximum system weight: 330 lb

Best For / Intended Use

The C5 is best for riders who want a motorbike-style electric model with a long seat, wide tires, throttle control, and a more substantial frame than a standard city e-bike. It is suited for private-property riding, local riding where permitted, paved surfaces, mixed surfaces, and riders who prefer a motorcycle-inspired riding position.

What Is Included

• Himiway C5 electric motorbike
• US standard 3.0A smart charger

Technical Specifications

Frame: 6061 aluminum
Motor: 750W brushless gear motor
Battery: LG 48V 20Ah
Range: 60–80 miles
Controller: 48V / 22A
Throttle: Thumb throttle
Charger: US standard 3.0A smart charger
Rider height: 5'4"–6'3"
Bike weight: 88 lb
Maximum system weight: 330 lb
Seat: Extended seat
Pedals: Aluminum pedals
Kickstand: Aluminum kickstand

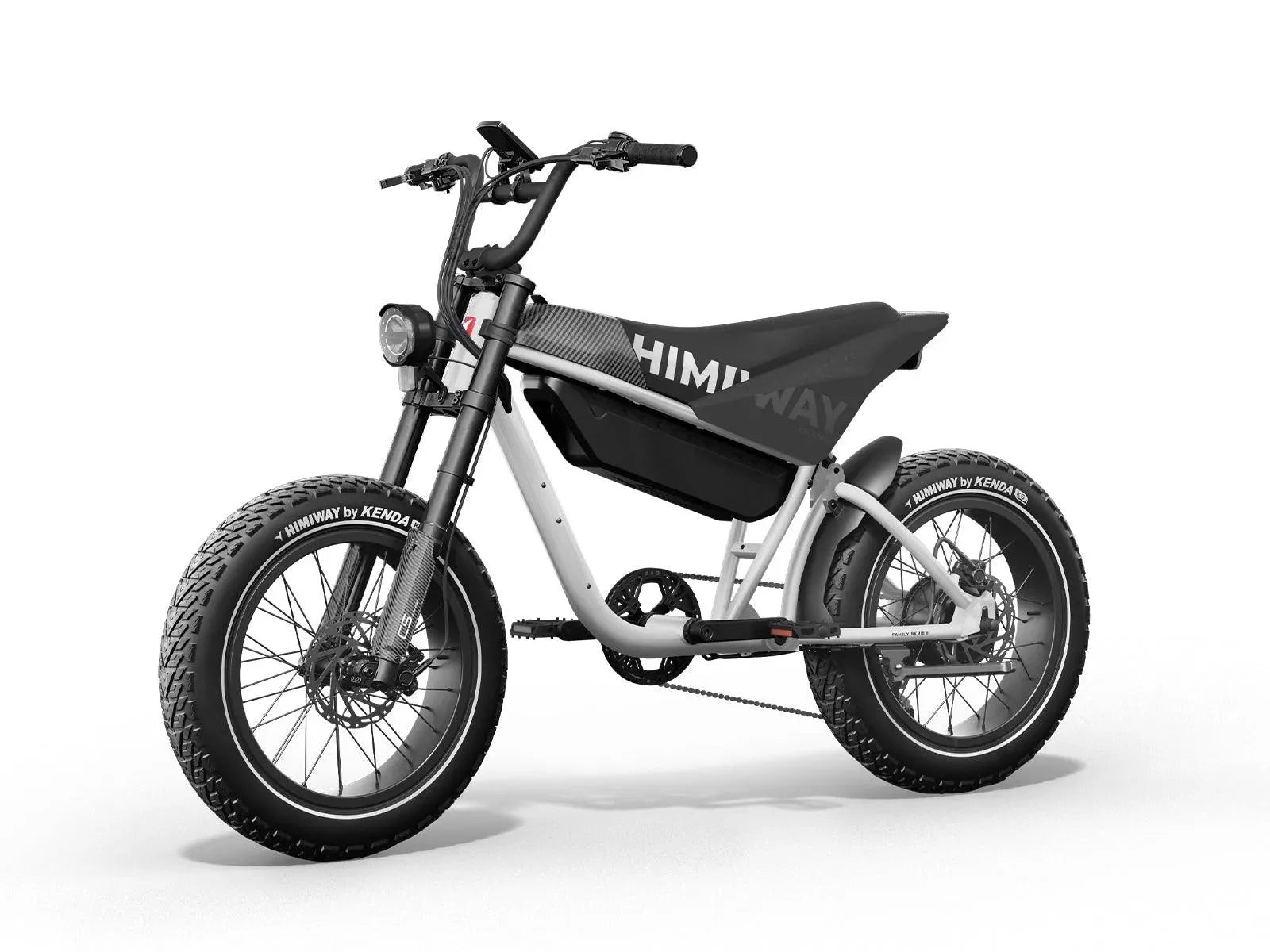

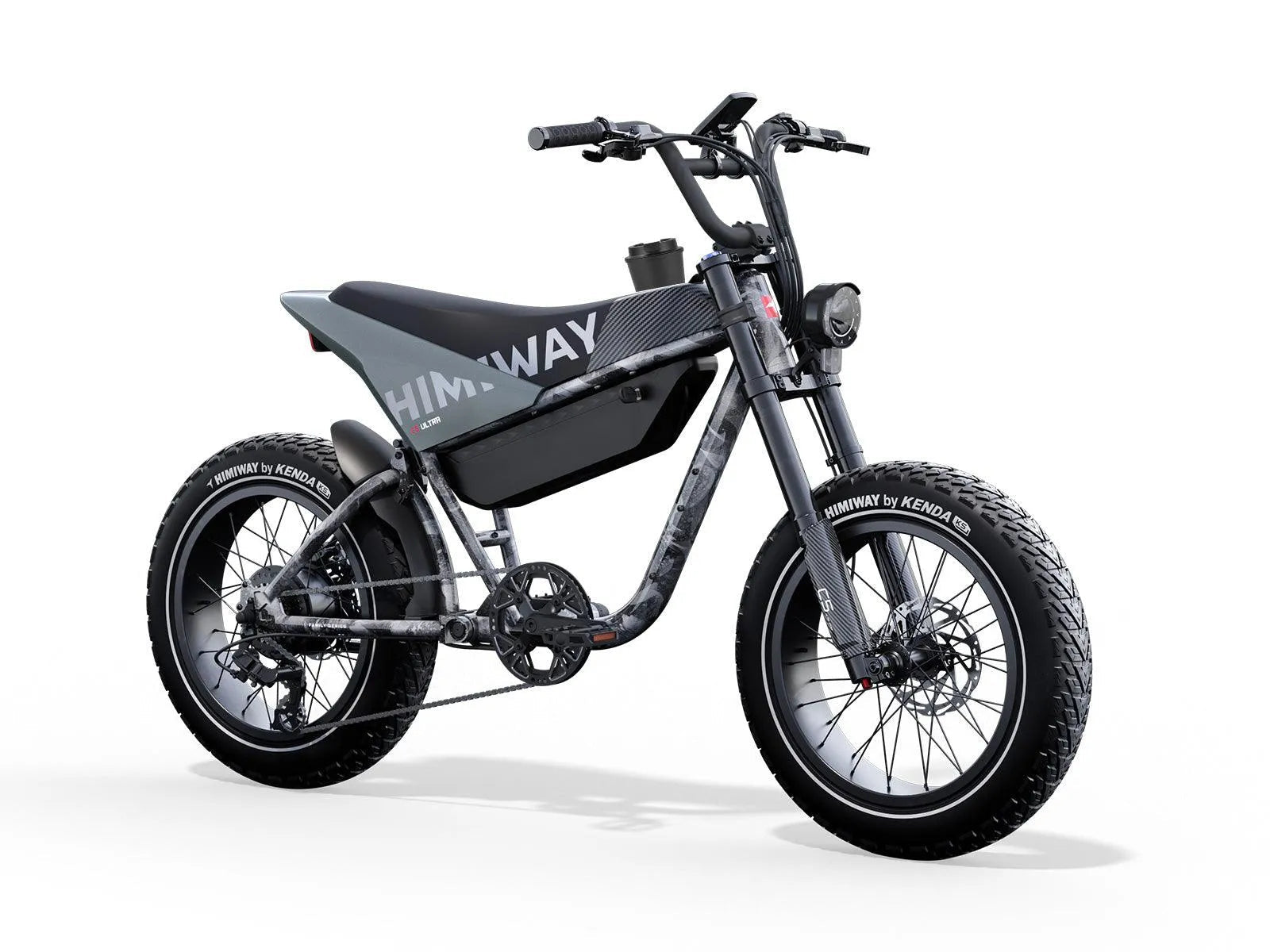

Ultra variant:
Fork: KKE R150S coil spring fork with compression and rebound adjustment, 140mm travel, 15 x 150mm axle
Shock: EXA A5-RE 180 x 47mm
Tires: Kenda x Himiway 20" x 4.0"
Display: Himiway C2 LCD display
Sensors: Torque sensor, speed sensor, brake sensor
Drivetrain: Shimano Altus M310 7-speed
Cassette / freewheel: Shimano MF-TZ500-7, 14–28T
Chain: KMC Z8.3 EPT 130L
Front brake: Tektro HD-E3520 hydraulic brake
Rear brake: Tektro HD-E3520 hydraulic brake
Rotors: 180mm front / 180mm rear
Stem: 3D forged alloy, 40mm extension
Handlebar: YC-B086, 22.2 x 31.8 x 720mm
Light: 48V LED light

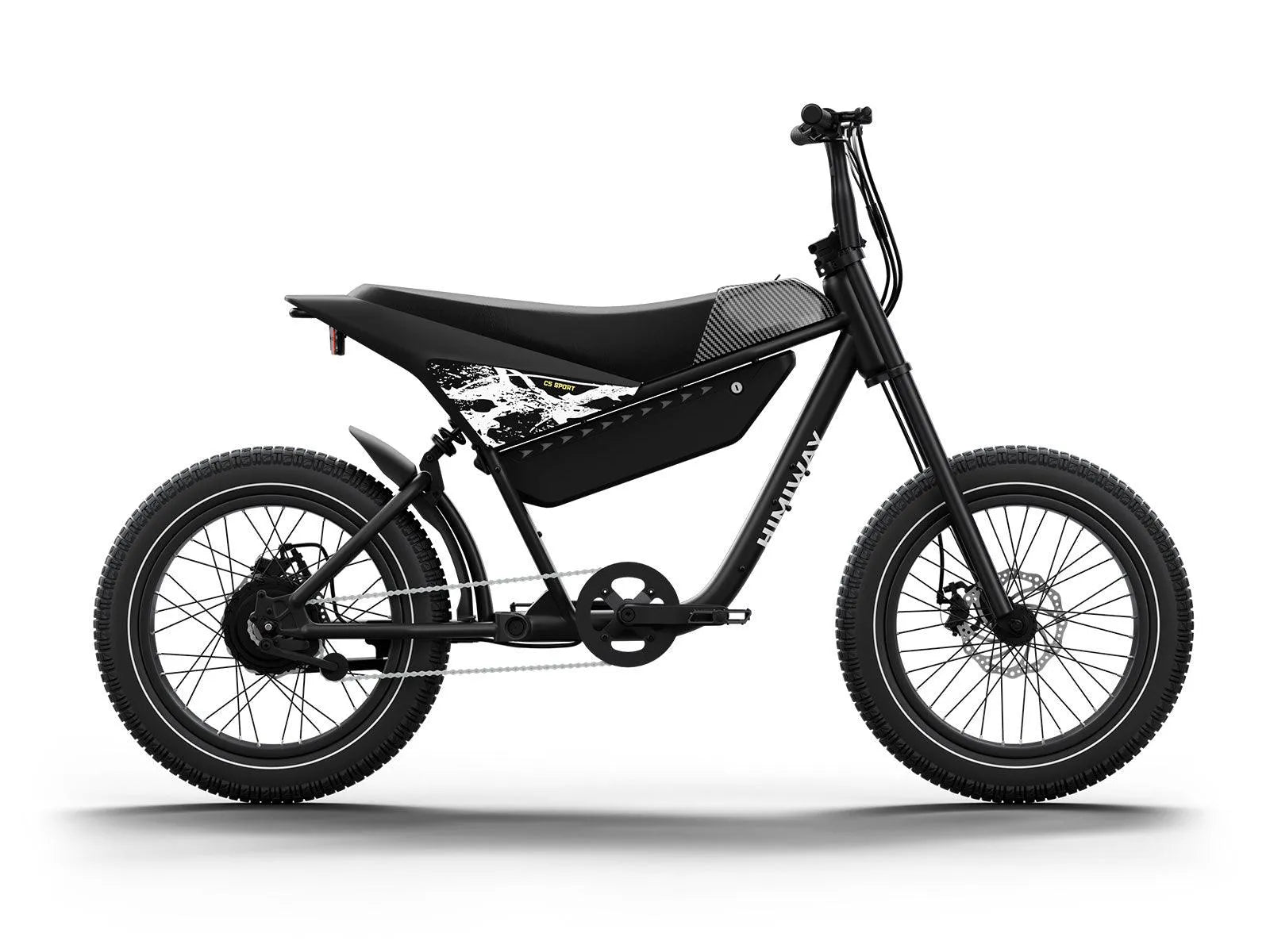

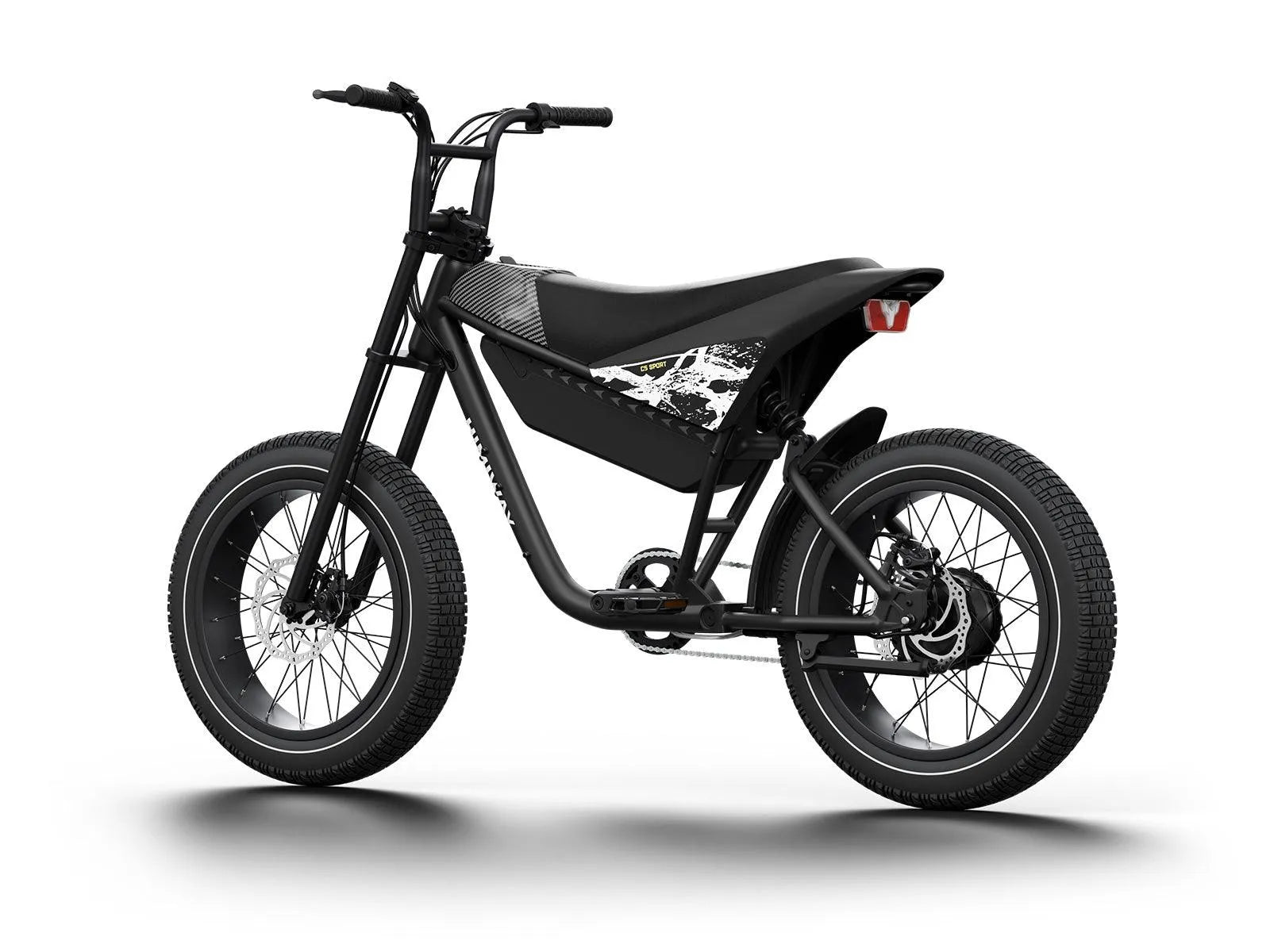

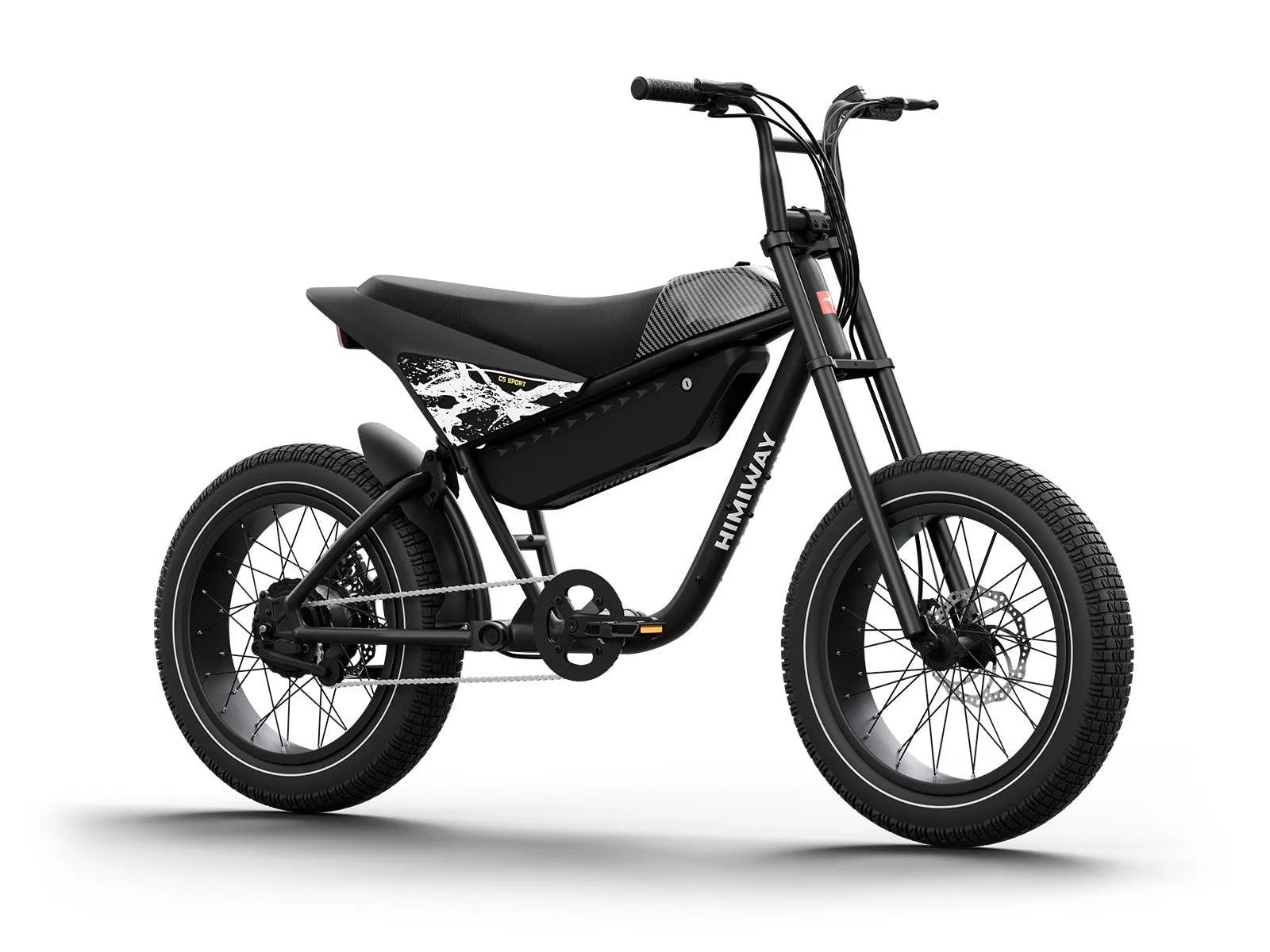

Sport variant:
Fork: Double crown rigid fork
Shock: Coil rear shock, 180 x 47mm, 700 lb spring
Tires: Innova IA-2149 20" x 4.0"
Display: Himiway LED display
Sensors: Cadence sensor, speed sensor, brake sensor
Crankset: 38T, 142mm
Freewheel: 16T single-speed freewheel
Chain: KMC Z1eHX 120L
Front brake: Nutt JAK-8 mechanical disc brake
Rear brake: Nutt JAK-8 mechanical disc brake
Rotors: 180mm front / 180mm rear
Stem: Alloy stem, 40mm extension
Handlebar: JY-AL-SMT2, W680 x L211 x 22.2 x 31.8 x 10°

Setup, Fit, Compatibility, and Assembly

The Himiway C5 is listed for riders approximately 5'4" to 6'3". Choose the Sport or Ultra variant based on the drivetrain, suspension, braking, display, and sensor setup you prefer. Professional assembly or a final safety check by a qualified bicycle technician is recommended before riding.

Shipping & Delivery

This item ships directly from our fulfillment partner or manufacturer.

Freight charges are calculated at checkout.

Estimated Delivery:
• Processing: 1–2 business days
• Delivery: 5–10 business days depending on location

Oversized or high-value items may require additional handling or scheduled delivery.

Tracking information will be provided once your order ships.

See our Shipping Policy for full details.

Warranty and Returns

Warranty and return eligibility follow RoboSmartDepot’s published policy and the applicable manufacturer warranty terms. Review the store policy pages before purchase for the current terms.

Safety, Compliance, and Important Notes

The Himiway C5 is a motorbike-style electric product and may be subject to different local rules than standard pedal-assist e-bikes. Always check local laws, helmet rules, age restrictions, road access, trail access, registration requirements, and private-property rules before riding. Rider setup, terrain, payload, tire pressure, speed, weather, and battery condition can affect real-world range and performance.
