Himiway D5 2.0 26" Fat Tire Electric Bike - 750W - Top Speed 28 MPH

Product Overview

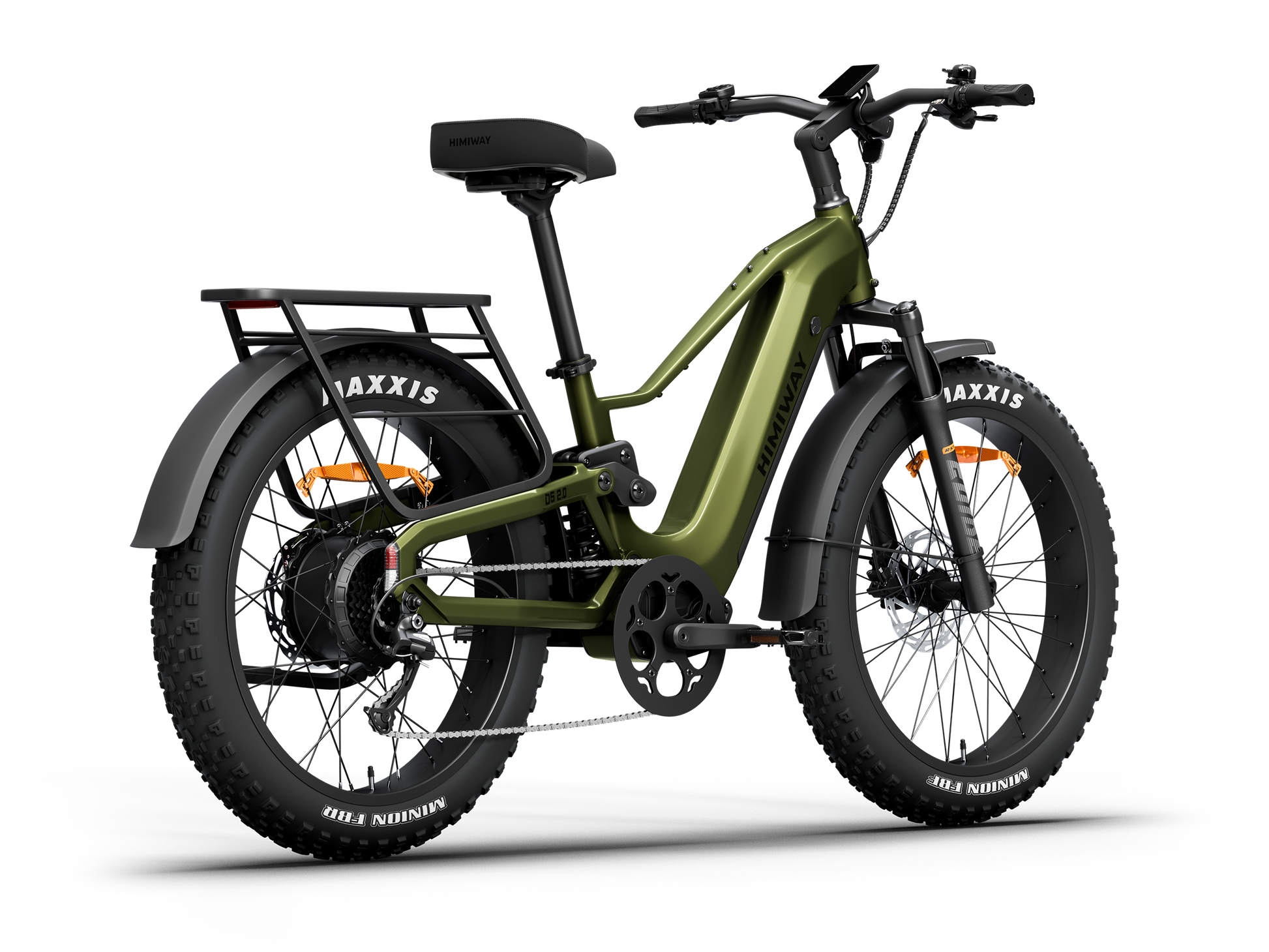

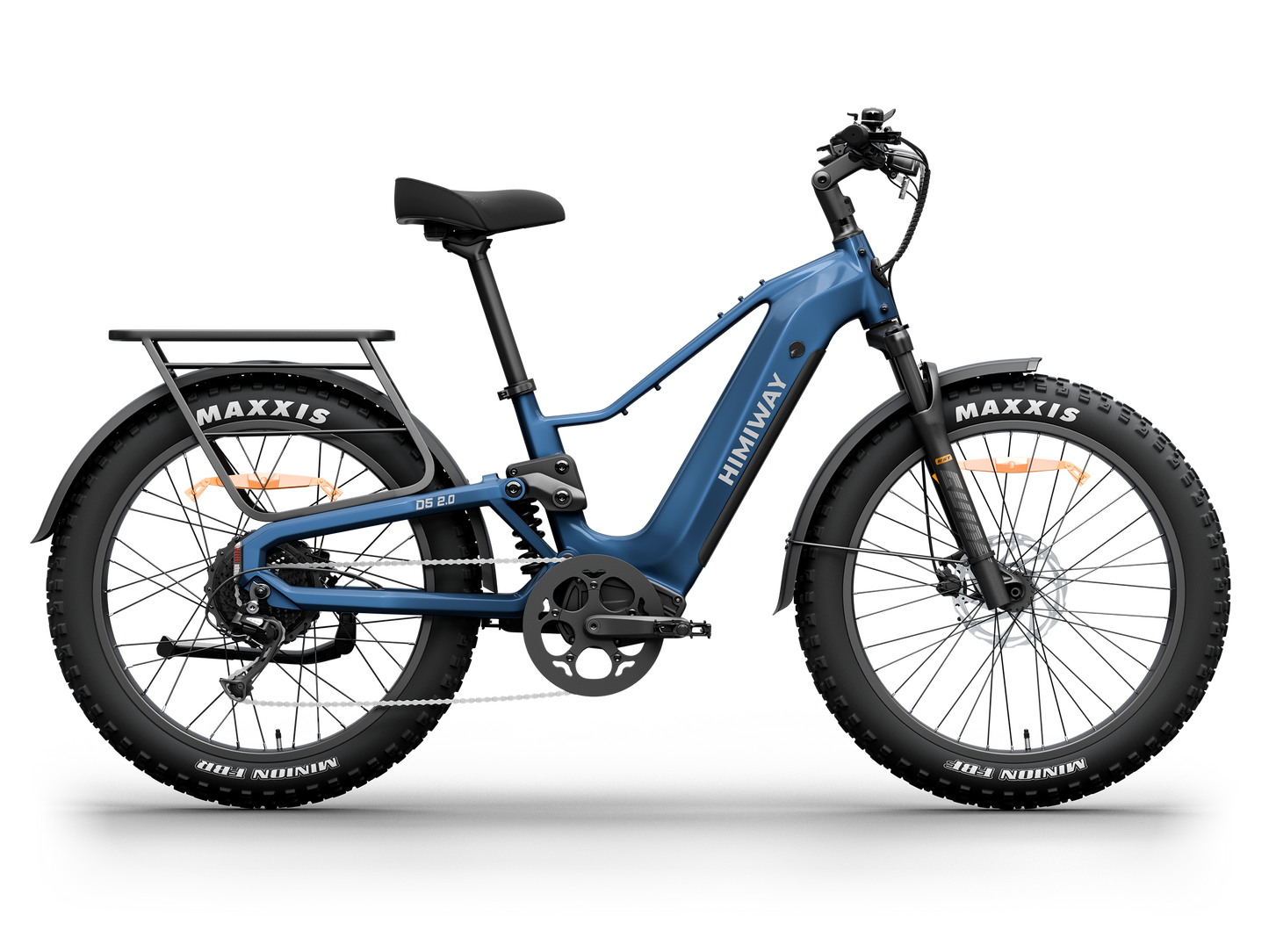

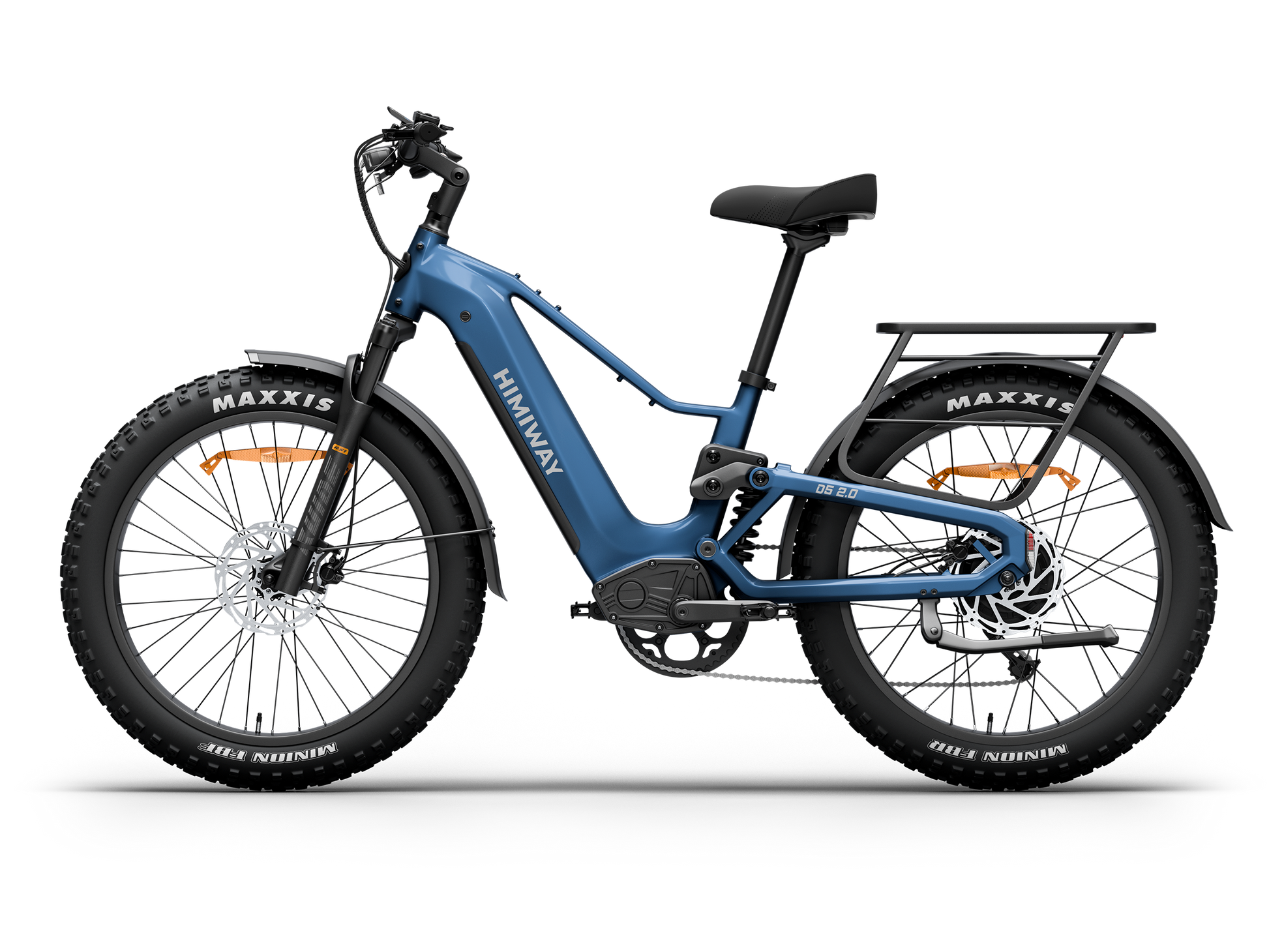

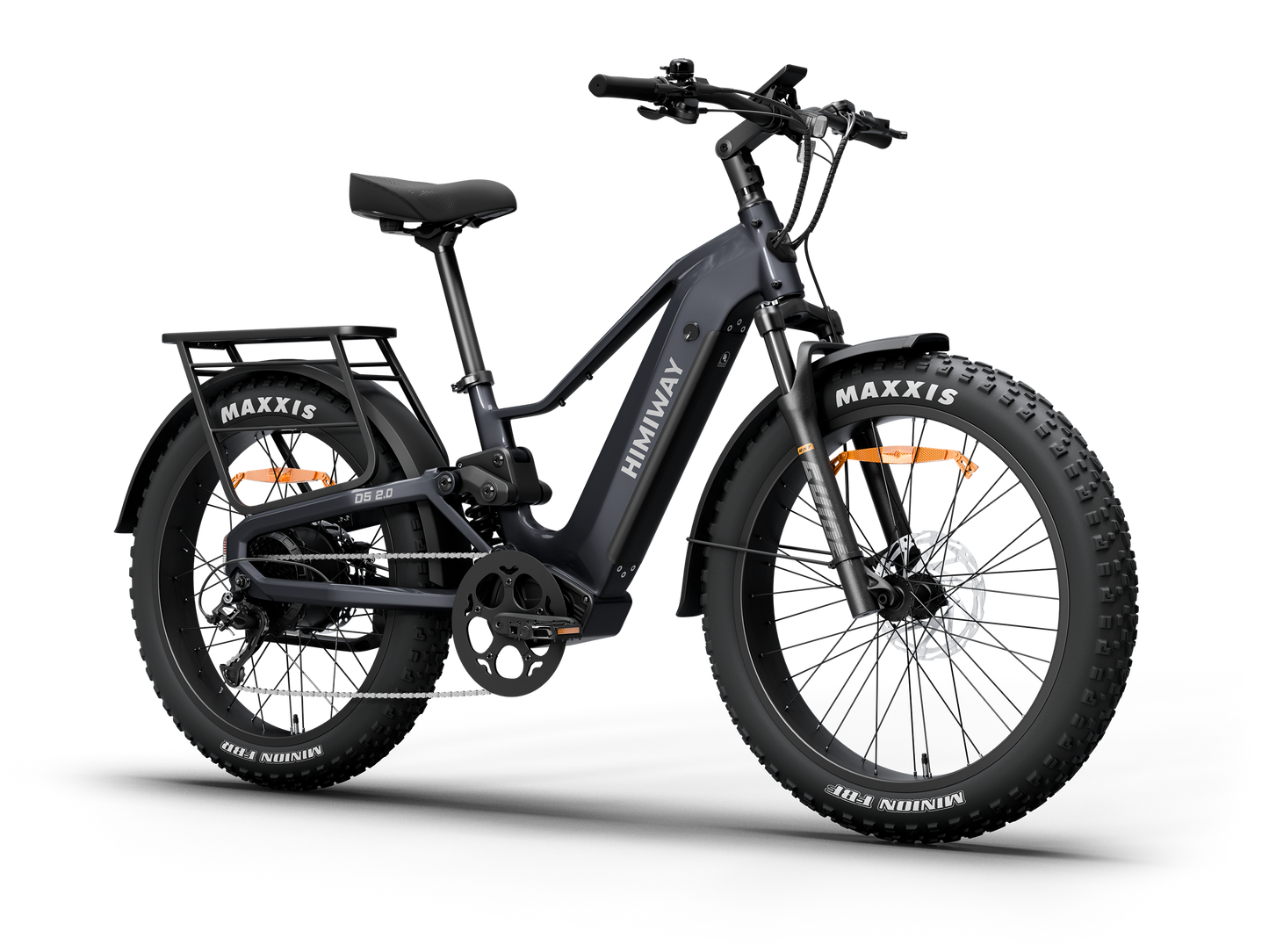

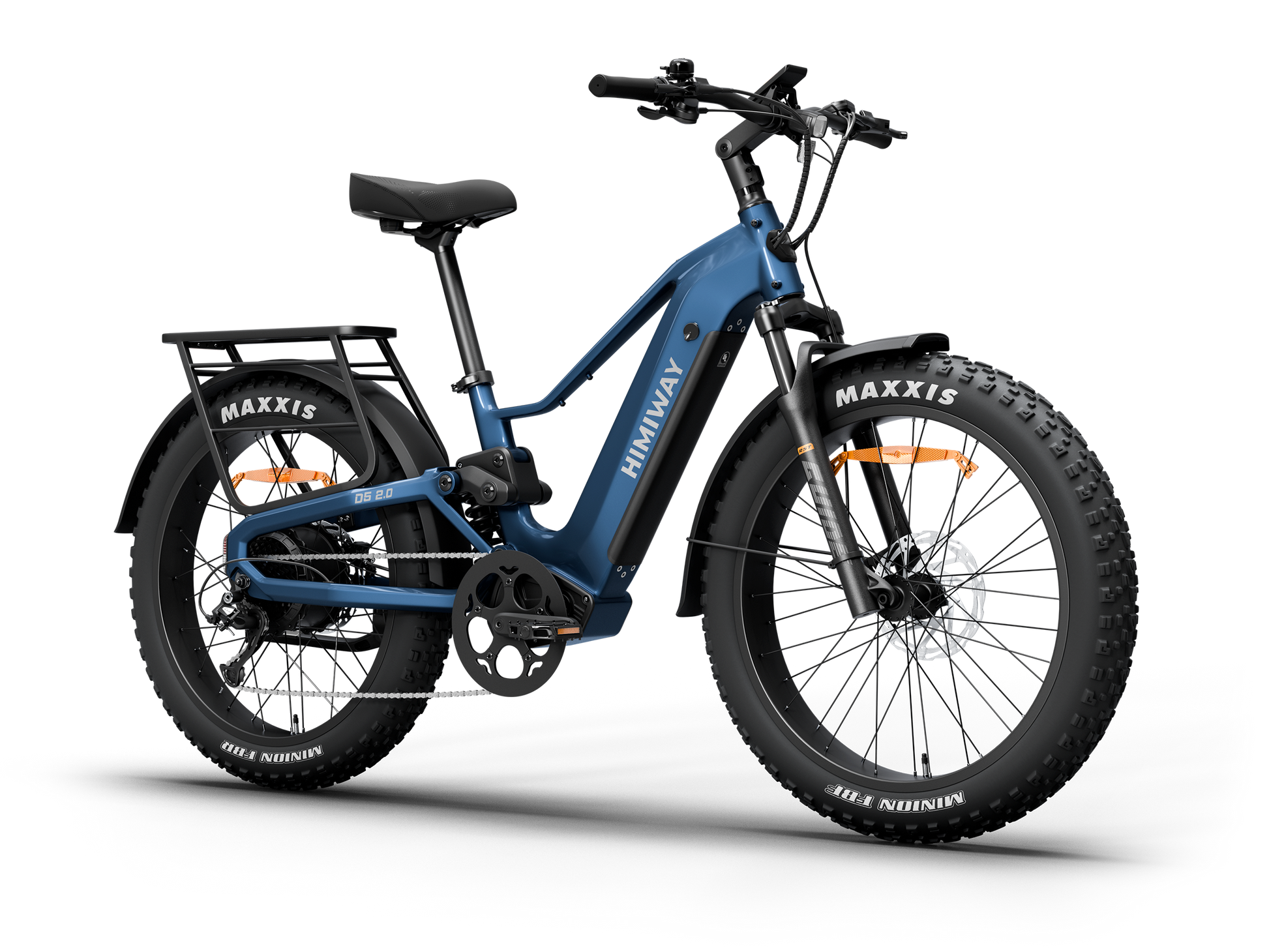

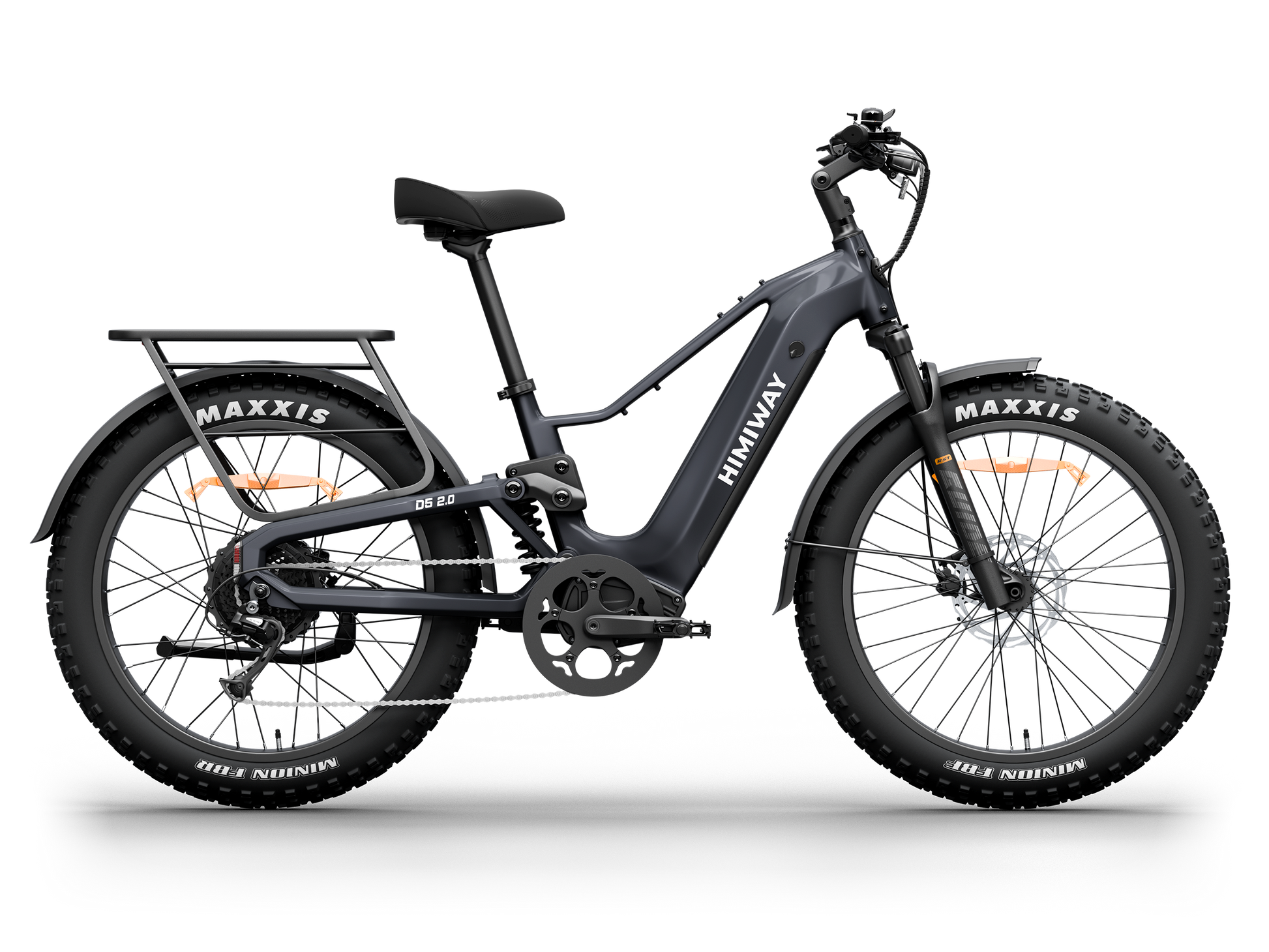

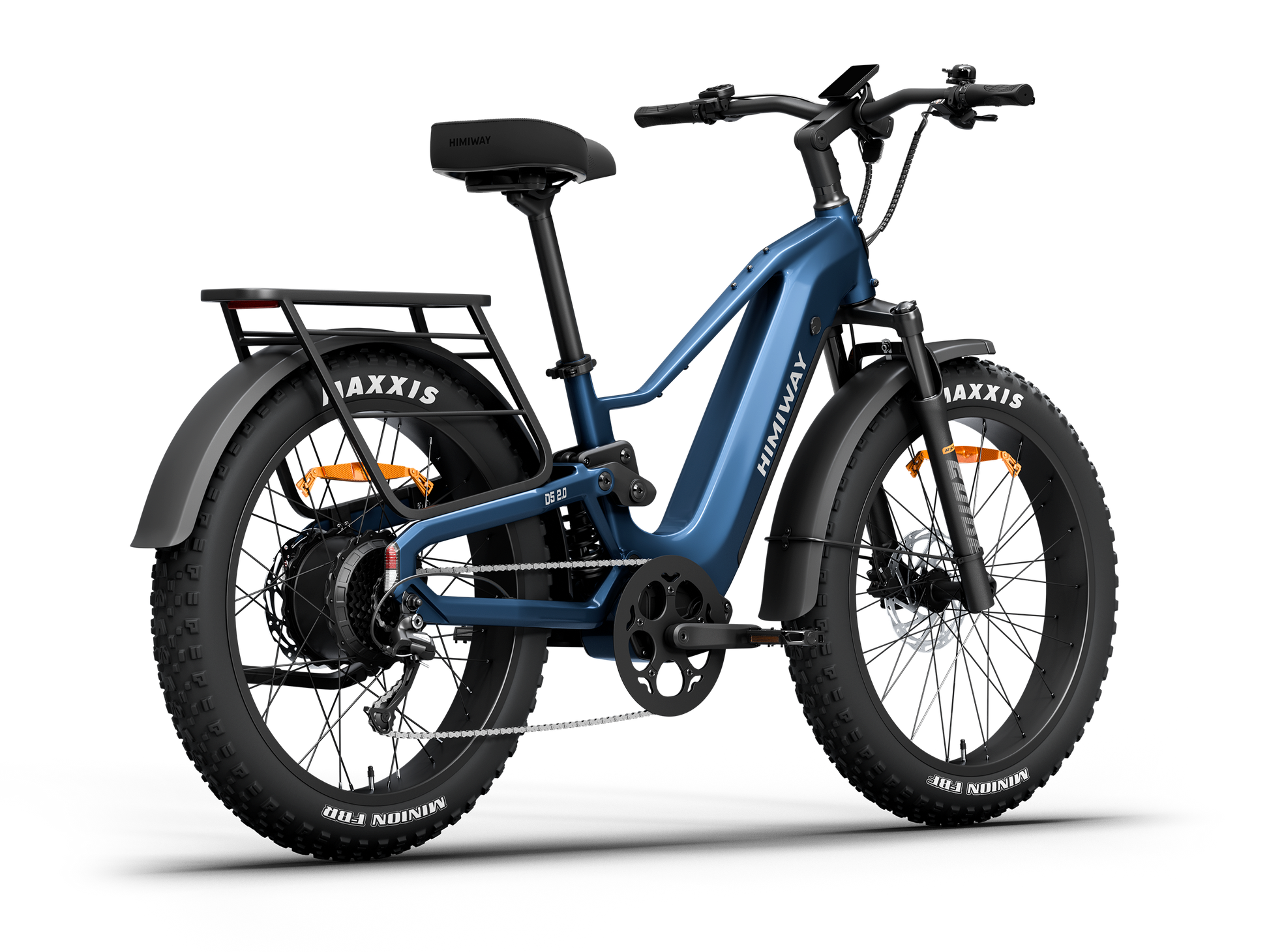

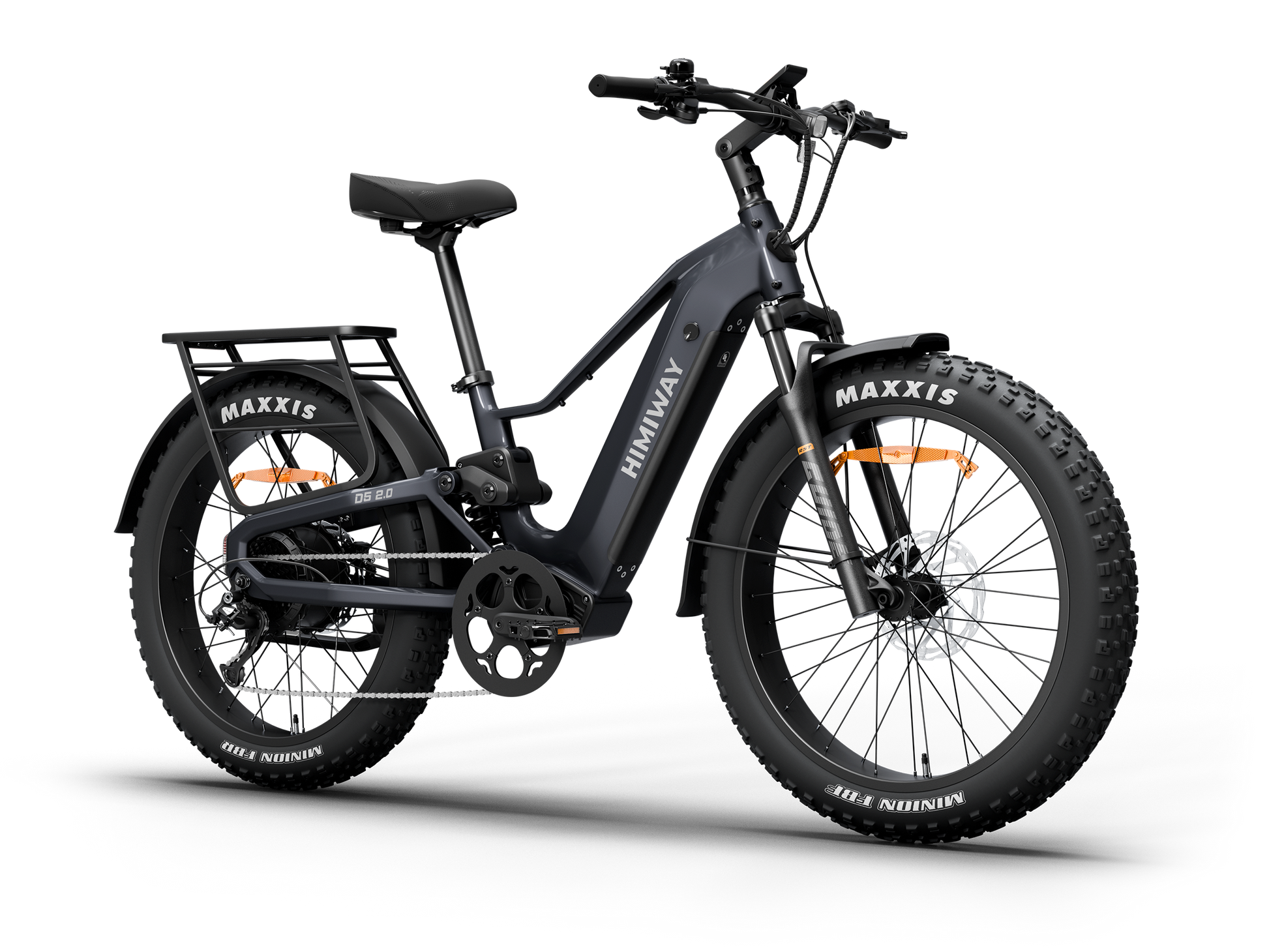

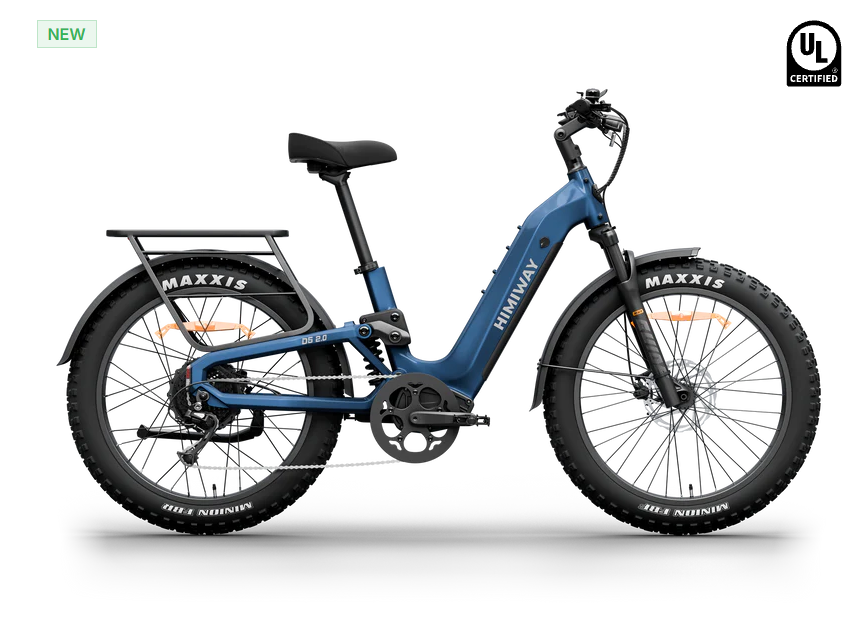

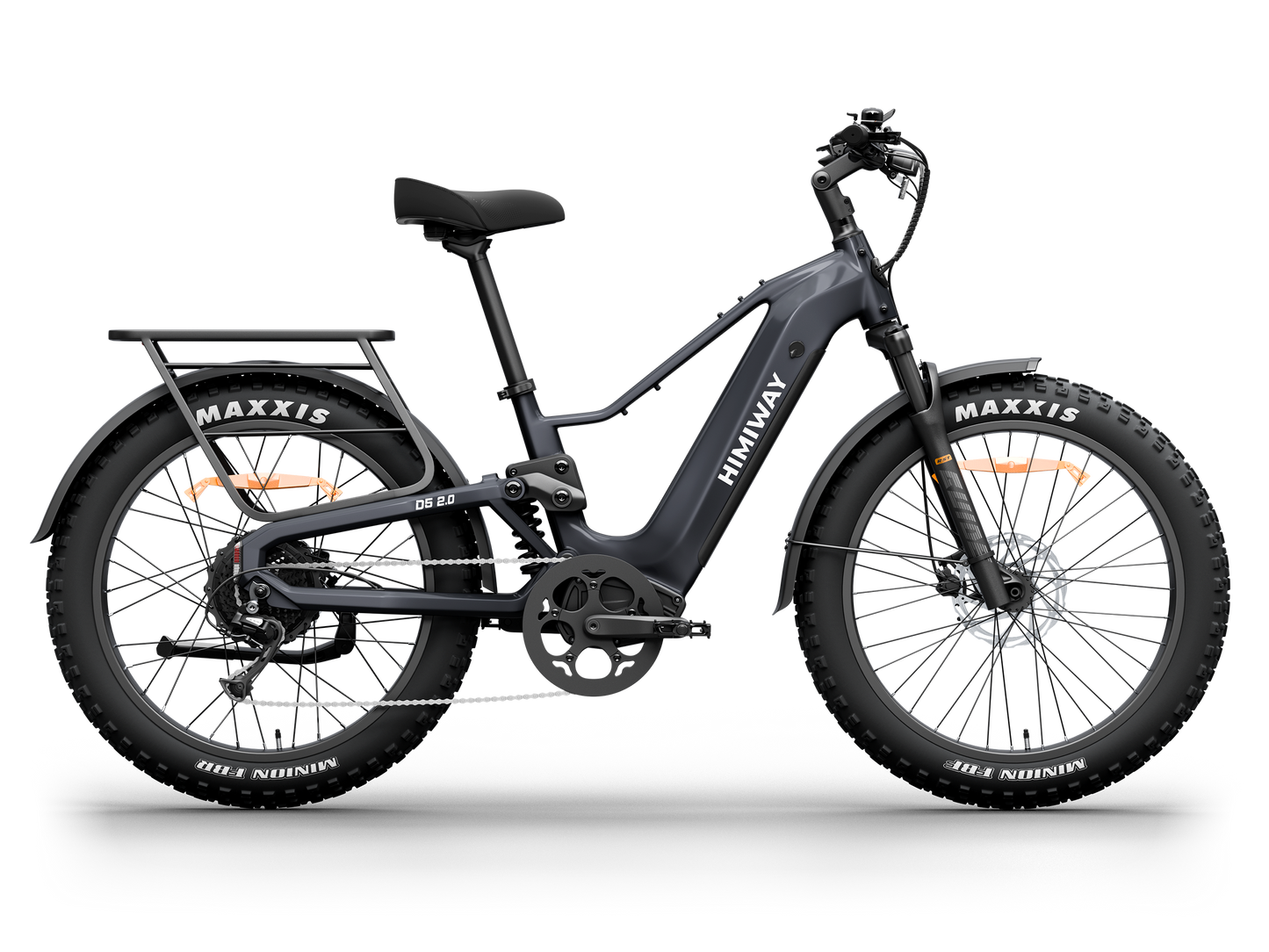

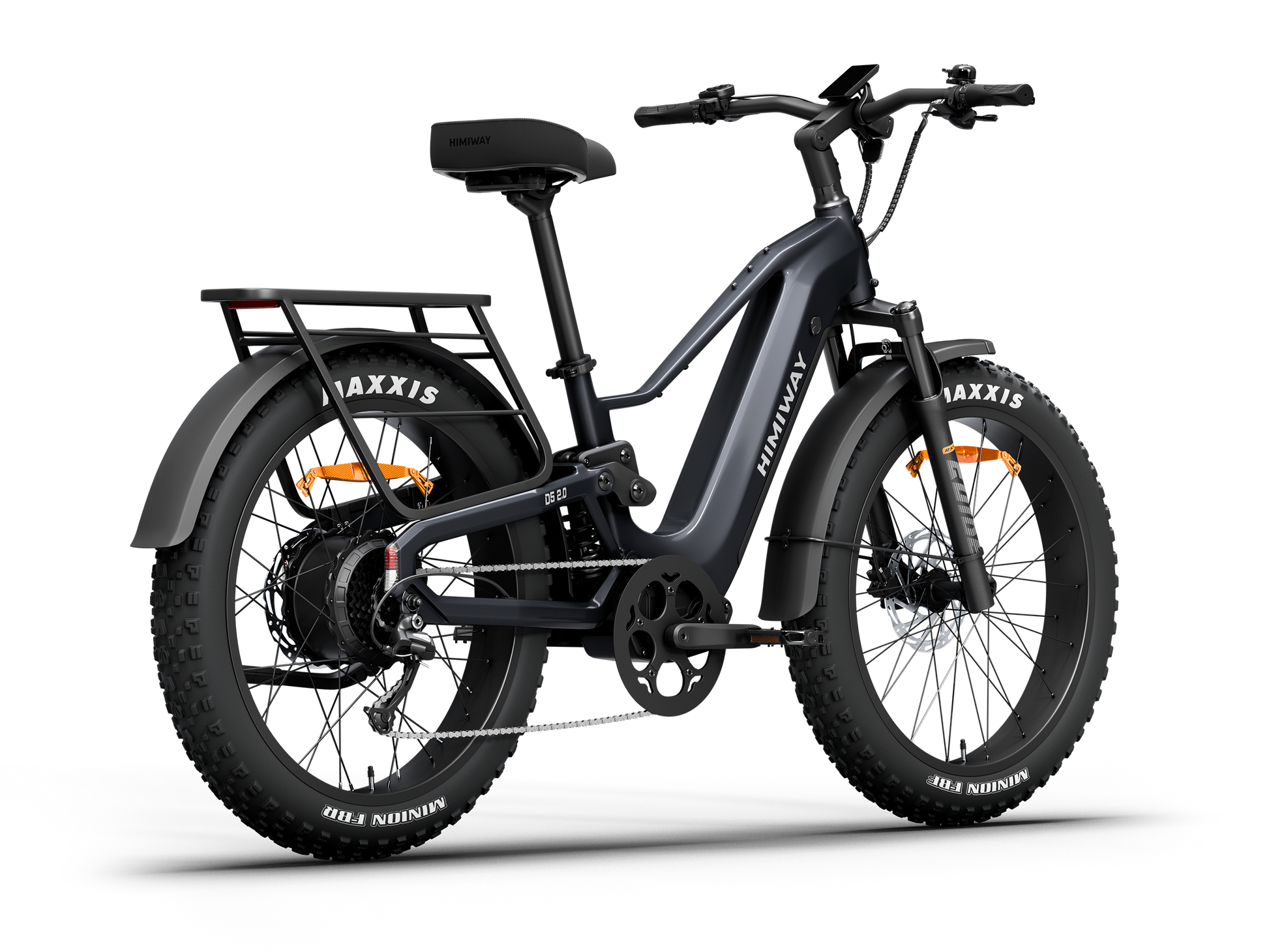

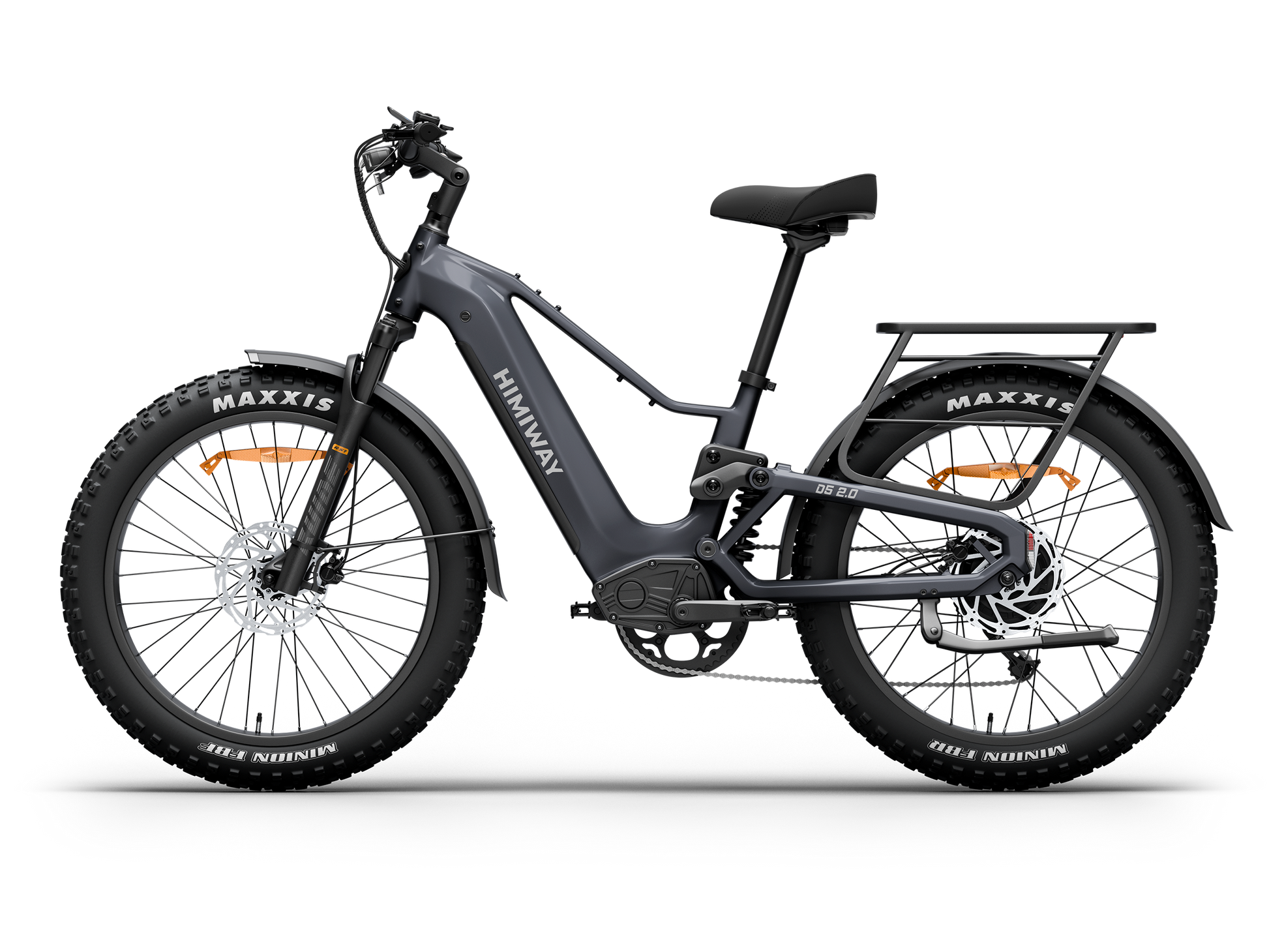

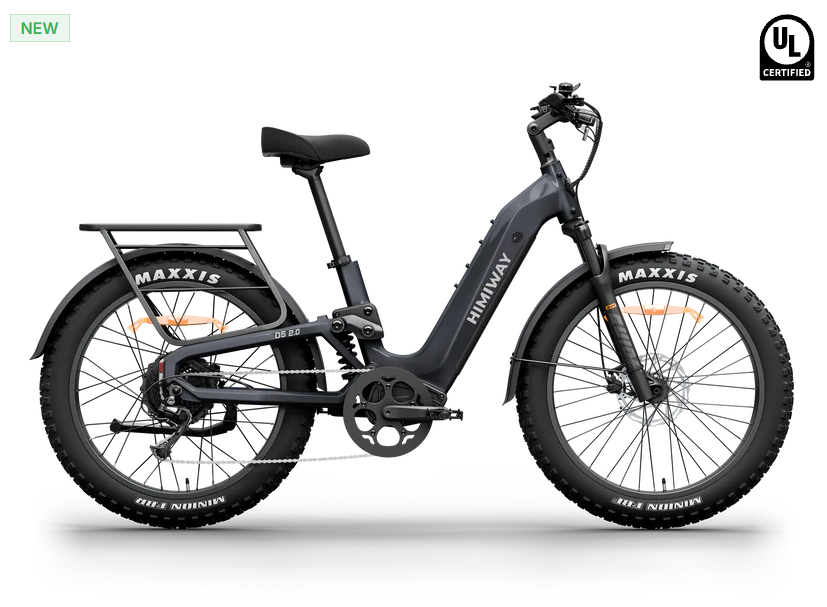

The Himiway D5 2.0 26" is a full-suspension fat tire electric bike with a 750W rear hub motor, 26" x 4.0" tires, and selectable Step-Over or Step-Through frame options. It is built for riders who want a larger all-terrain e-bike with strong traction, full-suspension comfort, cargo utility, and stable handling on pavement, gravel, dirt paths, and mixed-terrain routes.

Key Features

• 750W rear hub motor with 90Nm torque
• 48V 15Ah Samsung/LG battery
• Selected variants may include an additional 20Ah battery pack
• Top Speed 28 MPH when configured for Class 3 use where permitted
• Adjustable Class 1/2/3 settings
• Up to 65+ miles of pedal-assist range depending on terrain, rider setup, and assist level
• Torque / speed sensing switchable system
• HMW Assist System 1.0
• 26" x 4.0" Maxxis fat tires
• Full-suspension frame with RST GUIDE-26 front suspension fork
• Multi-link rear suspension with spring rated at 800 lb
• Tektro E3520 hydraulic disc brakes
• Shimano 8-speed drivetrain
• 3.5" full-color display
• Integrated headlight and rear light with turn signal
• MIK HD compatible rear rack
• 400 lb maximum payload capacity including bike and cargo

Best For / Intended Use

This model is best for riders who want a larger fat tire electric bike for everyday riding, campground use, gravel roads, dirt paths, cargo carrying, and mixed-terrain routes. The Step-Over frame offers a more traditional frame style, while the Step-Through option makes mounting and dismounting easier for everyday use.

What Is Included

• Himiway D5 2.0 26" electric bike
• Rear rack
• Fender kit
• US standard 2.0A smart charger
• 16-in-1 repair tool
• Owner’s manual

Technical Specifications

Motor: 750W rear hub motor
Torque: 90Nm
Battery: 48V 15Ah Samsung/LG battery

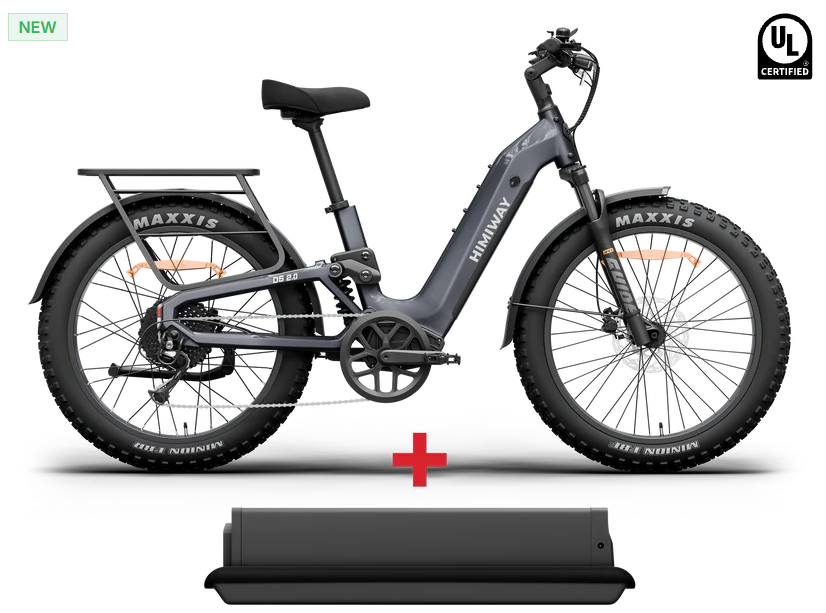

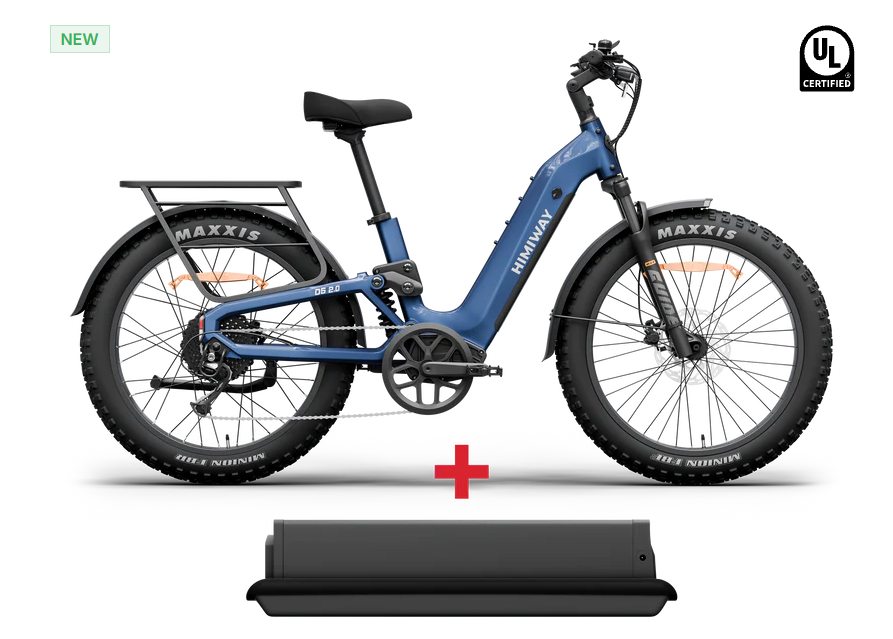

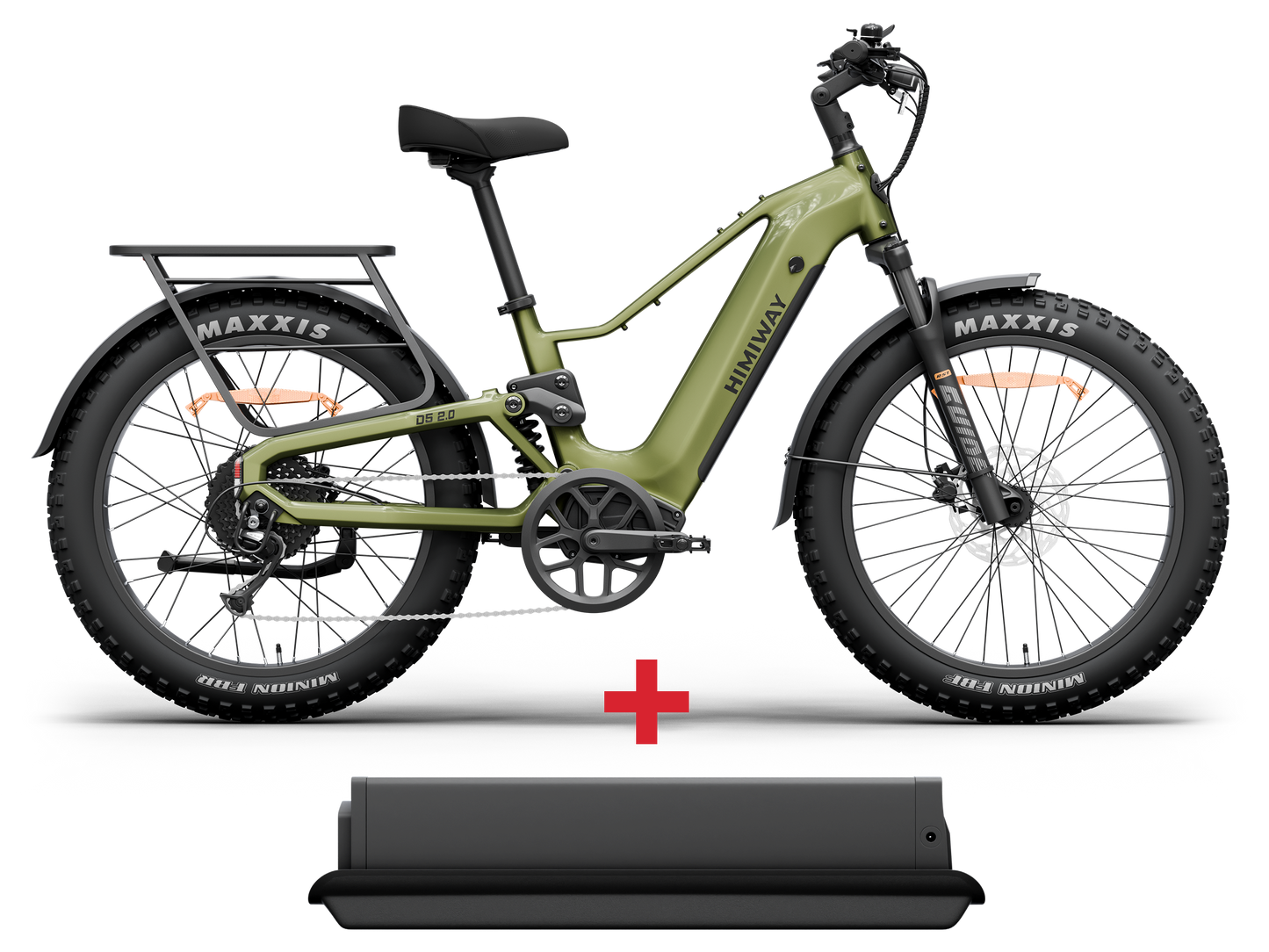

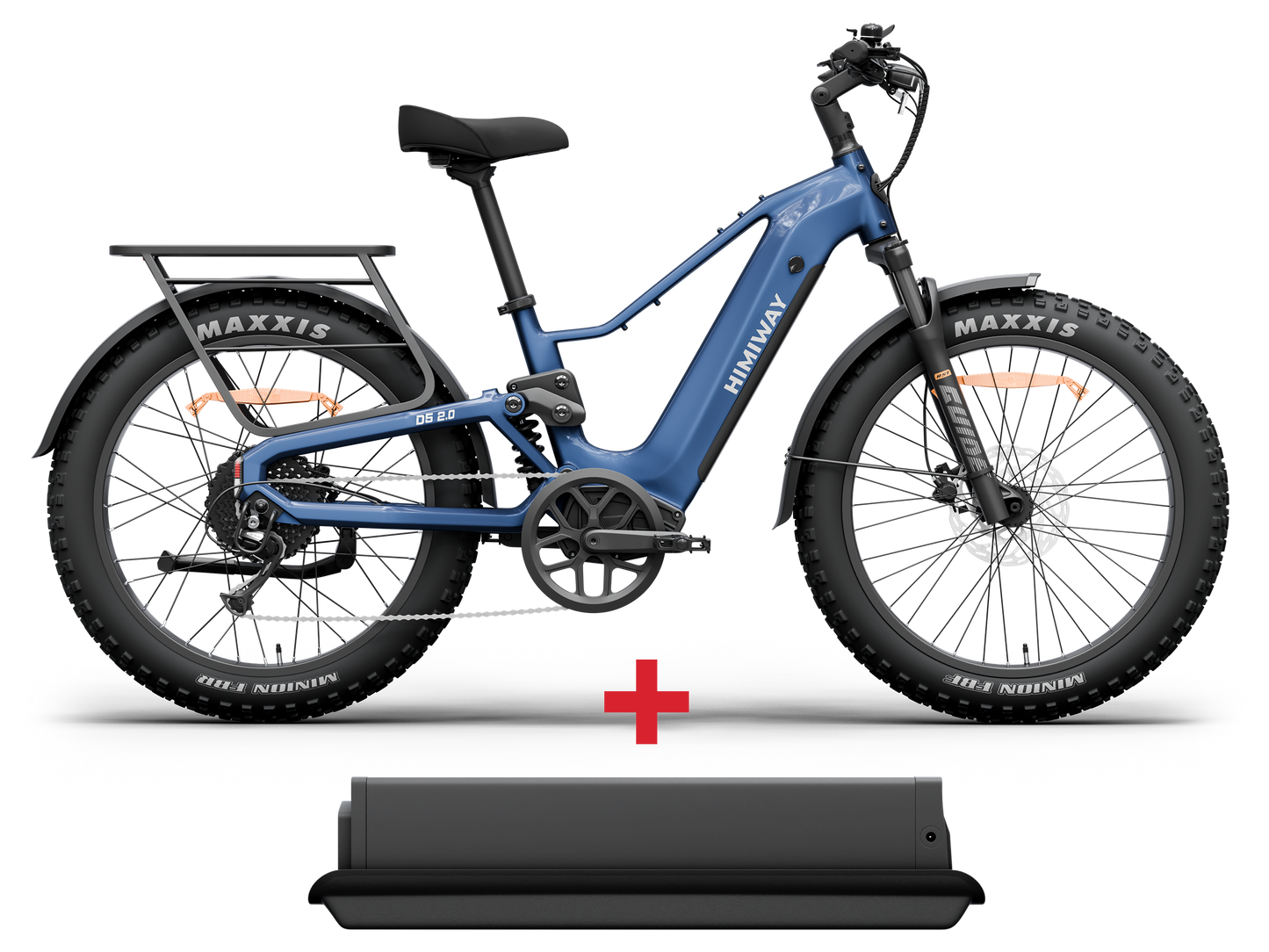

Optional battery package: Selected variants may include an additional 20Ah battery pack
Charger: US standard 2.0A smart charger
Assist system: HMW Assist System 1.0
Sensor: Torque / speed sensing switchable
Throttle: Thumb throttle
Top Speed: 28 MPH when configured for Class 3 use where permitted
Class: 1/2/3 adjustable
Range: Approximately 27–68 miles depending on terrain, payload, assist level, speed, and riding conditions
Frame: Upgraded 6061 aluminum frame
Frame options: Step-Over and Step-Through
Recommended rider height: 5'1"–6'5"
Display: 3.5" full-color display, 320 x 480 resolution
Front fork: RST GUIDE-26 100mm alloy front suspension fork with lockout and adjustment
Rear suspension: Multi-link rear suspension, spring rated at 800 lb
Drivetrain: Shimano 8-speed gear shift system
Chain: KMC chain
Freewheel: KDF-852 13-14-16-18-20-24-28-32T
Crankset: 52T x 170mm
Brakes: Tektro E3520 hydraulic brakes
Brake rotor: 180mm
Tires: 26" x 4.0" fat tires
Spokes: 13 gauge front / 12 gauge rear
Headlight: LED 48V 4W 120 Lux
Taillight: Dropout taillight with integrated turn signal
Stem: 60° adjustable stem
Saddle: DDK soft saddle
Seatpost: 33.9 x 270mm alloy seatpost
Pedals: Alloy pedals with reflectors
Kickstand: Heavy-duty aluminum
Bike weight: 92 lb
Maximum payload capacity: 400 lb including bike and cargo
Rear rack capacity: 60 lb
UL certification: UL 2849

Setup, Fit, Compatibility, and Assembly

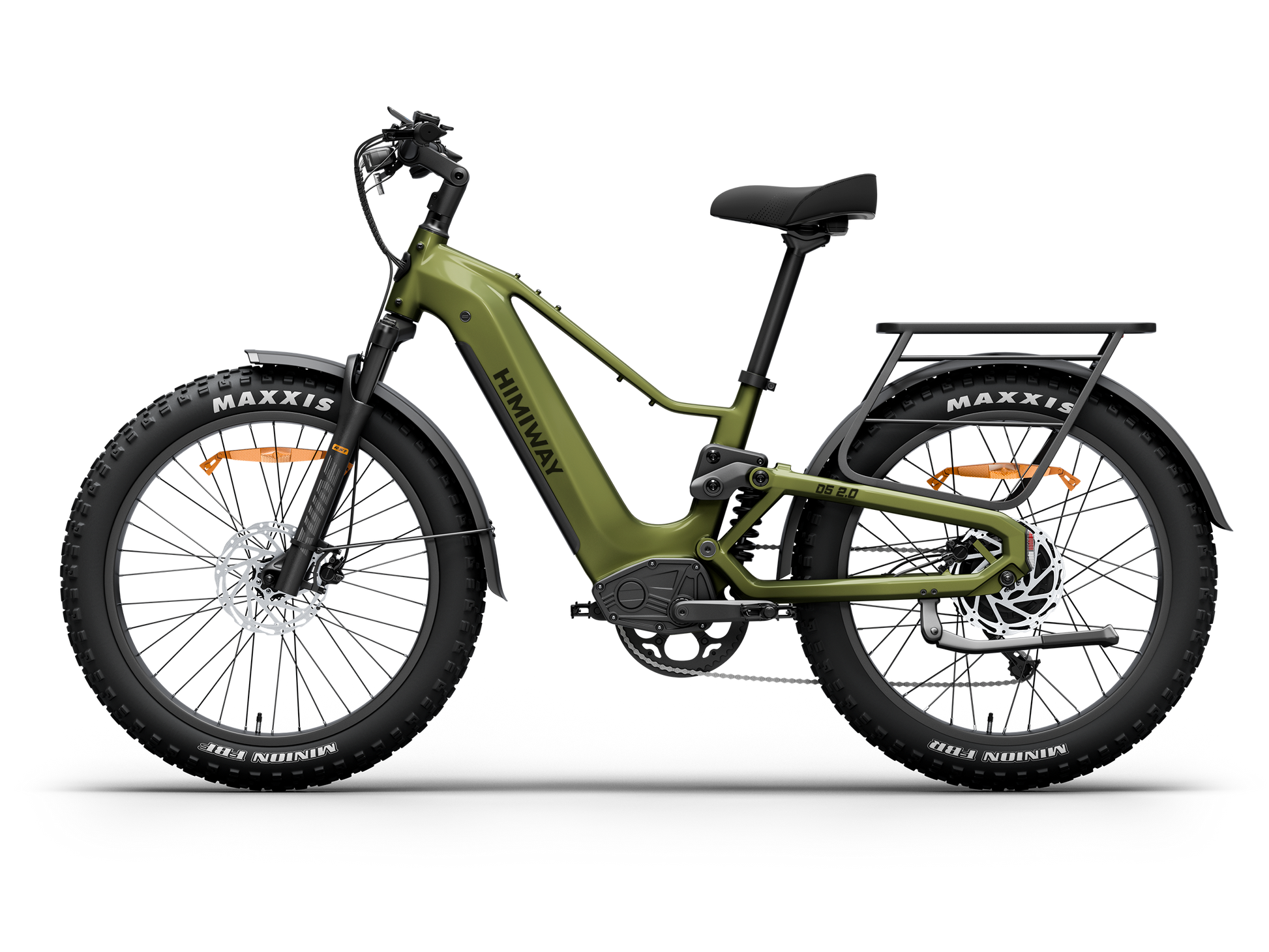

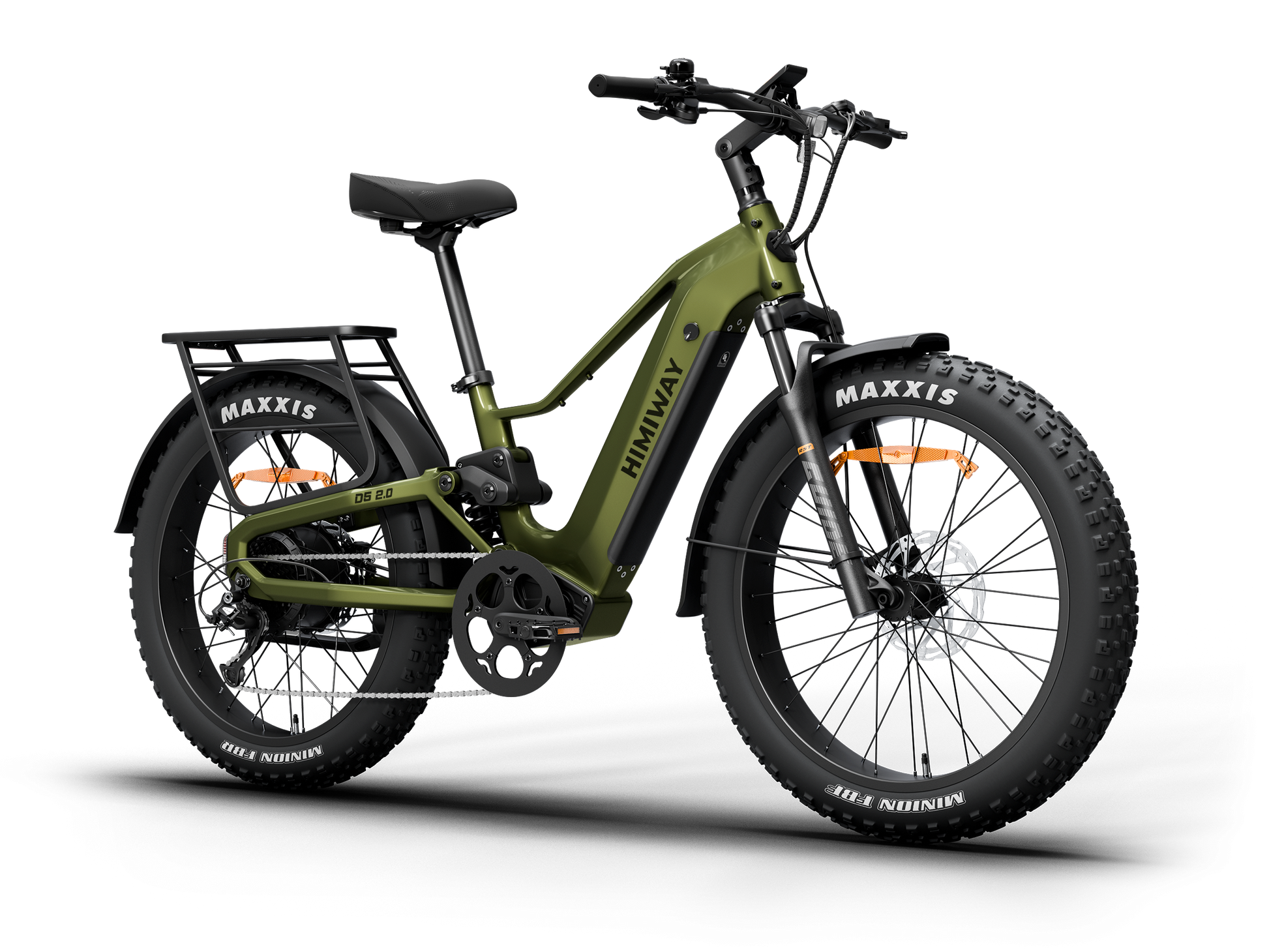

The D5 2.0 26" is listed for riders approximately 5'1" to 6'5". Available variants include Step-Over and Step-Through frame options, 15Ah and 15Ah + 20Ah battery options, and color options including Space Grey, Midnight Blue, and Olive Green. Professional assembly or a final safety check by a qualified bicycle technician is recommended before riding.

Shipping & Delivery

This item ships directly from our fulfillment partner or manufacturer.

Freight charges are calculated at checkout.

Estimated Delivery:
• Processing: 1–2 business days
• Delivery: 5–10 business days depending on location

Oversized or high-value items may require additional handling or scheduled delivery.

Tracking information will be provided once your order ships.

See our Shipping Policy for full details.

Warranty and Returns

Warranty and return eligibility follow RoboSmartDepot’s published policy and the applicable manufacturer warranty terms. Review the store policy pages before purchase for the current terms.

Safety, Compliance, and Important Notes

Always follow local e-bike laws, helmet rules, trail access rules, and speed/class restrictions. The Top Speed 28 MPH setting may not be permitted in every location or riding area. Rider setup, terrain, payload, tire pressure, assist level, weather, cargo load, and battery condition can affect real-world range and speed.
