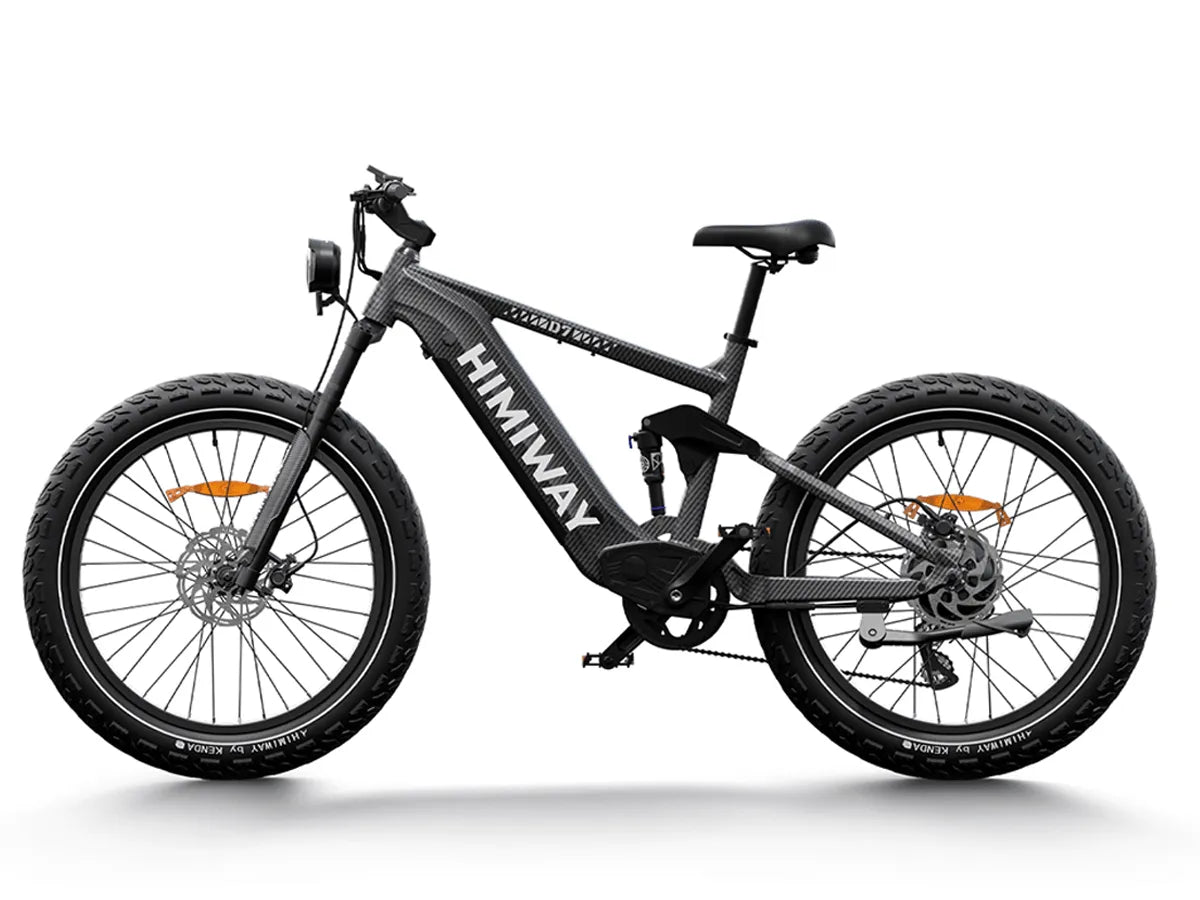

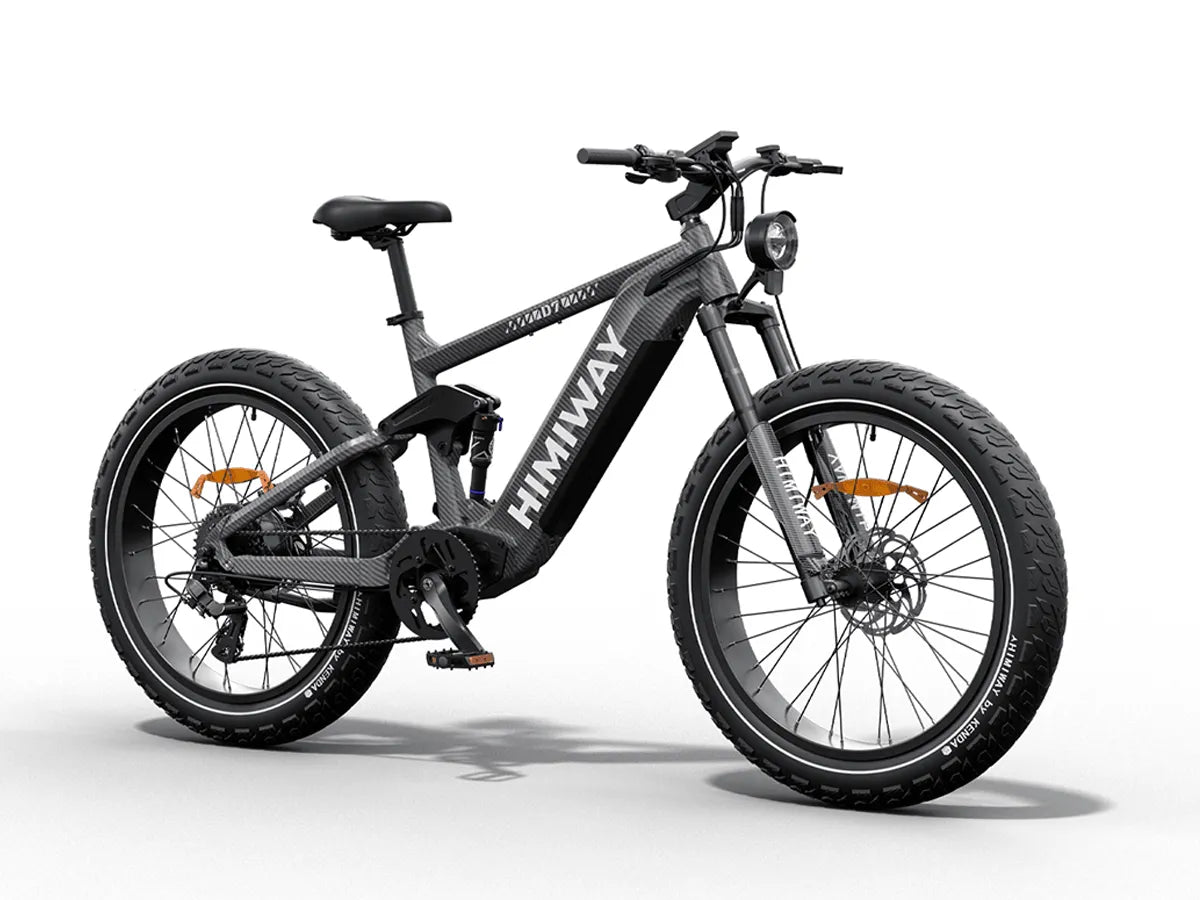

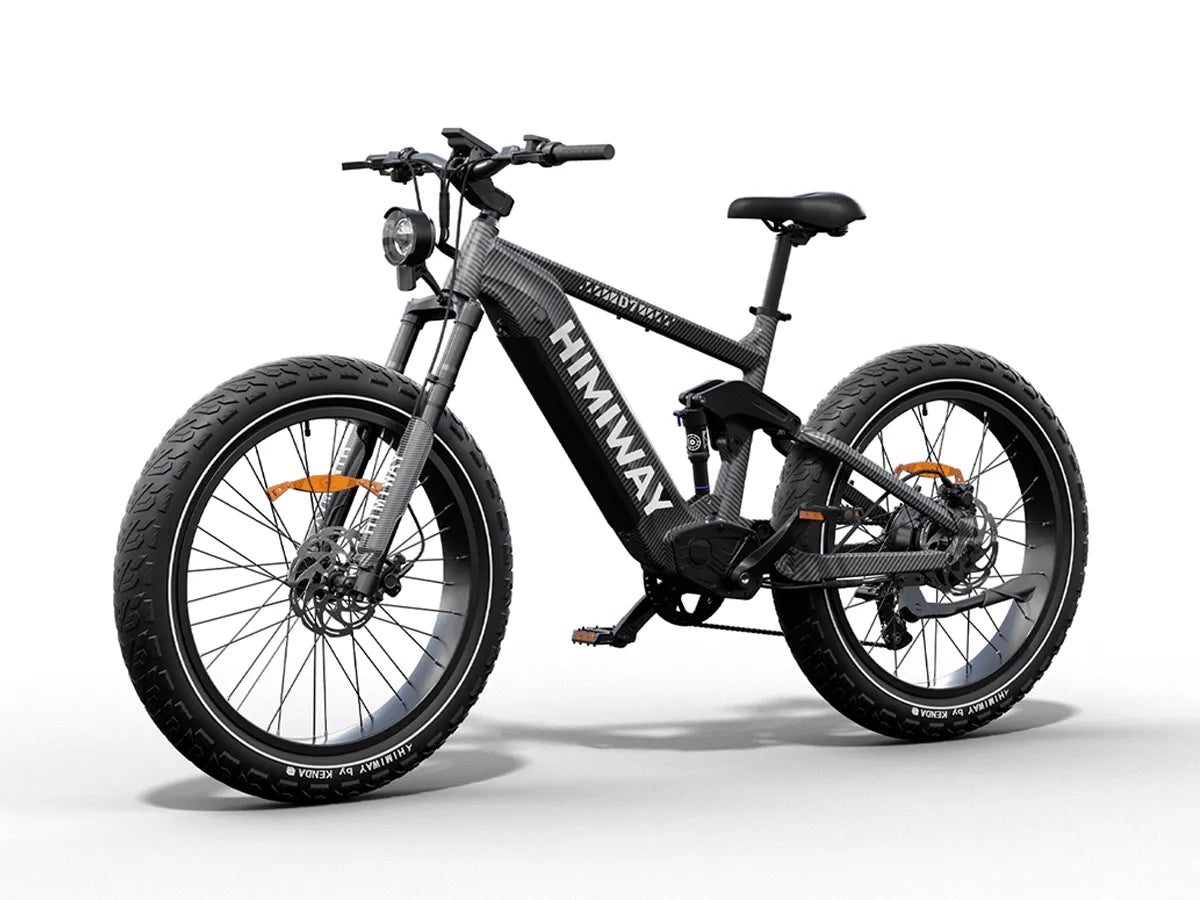

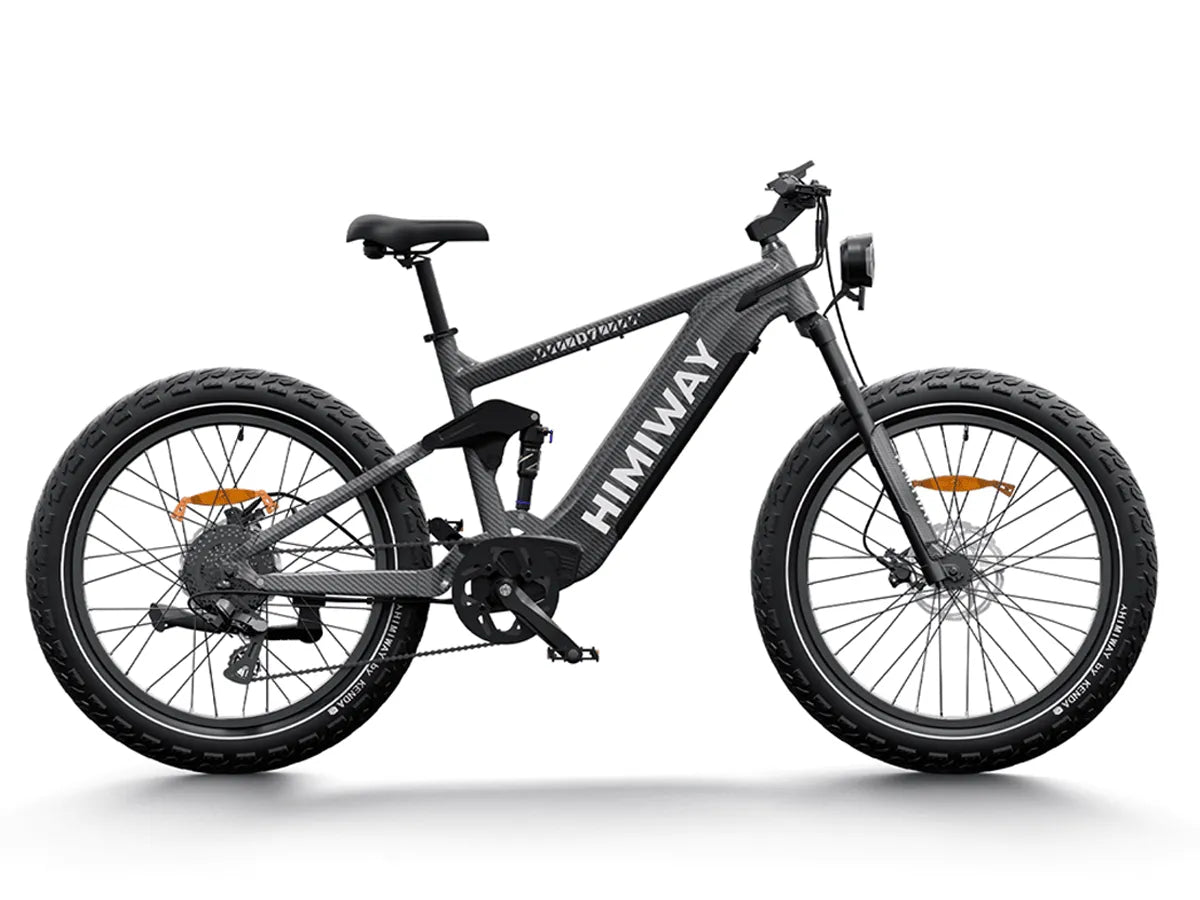

Himiway D7 Electric Bike - 1000W Fat Tire 960Wh - Top Speed 20 MPH

Product Overview

The Himiway D7 is a full-suspension fat tire electric bike built for riders who want high power, long range, and stable handling on varied terrain where e-bikes are permitted. It uses a 1000W rear hub motor, 960Wh Samsung/LG battery, 26" x 4.5" fat tires, hydraulic disc brakes, and front and rear suspension for a controlled ride on pavement, gravel, dirt paths, sand, snow, and uneven surfaces.

Key Features

• 1000W rear hub motor
• 48V 20Ah Samsung/LG lithium battery
• 960Wh battery capacity
• Top Speed 20 MPH
• 60–80 mile range depending on rider setup and conditions
• 0–5 level pedal assist
• Thumb throttle
• Full suspension with 120mm inverted front fork
• DNM AO-38RC rear shock
• 26" x 4.5" fat tires
• Shimano Acera 8-speed drivetrain
• Tektro hydraulic disc brakes
• 203mm front rotor and 180mm rear rotor
• LCD display with USB charging
• 48V LED headlight
• Heavy-duty aluminum kickstand
• 400 lb maximum system weight

Best For / Intended Use

This model is best for riders who want a powerful fat tire electric bike for varied terrain, long rides, outdoor recreation, and mixed-surface routes where e-bikes are allowed. The full suspension, wide tires, high-capacity battery, and hydraulic brakes make it a strong fit for riders who want stability, comfort, and control beyond a standard commuter e-bike.

What Is Included

• Himiway D7 electric bike
• US standard 3.0A smart charger
• Owner’s manual

Technical Specifications

Motor: 1000W rear hub motor
Battery: 48V 20Ah Samsung/LG lithium battery
Battery capacity: 960Wh
Range: 60–80 miles depending on rider setup and conditions
Top Speed: 20 MPH
Pedal assist: 0–5 level pedal assist
Throttle: Thumb throttle
Display: LCD display with USB charging
Frame: 6061 alloy frame with 197 x 12mm rear axle
Headset: Semi-integrated NECO H383AEM
Fork: DASH-AIR-20 inverted fork, 120mm travel
Rear shock: DNM AO-38RC rear shock, 190 x 45mm
Rear derailleur: Shimano Acera RD-M3020-8
Shifter: Shimano Acera 8-speed
Crankset: EB-01-242A-S1, 170mm
Chainring: 40T
Chain: KMC Z8 122L
Cassette: Shimano CS-HG41 8-speed, 11–34T
Brakes: Tektro HD-E730 hydraulic disc brakes
Brake rotors: 203mm front / 180mm rear
Handlebar: Promax HB-3188, 780mm x 31.8mm
Stem: XF-827 alloy, 50mm extension
Seatpost: SP-2003, 30.9 x 350mm
Saddle: Selle Royal A054UE
Tires: Kenda x Himiway 26" x 4.5" fat tires
Headlight: 48V LED light
Kickstand: Heavy-duty aluminum kickstand
Charger: US standard 3.0A smart charger
Bike weight: 88.6 lb
Maximum system weight: 400 lb

Dimensions

Total length: 78.7 in
Handlebar height: 42.7 in
Wheelbase: 52.6 in
Minimum seat height: 20.9 in
Seat adjustment height: 9.5 in
Chain stay length: 20 in
Frame stack: 24.6 in
Effective top tube: 24.4 in
Wheel diameter: 28.7 in
Head tube length: 5.5 in
Handlebar length: 30.7 in
Frame reach: 17.8 in
Head angle: 65°

Setup, Fit, Compatibility, and Assembly

The Himiway D7 is listed for riders approximately 5'3" to 6'5". It is available as a single black model with a 1000W motor option. Professional assembly or a final safety check by a qualified bicycle technician is recommended before riding.

Shipping & Delivery

This item ships directly from our fulfillment partner or manufacturer.

Freight charges are calculated at checkout.

Estimated Delivery:
• Processing: 1–2 business days
• Delivery: 5–10 business days depending on location

Oversized or high-value items may require additional handling or scheduled delivery.

Tracking information will be provided once your order ships.

See our Shipping Policy for full details.

Warranty and Returns

Warranty and return eligibility follow RoboSmartDepot’s published policy and the applicable manufacturer warranty terms. Review the store policy pages before purchase for the current terms.

Safety, Compliance, and Important Notes

Always follow local e-bike laws, helmet rules, road access rules, trail access rules, and speed/class restrictions. Rider setup, terrain, payload, tire pressure, assist level, weather, cargo load, and battery condition can affect real-world range and performance.
